Magnitude |
3.1 |
| Date & Time (UTC) | 2018-04-28 23:31:14.4 |
| Date & Time (Local) | 1397/2/9 04:01:14.4 |

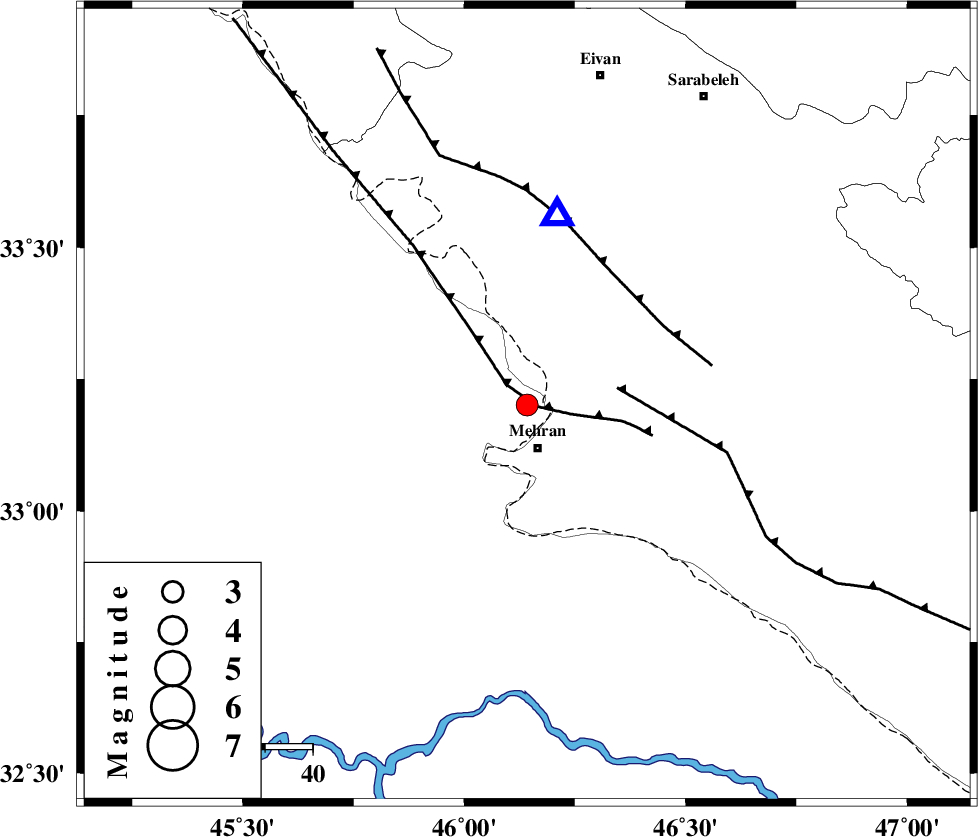

| Location | Lat:33.201 Lon: 46.142 |
| Region | Iraq, 9 km of Mehran |
Nearest Cities |
|
| 9 km North of Mehran, Ilam Province | |
| 30 km South of Salehabad, Ilam Province | |
| 31 km South West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 39 km West of Gonbad-e pirmohammad, Ilam Province | |
| 40 km South West of Mehr, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 2 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 19 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 33 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | 6.5 km |
| Error in Longitude | 9.1 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 130898 | IIEES | ILBA | E | 1323.3 | 0.64 | 2018-04-28 23:31:37 | 2018-04-29 05:51:00 | n |
| 130899 | IIEES | ILBA | N | 2717.5 | 0.69 | 2018-04-28 23:31:41 | 2018-04-29 05:51:00 | n |
| 130900 | IIEES | SRSL | N | 45.4 | 0.68 | 2018-04-28 23:33:09 | 2018-04-29 05:51:00 | n |
| 130901 | IIEES | ASAO | N | 23 | 0.53 | 2018-04-28 23:33:20 | 2018-04-29 05:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-04-28 23:31:22 | -0.34 | y | 47.4 | 7 | |
| IIEES | SNGE | Z | Pn | E | 2018-04-28 23:31:51 | 0.03 | y | 237 | 28 | |
| IIEES | SNGE | N | Sg | E | 2018-04-28 23:32:21 | 0.01 | y | 237 | 28 | |
| IIEES | SRSL | Z | Pn | E | 2018-04-28 23:32:04 | 0.1 | y | 340 | 349 | |
| IIEES | SRSL | N | S | E | 2018-04-28 23:32:41 | -0.07 | y | 340 | 349 | |
| IIEES | KHMZ | Z | Pn | E | 2018-04-28 23:32:06 | -0.49 | y | 360 | 79 | |
| IIEES | ASAO | Z | Pn | E | 2018-04-28 23:32:11 | 0.59 | y | 389 | 66 | |
| IIEES | ZNJK | Z | Pn | E | 2018-04-28 23:32:19 | 0.79 | y | 450 | 30 | |
| IIEES | CHTH | Z | Pn | E | 2018-04-28 23:32:29 | -0.6 | y | 547 | 55 |
