Magnitude |
3.1 |
| Date & Time (UTC) | 2018-04-28 22:28:16.7 |
| Date & Time (Local) | 1397/2/9 02:58:16.7 |

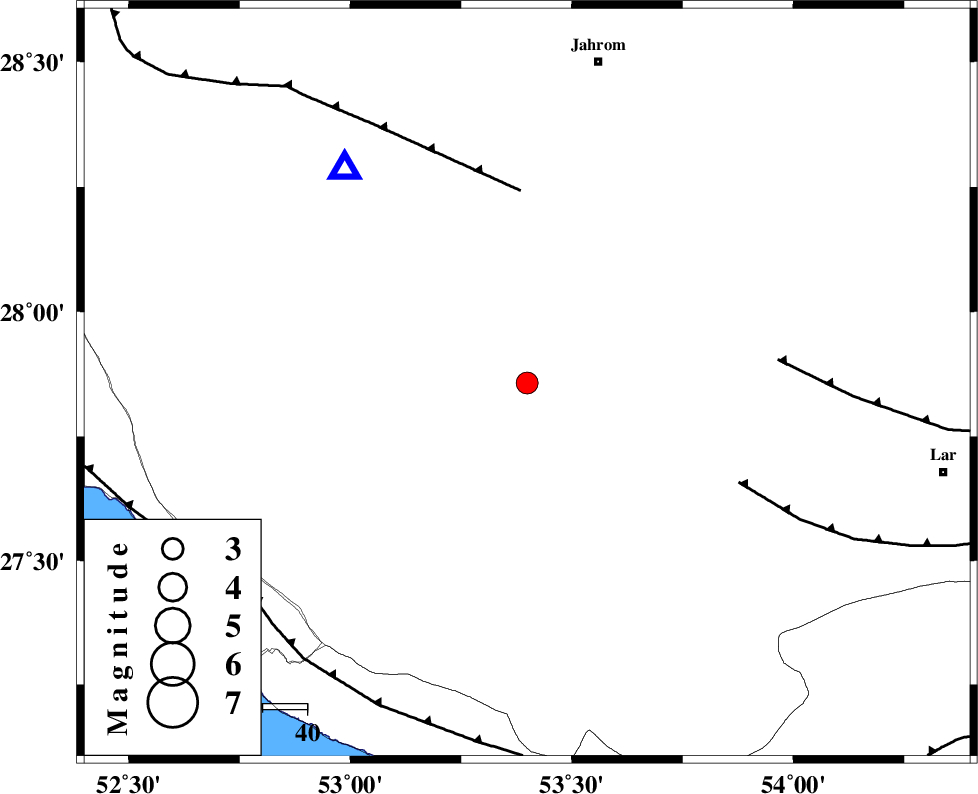

| Location | Lat:27.857 Lon: 53.399 |
| Region | Fars Province, 63 km North-East of Lamerd |
Nearest Cities |
|
| 3 km of Khonj, Fars Province | |
| 27 km North West of Ard, Fars Province | |
| 29 km North West of Fishur, Fars Province | |
| 32 km North West of Fedagh, Fars Province | |
| 39 km South West of Balafan, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 43 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 52 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 56 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 5.1 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 130954 | IIEES | AHRM | N | 93 | 0.79 | 2018-04-28 22:29:43 | 2018-04-29 07:06:00 | n |
| 130955 | IIEES | BNDS | E | 68 | 0.34 | 2018-04-28 22:29:41 | 2018-04-29 07:06:00 | n |
| 130956 | IIEES | BNDS | N | 79.9 | 0.8 | 2018-04-28 22:29:46 | 2018-04-29 07:06:00 | n |
| 130957 | IIEES | KRBR | E | 26.7 | 0.89 | 2018-04-28 22:30:15 | 2018-04-29 07:06:00 | n |
| 130958 | IIEES | KRBR | N | 35.7 | 0.16 | 2018-04-28 22:30:16 | 2018-04-29 07:06:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2018-04-28 22:28:27 | 0.1 | y | 62.4 | 320 | |
| IIEES | AHRM | Z | Pn | E | 2018-04-28 22:28:52 | -0.21 | y | 234 | 299 | |
| IIEES | AHRM | N | Sg | E | 2018-04-28 22:29:22 | 0 | y | 234 | 299 | |
| IIEES | BNDS | Z | Pn | E | 2018-04-28 22:28:58 | 0.15 | y | 278 | 100 | |
| IIEES | KRBR | Z | Pn | E | 2018-04-28 22:29:14 | 0.04 | y | 404 | 54 | |
| IIEES | YZKH | Z | Pn | E | 2018-04-28 22:29:28 | 0.16 | y | 516 | 13 | |
| IIEES | BSRN | Z | Pn | E | 2018-04-28 22:29:53 | -0.04 | y | 716 | 49 | |
| IIEES | TABS | Z | Pn | E | 2018-04-28 22:29:51 | -4.11 | n | 4 | 734 | 28 |
| IIEES | SHRT | Z | Pn | E | 2018-04-28 22:30:17 | -0.61 | y | 920 | 44 |
