Magnitude |
3.1 |
| Date & Time (UTC) | 2018-05-12 17:11:33.3 |
| Date & Time (Local) | 1397/2/22 21:41:33.3 |

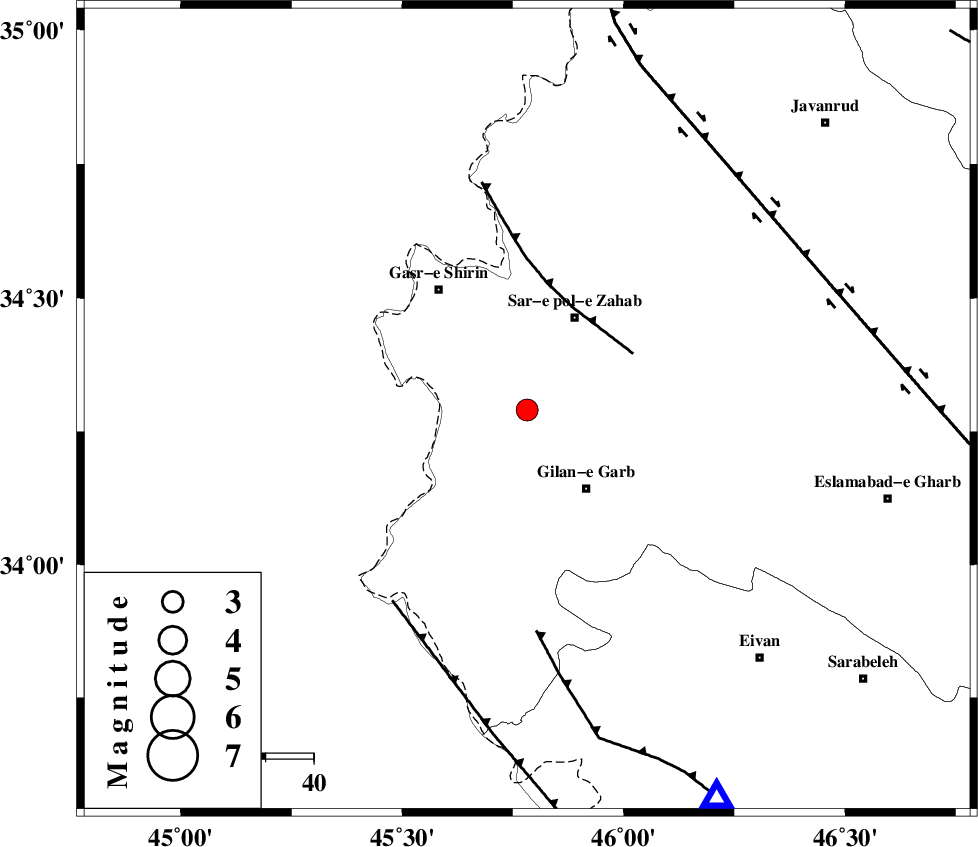

| Location | Lat:34.29 Lon: 45.782 |
| Region | Kermanshah Province, 20 km North-West of Gilan-E-Gharb |
Nearest Cities |
|
| 8 km of Chub baghan, Kermanshah Province | |
| 18 km South West of Tarkveys, Kermanshah Province | |
| 20 km North West of Gilan-E-Gharb, Kermanshah Province | |
| 22 km South West of Sar-e pol-e zahab, Kermanshah Province | |
| 22 km South of Qareh belagh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 23 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 46 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 49 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 131426 | IIEES | ILBA | E | 868.7 | 0.53 | 2018-05-12 17:12:11 | 2018-05-13 05:19:00 | n |
| 131427 | IIEES | ILBA | N | 823.8 | 0.74 | 2018-05-12 17:12:11 | 2018-05-13 05:19:00 | n |
| 131428 | IIEES | SNGE | E | 153.2 | 0.41 | 2018-05-12 17:12:27 | 2018-05-13 05:19:00 | n |
| 131429 | IIEES | SNGE | N | 163.9 | 0.7 | 2018-05-12 17:12:28 | 2018-05-13 05:19:00 | n |
| 131430 | IIEES | SRSL | E | 315.6 | 0.47 | 2018-05-12 17:12:36 | 2018-05-13 05:19:00 | n |
| 131431 | IIEES | SRSL | N | 344.9 | 0.41 | 2018-05-12 17:12:39 | 2018-05-13 05:19:00 | n |
| 131432 | IIEES | ASAO | E | 12.8 | 0.41 | 2018-05-12 17:13:36 | 2018-05-13 05:19:00 | n |
| 131433 | IIEES | KHMZ | E | 12.5 | 0.52 | 2018-05-12 17:13:43 | 2018-05-13 05:19:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-05-12 17:11:48 | 0.38 | y | 83.6 | 152 | |
| IIEES | SNGE | Z | Pg | E | 2018-05-12 17:12:00 | -0.39 | y | 169 | 58 | |
| IIEES | SNGE | N | Sg | E | 2018-05-12 17:12:22 | 0.34 | y | 169 | 58 | |
| IIEES | SRSL | Z | Pn | E | 2018-05-12 17:12:07 | -0.08 | y | 216 | 352 | |
| IIEES | SRSL | N | Sg | E | 2018-05-12 17:12:34 | 0.16 | y | 216 | 352 | |
| IIEES | KHMZ | Z | Pn | E | 2018-05-12 17:12:29 | -0.37 | y | 391 | 98 | |
| IIEES | ASAO | Z | Pn | E | 2018-05-12 17:12:29 | -0.14 | y | 391 | 85 |
