Magnitude |
3.6 |
| Date & Time (UTC) | 2018-03-28 11:49:36.0 |
| Date & Time (Local) | 1397/1/8 16:19:36.0 |

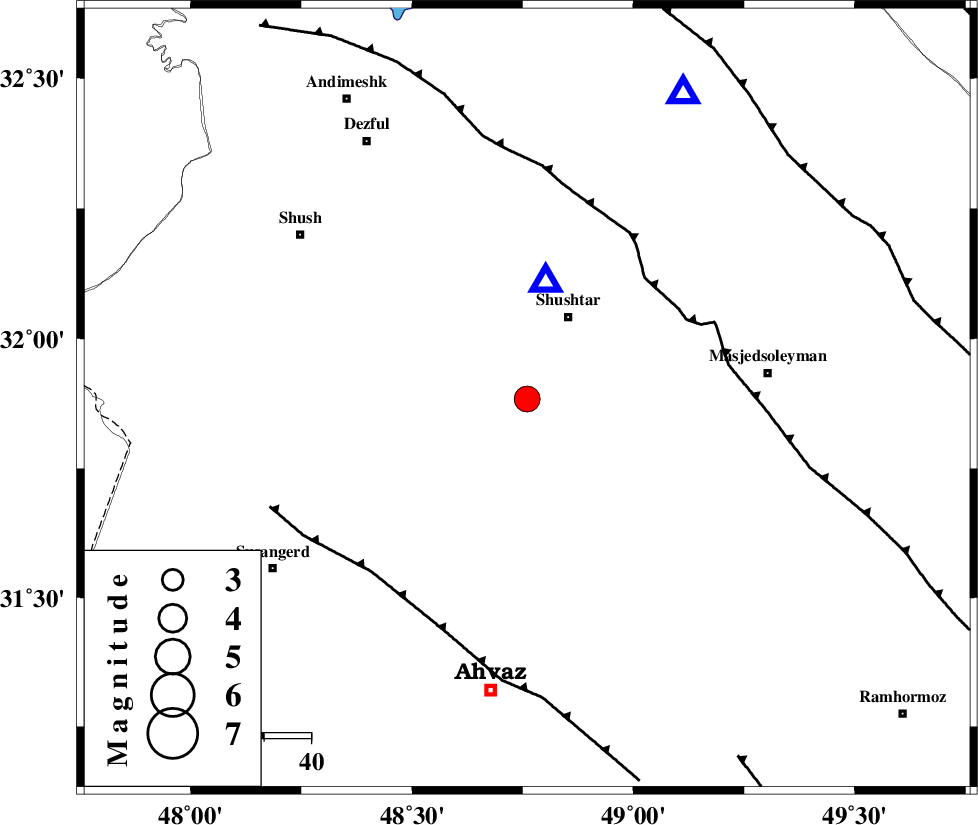

| Location | Lat:31.884 Lon: 48.76 |
| Region | Khoozestan Province, 20 km South of Shushtar |
Nearest Cities |
|
| 10 km of Mehdiabad, Khoozestan Province | |
| 14 km North West of Arabhasan, Khoozestan Province | |
| 15 km South of Sardarabad, Khoozestan Province | |
| 20 km South of Shushtar, Khoozestan Province | |
| 35 km North West of Mollasani, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 36 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 50 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 76 km | |
| Number of Phases | 11 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | 7.5 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 131673 | IIEES | KHMZ | N | 162.2 | 0.4 | 2018-03-28 11:50:51 | 2018-05-16 07:20:00 | n |
| 131674 | IIEES | KHMZ | E | 259.6 | 0.57 | 2018-03-28 11:50:51 | 2018-05-16 07:20:00 | n |
| 131675 | IIEES | ILBA | N | 225.7 | 0.58 | 2018-03-28 11:51:17 | 2018-05-16 07:20:00 | n |
| 131676 | IIEES | ILBA | E | 221.2 | 0.58 | 2018-03-28 11:51:17 | 2018-05-16 07:20:00 | n |
| 131677 | IIEES | ASAO | E | 113 | 0.7 | 2018-03-28 11:51:09 | 2018-05-16 07:20:00 | n |
| 131678 | IIEES | ASAO | N | 142.7 | 0.58 | 2018-03-28 11:51:09 | 2018-05-16 07:20:00 | n |
| 131679 | IIEES | GHVR | E | 116 | 0.64 | 2018-03-28 11:51:35 | 2018-05-16 07:20:00 | n |
| 131680 | IIEES | AHRM | E | 209.4 | 0.69 | 2018-03-28 11:51:50 | 2018-05-16 07:20:00 | n |
| 131681 | IIEES | THKV | E | 30.4 | 0.61 | 2018-03-28 11:52:12 | 2018-05-16 07:20:00 | n |
| 131682 | IIEES | THKV | N | 37.5 | 0.38 | 2018-03-28 11:52:14 | 2018-05-16 07:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-03-28 11:50:12 | -0.56 | y | 235 | 28 | |
| IIEES | ILBA | Z | Pn | E | 2018-03-28 11:50:22 | -0.32 | y | 307 | 310 | |
| IIEES | ASAO | Z | Pn | E | 2018-03-28 11:50:25 | 1.58 | y | 318 | 21 | |
| IIEES | GHVR | Z | Pn | E | 2018-03-28 11:50:30 | -0.13 | y | 370 | 38 | |
| IIEES | NASN | Z | Pn | E | 2018-03-28 11:50:32 | -1.1 | y | 394 | 74 | |
| IIEES | AHRM | Z | Pn | E | 2018-03-28 11:50:35 | 0.35 | y | 414 | 143 | |
| IIEES | THKV | Z | Pn | E | 2018-03-28 11:50:44 | -0.15 | y | 488 | 23 | |
| IIEES | CHTH | Z | Pn | E | 2018-03-28 11:50:45 | -0.23 | y | 497 | 25 | |
| IIEES | YZKH | Z | Pn | E | 2018-03-28 11:50:53 | 0.47 | y | 553 | 83 | |
| IIEES | SHRO | Z | Pn | E | 2018-03-28 11:51:25 | 0.39 | y | 811 | 54 | |
| IIEES | BNDS | Z | Pn | E | 2018-03-28 11:51:32 | -0.09 | y | 873 | 123 |
