Magnitude |
3.6 |
| Date & Time (UTC) | 2018-03-28 13:07:31.3 |
| Date & Time (Local) | 1397/1/8 17:37:31.3 |

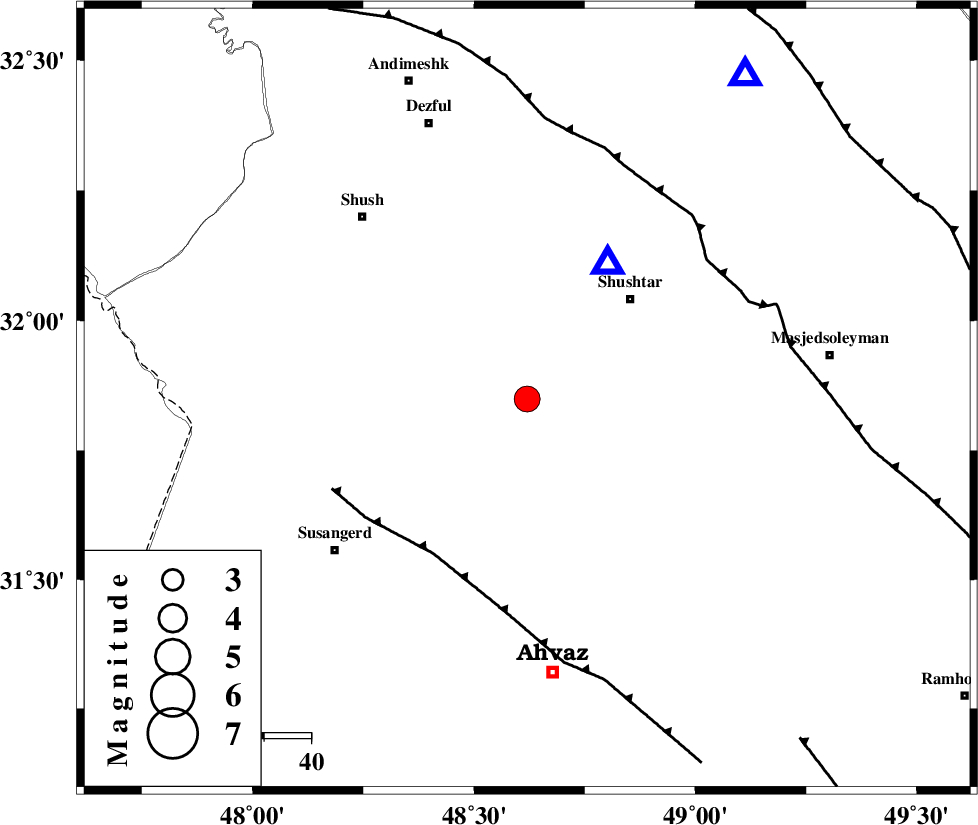

| Location | Lat:31.849 Lon: 48.62 |
| Region | Khoozestan Province, 31 km South-West of Shushtar |
Nearest Cities |
|
| 23 km North East of Abdolkhan-eali, Khoozestan Province | |
| 24 km West of Mehdiabad, Khoozestan Province | |
| 25 km South West of Sardarabad, Khoozestan Province | |
| 26 km North West of Arabhasan, Khoozestan Province | |
| 31 km South West of Shushtar, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 39 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 48 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 89 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | 4.6 km |
| Error in Longitude | 3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 131709 | IIEES | KHMZ | N | 161.4 | 0.62 | 2018-03-28 13:08:48 | 2018-05-16 07:20:00 | n |
| 131710 | IIEES | ILBA | E | 276 | 0.59 | 2018-03-28 13:09:02 | 2018-05-16 07:20:00 | n |
| 131711 | IIEES | ILBA | N | 431.7 | 0.39 | 2018-03-28 13:09:22 | 2018-05-16 07:20:00 | n |
| 131712 | IIEES | ASAO | N | 219.3 | 0.81 | 2018-03-28 13:09:07 | 2018-05-16 07:20:00 | n |
| 131713 | IIEES | ASAO | E | 125.2 | 0.7 | 2018-03-28 13:09:10 | 2018-05-16 07:20:00 | n |
| 131714 | IIEES | GHVR | E | 75.9 | 0.86 | 2018-03-28 13:09:29 | 2018-05-16 07:20:00 | n |
| 131715 | IIEES | AHRM | N | 46.7 | 0.55 | 2018-03-28 13:09:47 | 2018-05-16 07:20:00 | n |
| 131716 | IIEES | AHRM | E | 47.5 | 0.55 | 2018-03-28 13:09:52 | 2018-05-16 07:20:00 | n |
| 131717 | IIEES | THKV | E | 22.4 | 0.36 | 2018-03-28 13:09:56 | 2018-05-16 07:20:00 | n |
| 131718 | IIEES | THKV | N | 63.8 | 0.89 | 2018-03-28 13:09:59 | 2018-05-16 07:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-03-28 13:08:09 | 0.28 | y | 245 | 31 | |
| IIEES | ILBA | Z | Pn | E | 2018-03-28 13:08:16 | -0.12 | y | 300 | 312 | |
| IIEES | ASAO | Z | Pn | E | 2018-03-28 13:08:20 | 0.34 | y | 327 | 23 | |
| IIEES | SNGE | Z | Pn | E | 2018-03-28 13:08:26 | 0.06 | y | 379 | 342 | |
| IIEES | GHVR | Z | Pn | E | 2018-03-28 13:08:27 | 0.72 | y | 381 | 39 | |
| IIEES | NASN | Z | Pn | E | 2018-03-28 13:08:29 | -0.18 | y | 408 | 74 | |
| IIEES | AHRM | Z | Pn | E | 2018-03-28 13:08:31 | 0.23 | y | 419 | 141 | |
| IIEES | THKV | Z | Pn | E | 2018-03-28 13:08:40 | 0 | y | 497 | 24 | |
| IIEES | CHTH | Z | Pn | E | 2018-03-28 13:08:41 | -0.7 | y | 506 | 27 | |
| IIEES | DAMV | Z | Pn | E | 2018-03-28 13:08:43 | -0.47 | y | 522 | 36 | |
| IIEES | YZKH | Z | Pn | E | 2018-03-28 13:08:48 | -0.63 | y | 567 | 82 | |
| IIEES | GIDE | Z | Pn | E | 2018-03-28 13:08:50 | -0.24 | y | 575 | 12 | |
| IIEES | SHRO | Z | Pn | E | 2018-03-28 13:09:21 | 0.36 | y | 824 | 54 |
