Magnitude |
3 |
| Date & Time (UTC) | 2018-03-31 15:58:31.1 |
| Date & Time (Local) | 1397/1/11 20:28:31.1 |

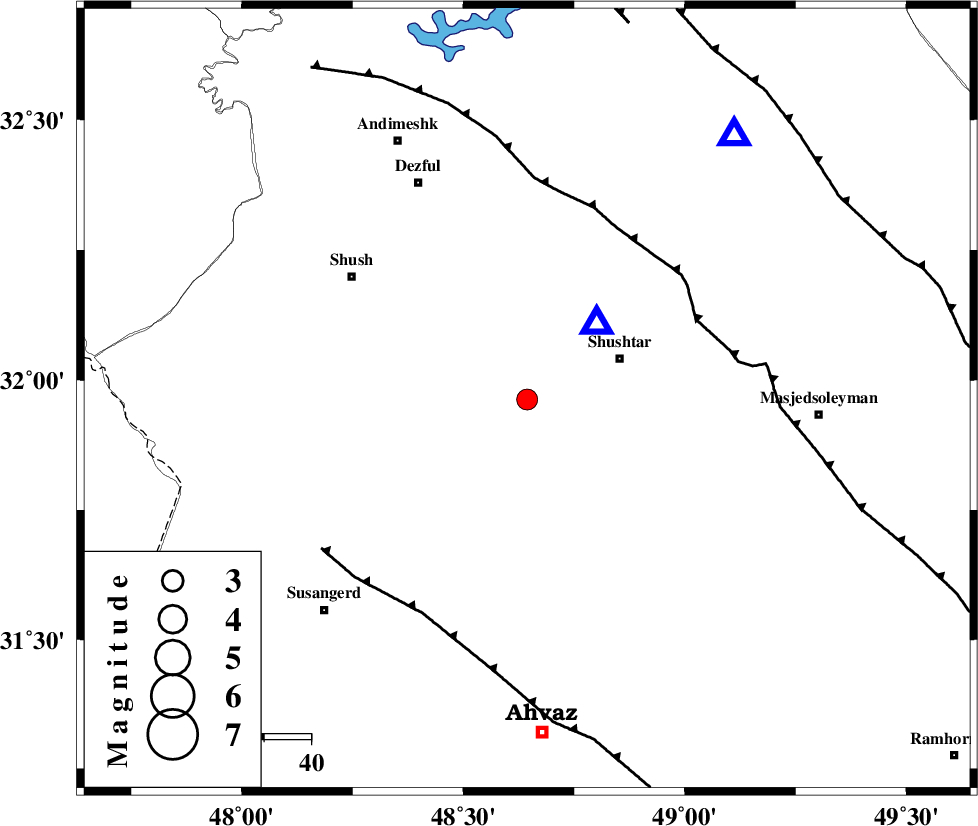

| Location | Lat:31.963 Lon: 48.644 |
| Region | Khoozestan Province, 22 km -West of Shushtar |
Nearest Cities |
|
| 15 km West of Sardarabad, Khoozestan Province | |
| 19 km North West of Mehdiabad, Khoozestan Province | |
| 22 km West of Shushtar, Khoozestan Province | |
| 28 km North West of Arabhasan, Khoozestan Province | |
| 29 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 40 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 51 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 79 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | 4.3 km |
| Error in Longitude | 3 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 131755 | IIEES | KHMZ | E | 57.3 | 0.7 | 2018-03-31 15:59:46 | 2018-05-16 07:20:00 | n |
| 131756 | IIEES | KHMZ | N | 60.9 | 0.44 | 2018-03-31 15:59:54 | 2018-05-16 07:20:00 | n |
| 131757 | IIEES | ILBA | E | 87.4 | 0.42 | 2018-03-31 16:00:05 | 2018-05-16 07:20:00 | n |
| 131758 | IIEES | ILBA | N | 98.1 | 0.58 | 2018-03-31 16:00:17 | 2018-05-16 07:20:00 | n |
| 131759 | IIEES | ASAO | N | 47 | 0.55 | 2018-03-31 16:00:08 | 2018-05-16 07:20:00 | n |
| 131760 | IIEES | ASAO | E | 31.4 | 0.64 | 2018-03-31 16:00:19 | 2018-05-16 07:20:00 | n |
| 131761 | IIEES | GHVR | N | 12.6 | 0.41 | 2018-03-31 16:00:30 | 2018-05-16 07:20:00 | n |
| 131762 | IIEES | GHVR | E | 97.9 | 0.92 | 2018-03-31 16:00:35 | 2018-05-16 07:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-03-31 15:59:08 | 0.57 | y | 233 | 32 | |
| IIEES | KHMZ | N | Sg | E | 2018-03-31 15:59:36 | -0.25 | y | 233 | 32 | |
| IIEES | ILBA | Z | Pn | E | 2018-03-31 15:59:14 | -0.56 | y | 293 | 310 | |
| IIEES | ILBA | N | Sg | E | 2018-03-31 15:59:53 | 0.04 | y | 293 | 310 | |
| IIEES | ASAO | Z | Pn | E | 2018-03-31 15:59:18 | 0.16 | y | 314 | 24 | |
| IIEES | SNGE | Z | Pn | E | 2018-03-31 15:59:25 | 0.49 | y | 367 | 341 | |
| IIEES | GHVR | Z | Pn | E | 2018-03-31 15:59:25 | 0.8 | n | 4 | 370 | 40 |
| IIEES | NASN | Z | Pn | E | 2018-03-31 15:59:29 | -0.11 | y | 403 | 76 | |
| IIEES | AHRM | Z | Pn | E | 2018-03-31 15:59:31 | 0.05 | y | 428 | 143 | |
| IIEES | THKV | Z | Pn | E | 2018-03-31 15:59:38 | -0.22 | y | 485 | 25 | |
| IIEES | CHTH | Z | Pn | E | 2018-03-31 15:59:40 | -0.09 | y | 494 | 27 | |
| IIEES | DAMV | Z | Pn | E | 2018-03-31 15:59:42 | 0.01 | y | 510 | 36 | |
| IIEES | YZKH | Z | Pn | E | 2018-03-31 15:59:48 | -0.23 | y | 563 | 84 |
