Magnitude |
3.1 |
| Date & Time (UTC) | 2018-05-21 21:00:13.3 |
| Date & Time (Local) | 1397/3/1 01:30:13.3 |

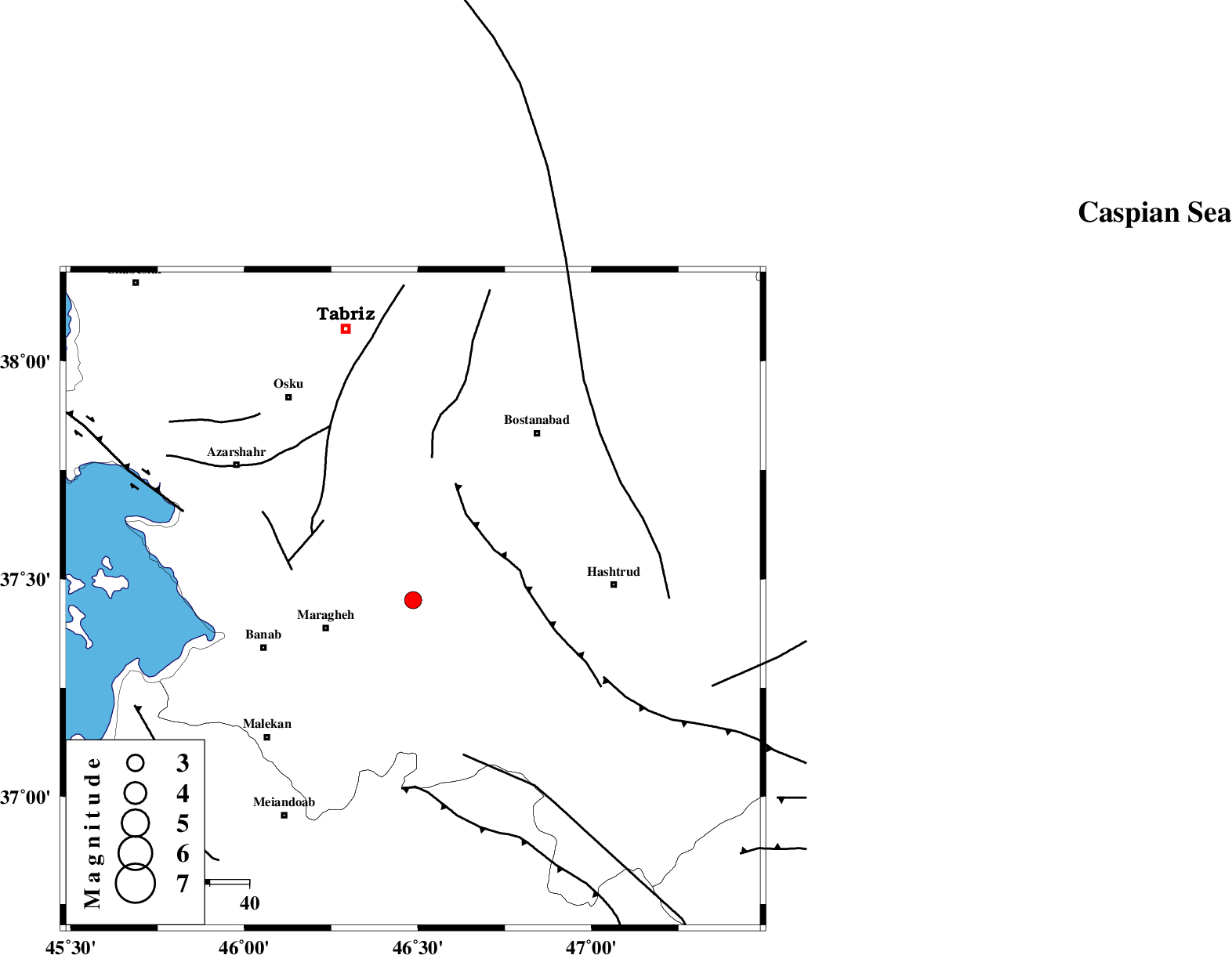

| Location | Lat:37.452 Lon: 46.486 |
| Region | Azarbaijan Sharghi Province, 23 km -East of Maragheh |
Nearest Cities |
|
| 15 km North of Kharaju, Azarbaijan Sharghi Province | |
| 15 km North West of Atashbeyk, Azarbaijan Sharghi Province | |
| 16 km North East of Dashatan, Azarbaijan Sharghi Province | |
| 22 km North East of Dashbelagh bazar, Azarbaijan Sharghi Province | |
| 22 km North East of Ealavian, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 72 km | |
| TAKHT_E_SOLAIMAN (Length: 63 km) , Distance to epicenter: 85 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | 1.7 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 132185 | IIEES | SRSL | E | 147.6 | 0.37 | 2018-05-21 21:01:04 | 2018-05-22 10:06:00 | n |
| 132186 | IIEES | GRMI | E | 95.4 | 0.16 | 2018-05-21 21:01:09 | 2018-05-22 10:06:00 | n |
| 132187 | IIEES | GIDE | E | 98 | 0.29 | 2018-05-21 21:01:44 | 2018-05-22 10:06:00 | n |
| 132188 | IIEES | GIDE | N | 129.3 | 0.59 | 2018-05-21 21:01:46 | 2018-05-22 10:06:00 | n |
| 132189 | IIEES | THKV | N | 16.5 | 0.45 | 2018-05-21 21:02:19 | 2018-05-22 10:06:00 | n |
| 132190 | IIEES | THKV | E | 17.7 | 0.45 | 2018-05-21 21:02:20 | 2018-05-22 10:06:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SRSL | Z | Pg | E | 2018-05-21 21:00:40 | -0.07 | y | 166 | 215 | |
| IIEES | SRSL | N | Sg | E | 2018-05-21 21:01:01 | -0.01 | y | 166 | 215 | |
| IIEES | GRMI | Z | Pg | E | 2018-05-21 21:00:45 | 0.16 | y | 195 | 39 | |
| IIEES | GRMI | N | Sg | E | 2018-05-21 21:01:08 | 0.03 | y | 195 | 39 | |
| IIEES | ZNJK | Z | Pn | E | 2018-05-21 21:00:47 | 0.25 | y | 214 | 113 | |
| IIEES | MAKU | Z | Pn | E | 2018-05-21 21:00:53 | 0.13 | y | 263 | 324 | |
| IIEES | MAKU | N | Sg | E | 2018-05-21 21:01:27 | -0.11 | y | 263 | 324 | |
| IIEES | SNGE | Z | Pn | E | 2018-05-21 21:00:55 | 0.23 | y | 273 | 163 | |
| IIEES | GIDE | Z | Pn | E | 2018-05-21 21:00:58 | -0.69 | y | 310 | 100 | |
| IIEES | THKV | Z | Pn | E | 2018-05-21 21:01:13 | -0.25 | y | 428 | 112 | |
| IIEES | CHTH | Z | Pn | E | 2018-05-21 21:01:17 | 0.31 | y | 449 | 111 |
