Magnitude |
2.6 |
| Date & Time (UTC) | 2018-05-22 16:56:16.8 |
| Date & Time (Local) | 1397/3/1 21:26:16.8 |

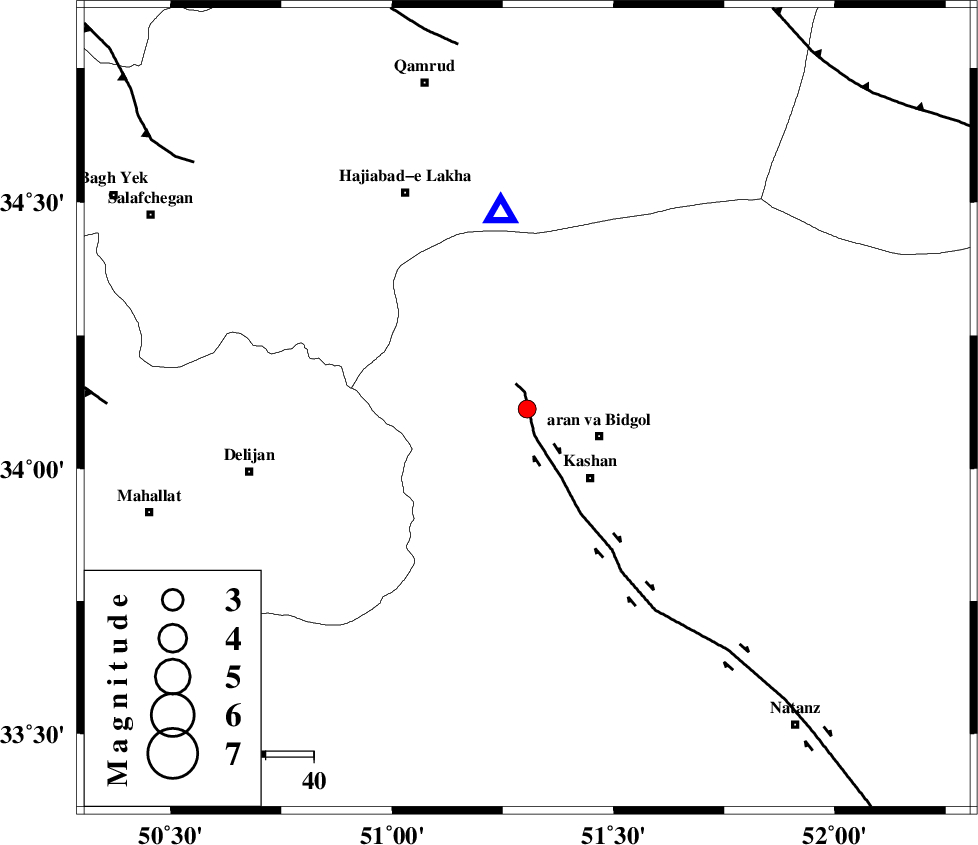

| Location | Lat:34.112 Lon: 51.305 |
| Region | Esfahan Province, 16 km -West of Aran va bidgol |
Nearest Cities |
|
| 4 km of Nasrabad, Esfahan Province | |
| 8 km of Mashgan, Esfahan Province | |
| 11 km North of Astarak, Esfahan Province | |
| 16 km North West of Aran va bidgol, Esfahan Province | |
| 20 km North West of Kashan, Esfahan Province | |
| Depth | 43 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 4 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 39 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 77 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | 3.2 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 1.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 132297 | IIEES | GHVR | E | 357.2 | 0.15 | 2018-05-22 16:56:34 | 2018-05-23 08:00:00 | n |
| 132298 | IIEES | GHVR | N | 425.6 | 0.13 | 2018-05-22 16:56:34 | 2018-05-23 08:00:00 | n |
| 132299 | IIEES | KHMZ | E | 75.4 | 0.26 | 2018-05-22 16:56:56 | 2018-05-23 08:00:00 | n |
| 132300 | IIEES | DAMV | E | 96.5 | 0.19 | 2018-05-22 16:57:09 | 2018-05-23 08:00:00 | n |
| 132301 | IIEES | DAMV | N | 61.6 | 0.16 | 2018-05-22 16:57:09 | 2018-05-23 08:00:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHVR | Z | Pg | E | 2018-05-22 16:56:26 | 0.01 | y | 41.2 | 352 | |
| IIEES | GHVR | N | Sg | E | 2018-05-22 16:56:33 | -0.08 | y | 41.2 | 352 | |
| IIEES | ASAO | Z | Pg | E | 2018-05-22 16:56:38 | 0.12 | y | 127 | 293 | |
| IIEES | KHMZ | Z | Pg | E | 2018-05-22 16:56:38 | -0.03 | y | 131 | 252 | |
| IIEES | DAMV | Z | Pg | E | 2018-05-22 16:56:46 | 0.03 | y | 179 | 20 | |
| IIEES | CHTH | Z | Pg | E | 2018-05-22 16:56:49 | 0.03 | y | 200 | 355 | |
| IIEES | SNGE | Z | Pn | E | 2018-05-22 16:57:09 | -0.1 | y | 379 | 288 |
