Magnitude |
3.3 |
| Date & Time (UTC) | 2018-05-26 14:28:57.3 |
| Date & Time (Local) | 1397/3/5 18:58:57.3 |

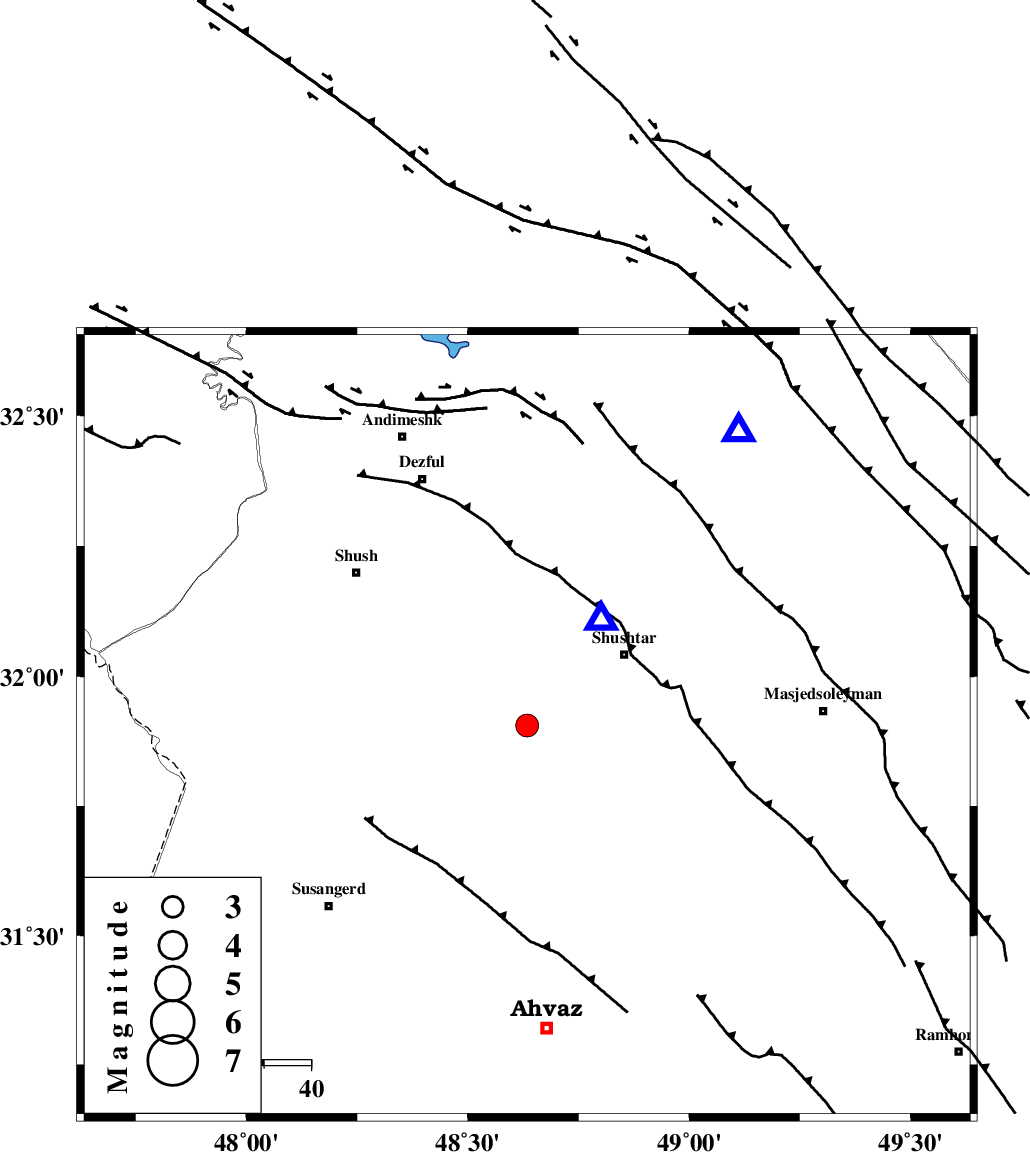

| Location | Lat:31.905 Lon: 48.634 |
| Region | Khoozestan Province, 26 km South-West of Shushtar |
Nearest Cities |
|
| 19 km South West of Sardarabad, Khoozestan Province | |
| 20 km West of Mehdiabad, Khoozestan Province | |
| 25 km North East of Abdolkhan-eali, Khoozestan Province | |
| 26 km South West of Shushtar, Khoozestan Province | |
| 26 km North West of Arabhasan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 44 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 45 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 84 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 4.5 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 132459 | IIEES | KHMZ | E | 75.6 | 0.42 | 2018-05-26 14:30:13 | 2018-05-27 07:41:00 | n |
| 132460 | IIEES | ILBA | N | 111.9 | 0.56 | 2018-05-26 14:30:27 | 2018-05-27 07:41:00 | n |
| 132461 | IIEES | ILBA | E | 82.1 | 0.66 | 2018-05-26 14:30:41 | 2018-05-27 07:41:00 | n |
| 132462 | IIEES | ASAO | N | 57.1 | 0.7 | 2018-05-26 14:30:39 | 2018-05-27 07:41:00 | n |
| 132463 | IIEES | ASAO | E | 45.5 | 0.55 | 2018-05-26 14:30:41 | 2018-05-27 07:41:00 | n |
| 132464 | IIEES | SNGE | N | 22.2 | 0.67 | 2018-05-26 14:30:44 | 2018-05-27 07:41:00 | n |
| 132465 | IIEES | GHVR | E | 44.4 | 0.61 | 2018-05-26 14:30:53 | 2018-05-27 07:41:00 | n |
| 132466 | IIEES | GHVR | N | 51.4 | 0.71 | 2018-05-26 14:30:56 | 2018-05-27 07:41:00 | n |
| 132467 | IIEES | AHRM | N | 121.5 | 0.51 | 2018-05-26 14:31:11 | 2018-05-27 07:41:00 | n |
| 132468 | IIEES | AHRM | E | 88.7 | 0.61 | 2018-05-26 14:31:15 | 2018-05-27 07:41:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-05-26 14:29:35 | 0.62 | y | 239 | 31 | |
| IIEES | ILBA | Z | Pn | E | 2018-05-26 14:29:41 | 0.07 | y | 297 | 311 | |
| IIEES | ASAO | Z | Pn | E | 2018-05-26 14:29:44 | -0.43 | y | 321 | 23 | |
| IIEES | SNGE | Z | Pn | E | 2018-05-26 14:29:51 | -0.09 | y | 373 | 342 | |
| IIEES | GHVR | Z | Pn | E | 2018-05-26 14:29:51 | -0.26 | y | 375 | 40 | |
| IIEES | AHRM | Z | Pn | E | 2018-05-26 14:29:57 | -0.02 | y | 423 | 142 |
