Magnitude |
3.1 |
| Date & Time (UTC) | 2018-05-28 05:39:29.2 |
| Date & Time (Local) | 1397/3/7 10:09:29.2 |

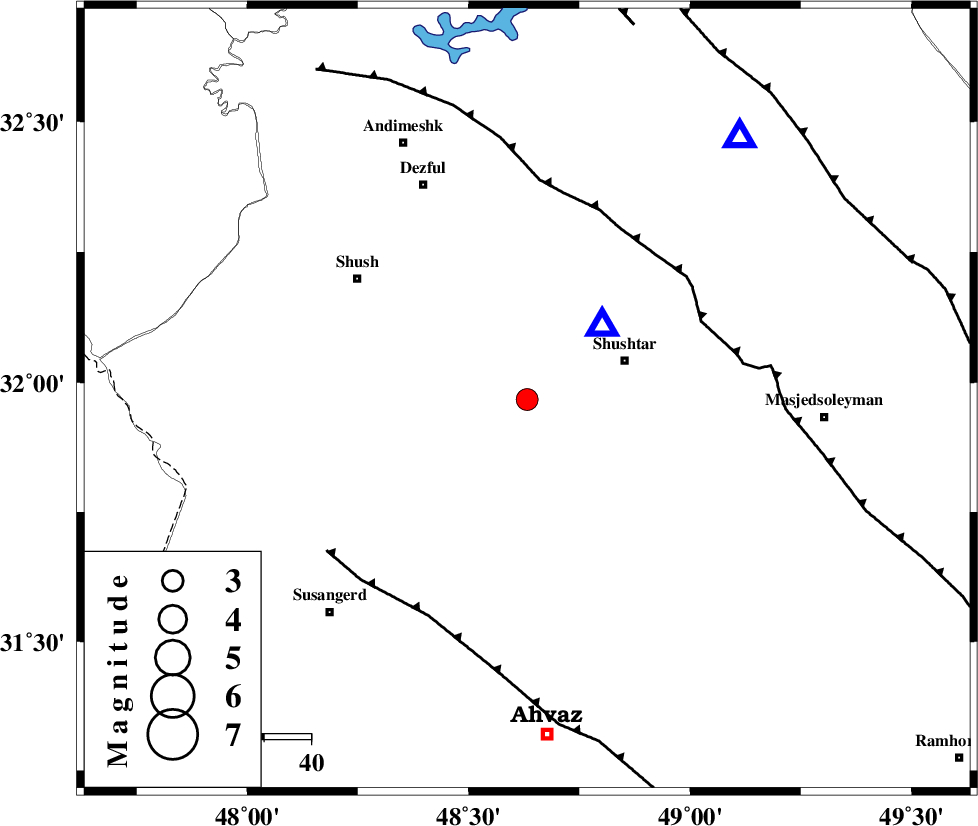

| Location | Lat:31.967 Lon: 48.632 |
| Region | Khoozestan Province, 22 km -West of Shushtar |
Nearest Cities |
|
| 16 km West of Sardarabad, Khoozestan Province | |
| 20 km North West of Mehdiabad, Khoozestan Province | |
| 22 km West of Shushtar, Khoozestan Province | |
| 28 km North East of Abdolkhan-eali, Khoozestan Province | |
| 29 km North West of Arabhasan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 41 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 51 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 80 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | 5.3 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 132646 | IIEES | KHMZ | N | 46.1 | 0.38 | 2018-05-28 05:40:43 | 2018-05-28 07:18:00 | n |
| 132647 | IIEES | ILBA | N | 78.7 | 0.63 | 2018-05-28 05:41:00 | 2018-05-28 07:18:00 | n |
| 132648 | IIEES | ILBA | E | 86.1 | 0.47 | 2018-05-28 05:41:04 | 2018-05-28 07:18:00 | n |
| 132649 | IIEES | ASAO | N | 32.6 | 0.61 | 2018-05-28 05:41:14 | 2018-05-28 07:18:00 | n |
| 132650 | IIEES | GHVR | E | 28.2 | 0.38 | 2018-05-28 05:41:26 | 2018-05-28 07:18:00 | n |
| 132651 | IIEES | GHVR | N | 32.1 | 0.69 | 2018-05-28 05:41:34 | 2018-05-28 07:18:00 | n |
| 132652 | IIEES | AHRM | N | 20.9 | 0.68 | 2018-05-28 05:41:46 | 2018-05-28 07:18:00 | n |
| 132653 | IIEES | AHRM | E | 15.6 | 0.38 | 2018-05-28 05:42:00 | 2018-05-28 07:18:00 | n |
| 132654 | IIEES | SRSL | N | 15 | 0.35 | 2018-05-28 05:41:47 | 2018-05-28 07:18:00 | n |
| 132655 | IIEES | SRSL | E | 16.2 | 0.57 | 2018-05-28 05:41:49 | 2018-05-28 07:18:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-05-28 05:40:06 | 0.16 | y | 233 | 32 | |
| IIEES | ILBA | Z | Pn | E | 2018-05-28 05:40:12 | -0.26 | y | 292 | 310 | |
| IIEES | ASAO | Z | Pn | E | 2018-05-28 05:40:16 | 0.37 | y | 314 | 24 | |
| IIEES | SNGE | Z | Pn | E | 2018-05-28 05:40:22 | 0.45 | y | 367 | 341 | |
| IIEES | GHVR | Z | Pn | E | 2018-05-28 05:40:22 | -0.02 | y | 370 | 40 | |
| IIEES | NASN | Z | Pn | E | 2018-05-28 05:40:26 | -0.8 | y | 404 | 76 | |
| IIEES | AHRM | Z | Pn | E | 2018-05-28 05:40:30 | 0.39 | y | 429 | 143 | |
| IIEES | SRSL | Z | Pn | E | 2018-05-28 05:40:45 | -0.46 | y | 556 | 329 |
