Magnitude |
3.9 |
| Date & Time (UTC) | 2018-05-28 16:32:42.6 |
| Date & Time (Local) | 1397/3/7 21:02:42.6 |

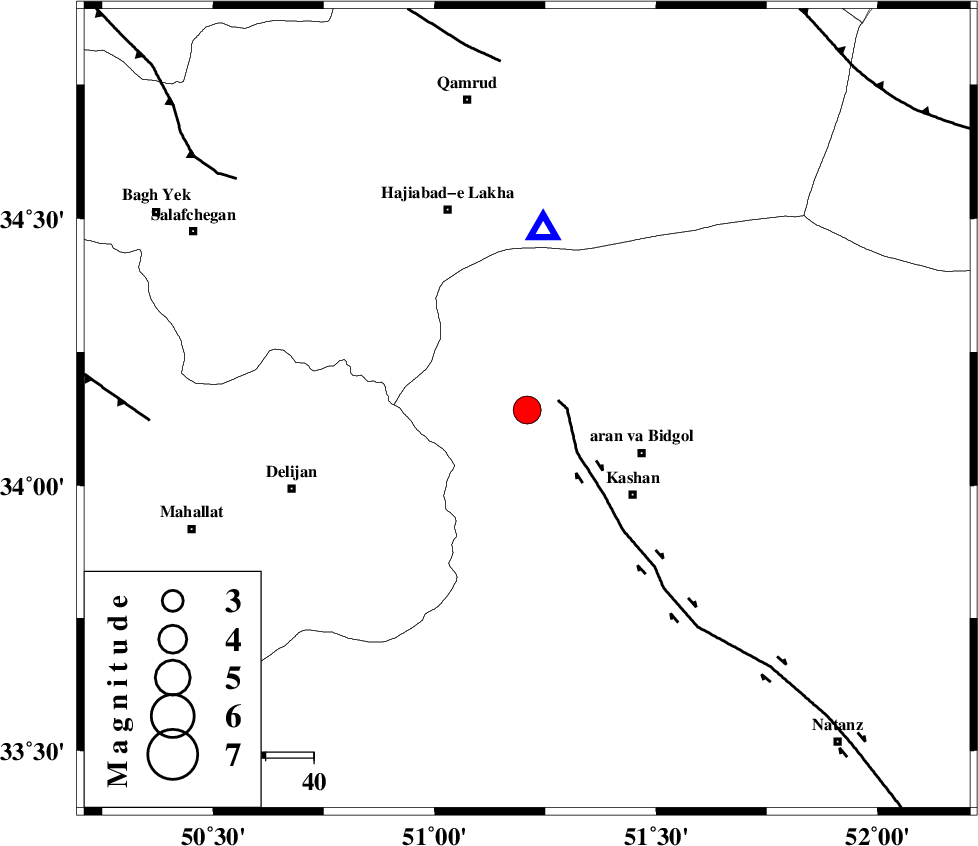

| Location | Lat:34.142 Lon: 51.209 |
| Region | Esfahan Province, 25 km -West of Aran va bidgol |
Nearest Cities |
|
| 5 km of Mashgan, Esfahan Province | |
| 13 km North West of Nasrabad, Esfahan Province | |
| 13 km North of Astarak, Esfahan Province | |
| 13 km North East of Armak, Esfahan Province | |
| 20 km East of Yahyaabad, Esfahan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 7 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 47 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 73 km | |
| Number of Phases | 20 |
| RMS | 0.6 |
| Number of Stations | 19 |
| Error in Latitude | 4.2 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 132672 | IIEES | GHVR | E | 17850.6 | 0.43 | 2018-05-28 16:32:57 | 2018-05-29 05:55:00 | n |
| 132673 | IIEES | GHVR | N | 12472.1 | 0.35 | 2018-05-28 16:32:59 | 2018-05-29 05:55:00 | n |
| 132674 | IIEES | KHMZ | E | 2235.5 | 0.32 | 2018-05-28 16:33:20 | 2018-05-29 05:55:00 | n |
| 132675 | IIEES | KHMZ | N | 2055.8 | 0.46 | 2018-05-28 16:33:21 | 2018-05-29 05:55:00 | n |
| 132676 | IIEES | DAMV | E | 1265.6 | 0.23 | 2018-05-28 16:33:35 | 2018-05-29 05:55:00 | n |
| 132677 | IIEES | DAMV | N | 963.1 | 0.17 | 2018-05-28 16:33:36 | 2018-05-29 05:55:00 | n |
| 132678 | IIEES | CHTH | E | 830.9 | 0.39 | 2018-05-28 16:33:41 | 2018-05-29 05:55:00 | n |
| 132679 | IIEES | THKV | N | 1098 | 0.38 | 2018-05-28 16:33:42 | 2018-05-29 05:55:00 | n |
| 132680 | IIEES | THKV | E | 762.3 | 0.52 | 2018-05-28 16:33:44 | 2018-05-29 05:55:00 | n |
| 132681 | IIEES | NASN | N | 1085.1 | 0.42 | 2018-05-28 16:33:44 | 2018-05-29 05:55:00 | n |
| 132682 | IIEES | NASN | E | 1262.9 | 0.28 | 2018-05-28 16:33:44 | 2018-05-29 05:55:00 | n |
| 132683 | IIEES | GIDE | E | 316.6 | 0.76 | 2018-05-28 16:34:25 | 2018-05-29 05:55:00 | n |
| 132684 | IIEES | GIDE | N | 498.9 | 0.43 | 2018-05-28 16:34:25 | 2018-05-29 05:55:00 | n |
| 132685 | IIEES | ZNJK | N | 151.2 | 0.46 | 2018-05-28 16:34:28 | 2018-05-29 05:55:00 | n |
| 132686 | IIEES | SNGE | N | 132.2 | 0.47 | 2018-05-28 16:34:38 | 2018-05-29 05:55:00 | n |
| 132687 | IIEES | ILBA | N | 104.9 | 0.74 | 2018-05-28 16:34:52 | 2018-05-29 05:55:00 | n |
| 132688 | IIEES | ILBA | E | 73 | 0.74 | 2018-05-28 16:35:03 | 2018-05-29 05:55:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHVR | Z | Pg | E | 2018-05-28 16:32:50 | 0.59 | y | 37.6 | 5 | |
| IIEES | ASAO | Z | Pg | E | 2018-05-28 16:33:02 | 0.04 | y | 118 | 293 | |
| IIEES | KHMZ | Z | Pg | E | 2018-05-28 16:33:03 | -0.17 | y | 123 | 249 | |
| IIEES | KHMZ | N | Sg | E | 2018-05-28 16:33:17 | -0.91 | y | 123 | 249 | |
| IIEES | DAMV | Z | Pg | E | 2018-05-28 16:33:11 | -0.71 | y | 179 | 23 | |
| IIEES | CHTH | Z | Pg | E | 2018-05-28 16:33:14 | -0.78 | y | 196 | 358 | |
| IIEES | THKV | Z | Pg | E | 2018-05-28 16:33:14 | -0.53 | y | 199 | 351 | |
| IIEES | NASN | Z | Pn | E | 2018-05-28 16:33:16 | 0.09 | y | 210 | 135 | |
| IIEES | GIDE | Z | Pn | E | 2018-05-28 16:33:32 | 0.76 | y | 330 | 339 | |
| IIEES | ZNJK | Z | Pn | E | 2018-05-28 16:33:36 | 0.62 | y | 362 | 321 | |
| IIEES | YZKH | Z | Pn | E | 2018-05-28 16:33:36 | 0.29 | y | 370 | 121 | |
| IIEES | SNGE | Z | Pn | E | 2018-05-28 16:33:39 | 3.44 | n | 4 | 370 | 288 |
| IIEES | ILBA | Z | Pn | E | 2018-05-28 16:33:49 | 1.32 | y | 466 | 264 | |
| IIEES | TABS | Z | Pn | E | 2018-05-28 16:33:58 | 0.01 | y | 549 | 94 | |
| IIEES | SRSL | Z | Pn | E | 2018-05-28 16:34:02 | 0.62 | y | 574 | 295 | |
| IIEES | MRVT | Z | Pn | E | 2018-05-28 16:34:03 | 0.16 | y | 588 | 47 | |
| IIEES | GRMI | Z | Pn | E | 2018-05-28 16:34:04 | 0.16 | y | 597 | 331 | |
| IIEES | BJRD | Z | Pn | E | 2018-05-28 16:34:14 | -0.82 | y | 685 | 53 | |
| IIEES | KRBR | Z | Pn | E | 2018-05-28 16:34:16 | -0.61 | y | 698 | 130 | |
| IIEES | BSRN | Z | Pn | E | 2018-05-28 16:34:27 | 0.35 | y | 778 | 106 |
