Magnitude |
3.1 |
| Date & Time (UTC) | 2018-04-02 02:11:40.3 |
| Date & Time (Local) | 1397/1/13 06:41:40.3 |

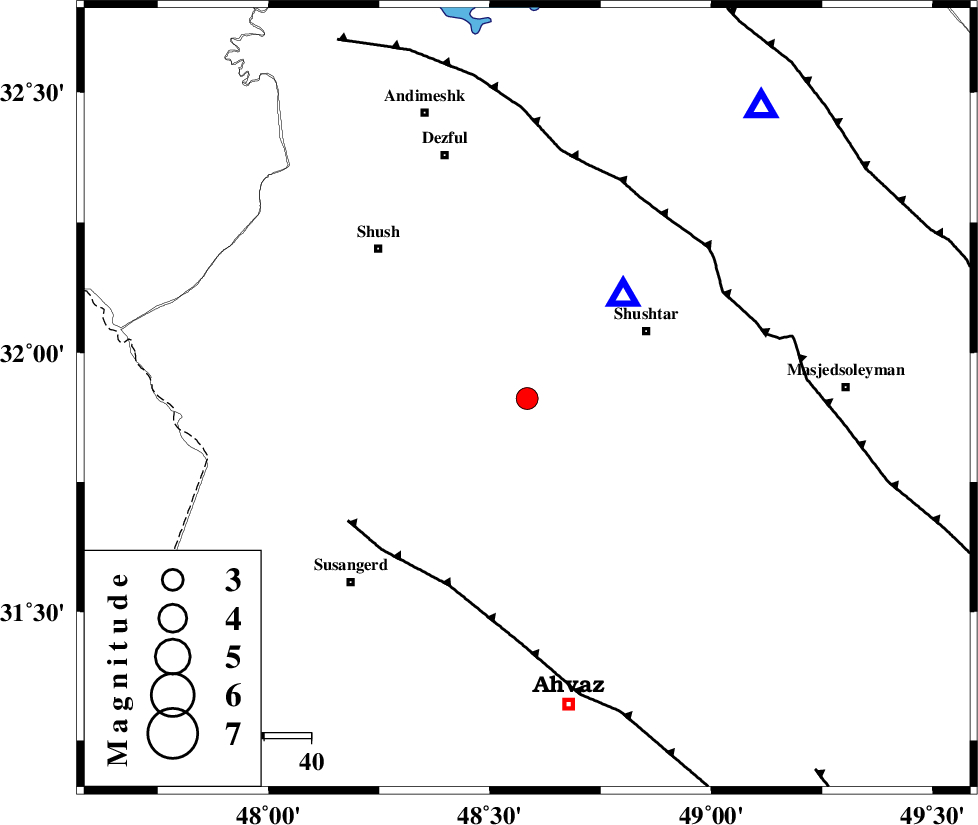

| Location | Lat:31.911 Lon: 48.584 |
| Region | Khoozestan Province, 29 km South-West of Shushtar |
Nearest Cities |
|
| 21 km North East of Abdolkhan-eali, Khoozestan Province | |
| 23 km South West of Sardarabad, Khoozestan Province | |
| 25 km West of Mehdiabad, Khoozestan Province | |
| 29 km South West of Shushtar, Khoozestan Province | |
| 30 km North West of Arabhasan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 43 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 47 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 87 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | 5.7 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 133134 | IIEES | KHMZ | E | 62.5 | 0.67 | 2018-04-02 02:12:49 | 2018-06-03 11:40:00 | n |
| 133135 | IIEES | KHMZ | N | 73 | 0.58 | 2018-04-02 02:13:04 | 2018-06-03 11:40:00 | n |
| 133136 | IIEES | ILBA | E | 124.3 | 0.67 | 2018-04-02 02:13:16 | 2018-06-03 11:40:00 | n |
| 133137 | IIEES | ILBA | N | 125.2 | 0.5 | 2018-04-02 02:13:17 | 2018-06-03 11:40:00 | n |
| 133138 | IIEES | ASAO | E | 38.8 | 0.72 | 2018-04-02 02:13:15 | 2018-06-03 11:40:00 | n |
| 133139 | IIEES | ASAO | N | 75.2 | 0.58 | 2018-04-02 02:13:19 | 2018-06-03 11:40:00 | n |
| 133140 | IIEES | GHVR | E | 30.7 | 0.74 | 2018-04-02 02:13:44 | 2018-06-03 11:40:00 | n |
| 133141 | IIEES | AHRM | N | 20.6 | 0.66 | 2018-04-02 02:13:56 | 2018-06-03 11:40:00 | n |
| 133142 | IIEES | AHRM | E | 16.8 | 0.47 | 2018-04-02 02:14:02 | 2018-06-03 11:40:00 | n |
| 133143 | IIEES | THKV | E | 10.2 | 0.52 | 2018-04-02 02:14:07 | 2018-06-03 11:40:00 | n |
| 133144 | IIEES | THKV | N | 8.5 | 0.72 | 2018-04-02 02:14:14 | 2018-06-03 11:40:00 | n |
| 133145 | IIEES | CHTH | N | 14.3 | 0.91 | 2018-04-02 02:14:12 | 2018-06-03 11:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-04-02 02:12:18 | 0.1 | y | 240 | 32 | |
| IIEES | ILBA | Z | Pn | E | 2018-04-02 02:12:24 | -0.31 | y | 293 | 311 | |
| IIEES | ASAO | Z | Pn | E | 2018-04-02 02:12:28 | 0.5 | y | 322 | 24 | |
| IIEES | SNGE | Z | Pn | E | 2018-04-02 02:12:34 | 0.52 | y | 371 | 342 | |
| IIEES | GHVR | Z | Pn | E | 2018-04-02 02:12:35 | 0.76 | y | 378 | 40 | |
| IIEES | NASN | Z | Pn | E | 2018-04-02 02:12:38 | -0.4 | y | 410 | 75 | |
| IIEES | AHRM | Z | Pn | E | 2018-04-02 02:12:40 | 0.12 | y | 427 | 142 | |
| IIEES | THKV | Z | Pn | E | 2018-04-02 02:12:48 | -0.43 | y | 492 | 25 | |
| IIEES | CHTH | Z | Pn | E | 2018-04-02 02:12:49 | -0.67 | y | 502 | 27 | |
| IIEES | DAMV | Z | Pn | E | 2018-04-02 02:12:51 | -0.76 | y | 518 | 36 | |
| IIEES | YZKH | Z | Pn | E | 2018-04-02 02:12:59 | 0.24 | y | 569 | 83 |
