Magnitude |
3.1 |
| Date & Time (UTC) | 2018-04-02 23:25:31.5 |
| Date & Time (Local) | 1397/1/14 03:55:31.5 |

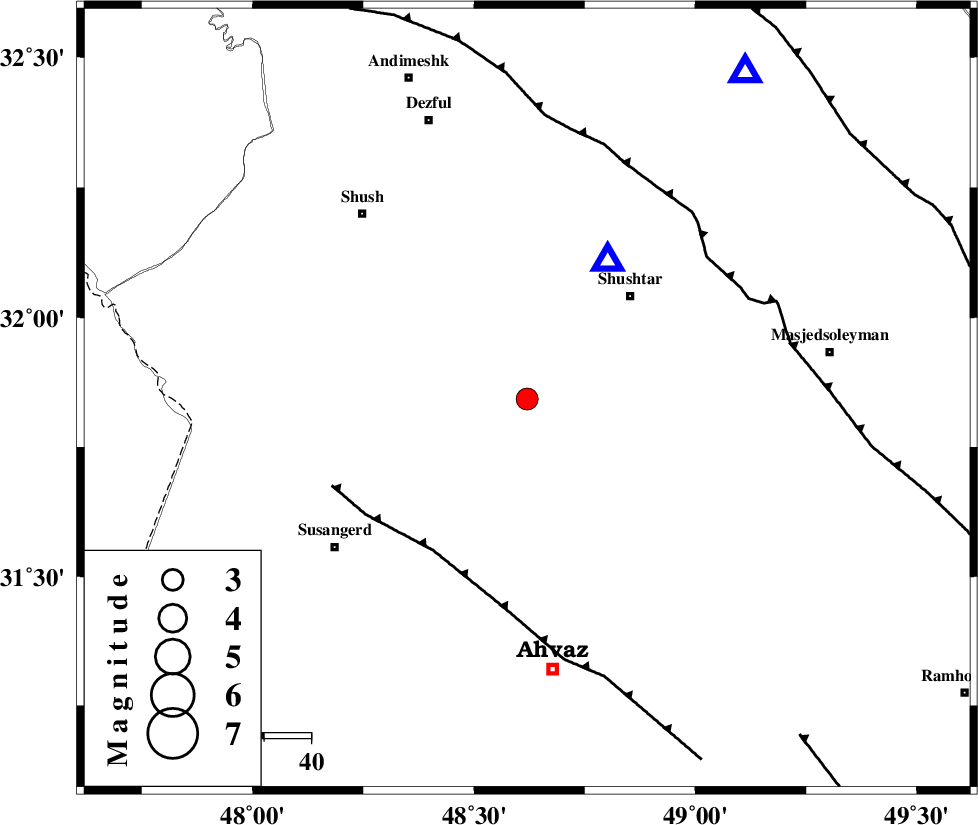

| Location | Lat:31.843 Lon: 48.62 |
| Region | Khoozestan Province, 31 km South-West of Shushtar |
Nearest Cities |
|
| 23 km North East of Abdolkhan-eali, Khoozestan Province | |
| 24 km South West of Mehdiabad, Khoozestan Province | |
| 25 km South West of Sardarabad, Khoozestan Province | |
| 26 km North West of Arabhasan, Khoozestan Province | |
| 31 km South West of Shushtar, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 38 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 49 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 89 km | |
| Number of Phases | 10 |
| RMS | 0.6 |
| Number of Stations | 10 |
| Error in Latitude | 6.7 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 133202 | IIEES | ILBA | N | 47 | 0.68 | 2018-04-02 23:27:01 | 2018-06-03 11:40:00 | n |
| 133203 | IIEES | ASAO | N | 58.8 | 0.87 | 2018-04-02 23:27:08 | 2018-06-03 11:40:00 | n |
| 133204 | IIEES | AHRM | E | 26.4 | 0.34 | 2018-04-02 23:27:18 | 2018-06-03 11:40:00 | n |
| 133205 | IIEES | AHRM | N | 27.4 | 0.46 | 2018-04-02 23:27:48 | 2018-06-03 11:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-04-02 23:26:10 | 0.89 | y | 245 | 31 | |
| IIEES | ILBA | Z | Pn | E | 2018-04-02 23:26:16 | -0.17 | y | 300 | 312 | |
| IIEES | ASAO | Z | Pn | E | 2018-04-02 23:26:19 | -0.06 | y | 327 | 23 | |
| IIEES | SNGE | Z | Pn | E | 2018-04-02 23:26:26 | -0.15 | y | 379 | 342 | |
| IIEES | GHVR | Z | Pn | E | 2018-04-02 23:26:27 | 0.66 | y | 381 | 39 | |
| IIEES | NASN | Z | Pn | E | 2018-04-02 23:26:29 | -0.52 | y | 408 | 74 | |
| IIEES | AHRM | Z | Pn | E | 2018-04-02 23:26:31 | 0.46 | y | 418 | 141 | |
| IIEES | CHTH | Z | Pn | E | 2018-04-02 23:26:41 | -0.76 | y | 507 | 27 | |
| IIEES | YZKH | Z | Pn | E | 2018-04-02 23:26:48 | -0.82 | y | 567 | 82 | |
| IIEES | TABS | Z | Pn | E | 2018-04-02 23:27:21 | -0.19 | y | 821 | 74 |
