Magnitude |
3.8 |
| Date & Time (UTC) | 2018-06-12 03:39:44.0 |
| Date & Time (Local) | 1397/3/22 08:09:44.0 |

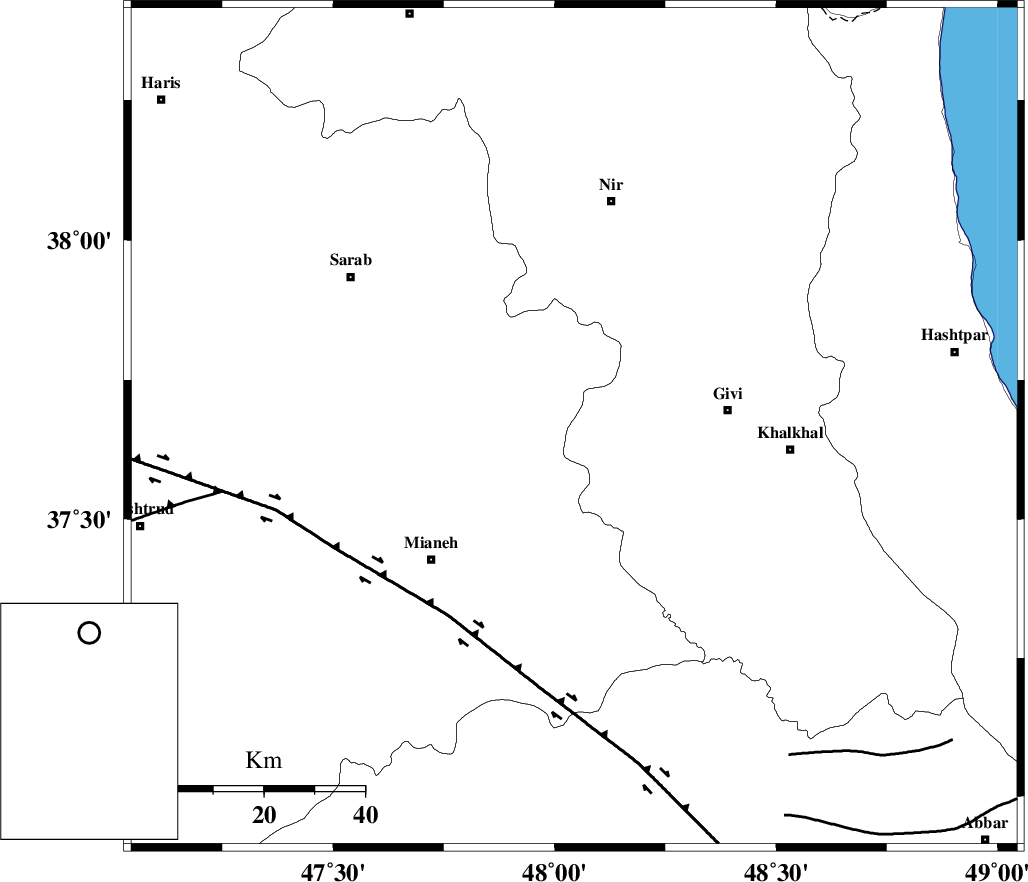

| Location | Lat:37.664 Lon: 48.044 |
| Region | Ardebil Province, 31 km -West of Givi |
Nearest Cities |
|
| 12 km South of Armodaq, Azarbaijan Sharghi Province | |
| 19 km North West of Firuz Abad, Ardebil Province | |
| 20 km West of Ganjgah, Ardebil Province | |
| 24 km North East of Tark, Azarbaijan Sharghi Province | |
| 28 km North East of Gondoghdi, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 17 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 25 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 34 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | 3.2 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 133476 | IIEES | ZNJK | N | 1261.9 | 0.22 | 2018-06-12 03:40:20 | 2018-06-12 04:24:00 | n |
| 133477 | IIEES | GIDE | E | 1635.7 | 0.45 | 2018-06-12 03:40:42 | 2018-06-12 04:24:00 | n |
| 133478 | IIEES | GIDE | N | 1965 | 0.39 | 2018-06-12 03:40:43 | 2018-06-12 04:24:00 | n |
| 133479 | IIEES | SNGE | E | 249.9 | 0.58 | 2018-06-12 03:41:46 | 2018-06-12 04:24:00 | n |
| 133480 | IIEES | DAMV | E | 79 | 0.36 | 2018-06-12 03:41:45 | 2018-06-12 04:24:00 | n |
| 133481 | IIEES | GHVR | E | 70.5 | 0.65 | 2018-06-12 03:42:06 | 2018-06-12 04:24:00 | n |
| 133482 | IIEES | GHVR | N | 82.4 | 0.56 | 2018-06-12 03:42:13 | 2018-06-12 04:24:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ZNJK | Z | Pg | E | 2018-06-12 03:40:04 | -0.59 | y | 124 | 152 | |
| IIEES | GRMI | Z | Pg | E | 2018-06-12 03:40:05 | 0.13 | y | 128 | 354 | |
| IIEES | GRMI | N | Sg | E | 2018-06-12 03:40:20 | -0.08 | y | 128 | 354 | |
| IIEES | GIDE | Z | Pn | E | 2018-06-12 03:40:14 | -0.48 | y | 185 | 116 | |
| IIEES | SNGE | Z | Pn | E | 2018-06-12 03:41:08 | 40.52 | n | 4 | 292 | 193 |
| IIEES | CHTH | Z | Pn | E | 2018-06-12 03:40:34 | 0.77 | y | 337 | 124 | |
| IIEES | MAKU | Z | Pn | E | 2018-06-12 03:40:34 | -0.1 | y | 348 | 304 | |
| IIEES | ASAO | Z | Pn | E | 2018-06-12 03:40:39 | -0.13 | y | 389 | 152 | |
| IIEES | DAMV | Z | Pn | E | 2018-06-12 03:40:43 | 0.1 | y | 417 | 122 | |
| IIEES | GHVR | Z | Pn | E | 2018-06-12 03:40:48 | 0.02 | y | 456 | 140 | |
| IIEES | KHMZ | Z | Pn | E | 2018-06-12 03:40:49 | -0.36 | y | 469 | 158 | |
| IIEES | ILBA | Z | Pn | E | 2018-06-12 03:40:51 | 0.37 | y | 478 | 201 | |
| IIEES | NASN | Z | Pn | E | 2018-06-12 03:41:18 | 1.04 | y | 692 | 140 | |
| IIEES | MRVT | Z | Pn | E | 2018-06-12 03:41:19 | -0.13 | y | 710 | 88 | |
| IIEES | SHRO | Z | Pn | E | 2018-06-12 03:41:23 | 0.35 | y | 734 | 102 | |
| IIEES | BJRD | Z | Pn | E | 2018-06-12 03:41:33 | -0.36 | y | 826 | 87 |
