Magnitude |
3.8 |
| Date & Time (UTC) | 2018-06-13 01:41:32.3 |
| Date & Time (Local) | 1397/3/23 06:11:32.3 |
| Location | Lat:31.624 Lon: 51.127 |
| Region | Chaharmahal Bakhtiari Province, 33 km North-East of Lordegan |
Nearest Cities |
|
| 10 km North of Aluni, Chaharmahal Bakhtiari Province | |
| 22 km North West of Vanak, Esfahan Province | |
| 27 km South of Gandoman, Chaharmahal Bakhtiari Province | |
| 32 km East of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 33 km North East of Lordegan, Chaharmahal Bakhtiari Province | |
| Depth | 15 km |
| Agency | |

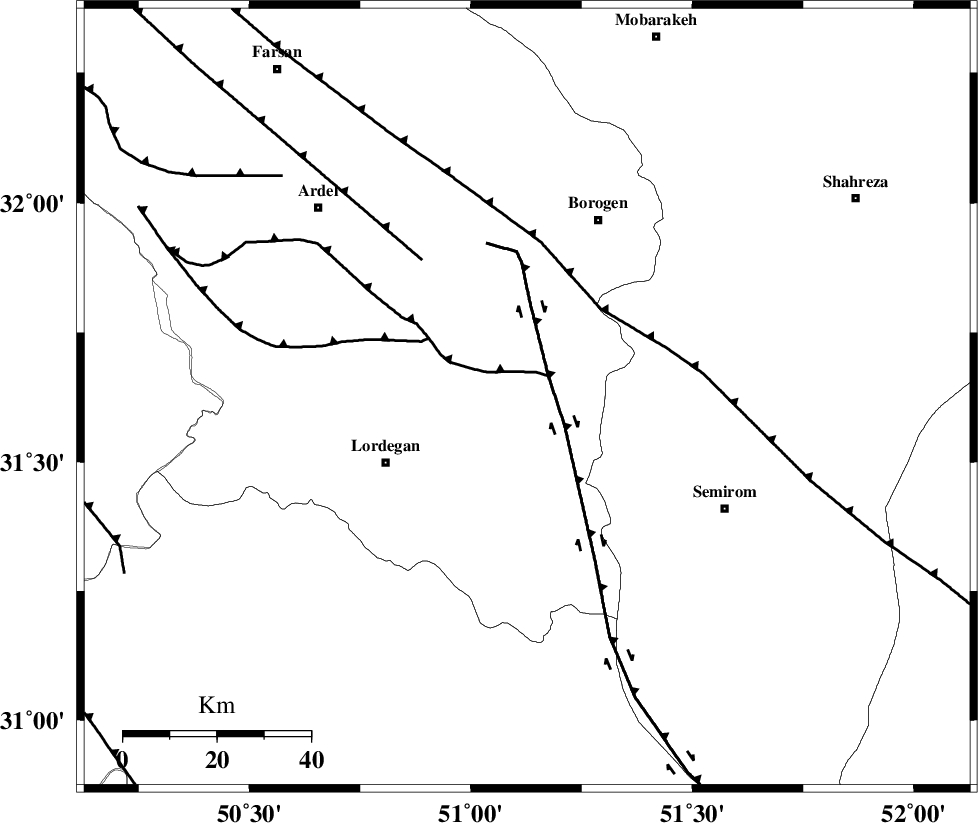

Faults within 150 km: |
|
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 6 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 7 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 25 km | |
| Number of Phases | 23 |
| RMS | 0.4 |
| Number of Stations | 22 |
| Error in Latitude | 3.1 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 133496 | IIEES | KHMZ | E | 375.8 | 0.63 | 2018-06-13 01:42:48 | 2018-06-13 04:40:00 | n |
| 133497 | IIEES | KHMZ | N | 338.9 | 0.74 | 2018-06-13 01:42:52 | 2018-06-13 04:40:00 | n |
| 133498 | IIEES | AHRM | N | 220.3 | 0.73 | 2018-06-13 01:43:17 | 2018-06-13 04:40:00 | n |
| 133499 | IIEES | GHVR | N | 236 | 0.56 | 2018-06-13 01:43:17 | 2018-06-13 04:40:00 | n |
| 133500 | IIEES | YZKH | N | 139.4 | 0.58 | 2018-06-13 01:43:11 | 2018-06-13 04:40:00 | n |
| 133501 | IIEES | YZKH | E | 181.2 | 0.73 | 2018-06-13 01:43:11 | 2018-06-13 04:40:00 | n |
| 133502 | IIEES | ASAO | N | 167.9 | 0.63 | 2018-06-13 01:43:19 | 2018-06-13 04:40:00 | n |
| 133503 | IIEES | DAMV | E | 68.5 | 0.62 | 2018-06-13 01:43:47 | 2018-06-13 04:40:00 | n |
| 133504 | IIEES | THKV | N | 45.3 | 0.6 | 2018-06-13 01:44:08 | 2018-06-13 04:40:00 | n |
| 133505 | IIEES | ILBA | E | 77.6 | 0.81 | 2018-06-13 01:44:15 | 2018-06-13 04:40:00 | n |
| 133506 | IIEES | ILBA | N | 79.9 | 0.74 | 2018-06-13 01:44:16 | 2018-06-13 04:40:00 | n |
| 133507 | IIEES | SNGE | E | 40.5 | 0.62 | 2018-06-13 01:44:20 | 2018-06-13 04:40:00 | n |
| 133508 | IIEES | GIDE | E | 43.5 | 0.75 | 2018-06-13 01:44:30 | 2018-06-13 04:40:00 | n |
| 133509 | IIEES | GIDE | N | 35.4 | 0.64 | 2018-06-13 01:44:30 | 2018-06-13 04:40:00 | n |
| 133510 | IIEES | TABS | N | 69.7 | 0.89 | 2018-06-13 01:44:38 | 2018-06-13 04:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | NASN | Z | Pg | E | 2018-06-13 01:42:02 | -3.3 | n | 4 | 205 | 50 |
| IIEES | KHMZ | Z | Pn | E | 2018-06-13 01:42:12 | 0.28 | y | 259 | 335 | |
| IIEES | AHRM | Z | Pn | E | 2018-06-13 01:42:18 | 0.7 | y | 306 | 177 | |
| IIEES | GHVR | Z | Pn | E | 2018-06-13 01:42:19 | 0.39 | y | 317 | 2 | |
| IIEES | YZKH | Z | Pn | E | 2018-06-13 01:42:22 | 0.33 | y | 338 | 75 | |
| IIEES | ASAO | Z | Pn | E | 2018-06-13 01:42:22 | 0.27 | y | 340 | 343 | |
| IIEES | GHIR | Z | Pn | E | 2018-06-13 01:42:30 | -0.97 | y | 411 | 154 | |
| IIEES | DAMV | Z | Pn | E | 2018-06-13 01:42:35 | -0.87 | y | 451 | 10 | |
| IIEES | CHTH | Z | Pn | E | 2018-06-13 01:42:39 | 0.17 | y | 475 | 360 | |
| IIEES | THKV | Z | Pn | E | 2018-06-13 01:42:39 | -0.16 | y | 477 | 357 | |
| IIEES | ILBA | Z | Pn | E | 2018-06-13 01:42:41 | -2.06 | n | 4 | 512 | 297 |
| IIEES | SNGE | Z | Pn | E | 2018-06-13 01:42:44 | -0.55 | y | 521 | 319 | |
| IIEES | KRBR | Z | Pn | E | 2018-06-13 01:42:51 | 0.17 | y | 569 | 107 | |
| IIEES | GIDE | Z | Pn | E | 2018-06-13 01:42:54 | 0.45 | y | 598 | 350 | |
| IIEES | ZNJK | Z | Pn | E | 2018-06-13 01:42:54 | -0.6 | y | 603 | 339 | |
| IIEES | TABS | Z | Pn | E | 2018-06-13 01:42:55 | 0.01 | y | 605 | 67 | |
| IIEES | SHRO | Z | Pn | E | 2018-06-13 01:43:02 | -0.1 | y | 664 | 42 | |
| IIEES | BNDS | Z | Pn | E | 2018-06-13 01:43:04 | -0.05 | y | 677 | 132 | |
| IIEES | BSRN | Z | Pn | E | 2018-06-13 01:43:14 | -0.22 | y | 758 | 85 | |
| IIEES | MRVT | Z | Pn | E | 2018-06-13 01:43:20 | 0.06 | y | 809 | 33 | |
| IIEES | GRMI | Z | Pn | E | 2018-06-13 01:43:25 | 0.01 | y | 850 | 341 | |
| IIEES | BJRD | Z | Pn | E | 2018-06-13 01:43:30 | 0.15 | y | 886 | 39 | |
| IIEES | SHRT | Z | Pn | E | 2018-06-13 01:43:30 | -0.05 | y | 888 | 73 |
