Magnitude |
2.9 |
| Date & Time (UTC) | 2018-06-17 01:15:29.0 |
| Date & Time (Local) | 1397/3/27 05:45:29.0 |

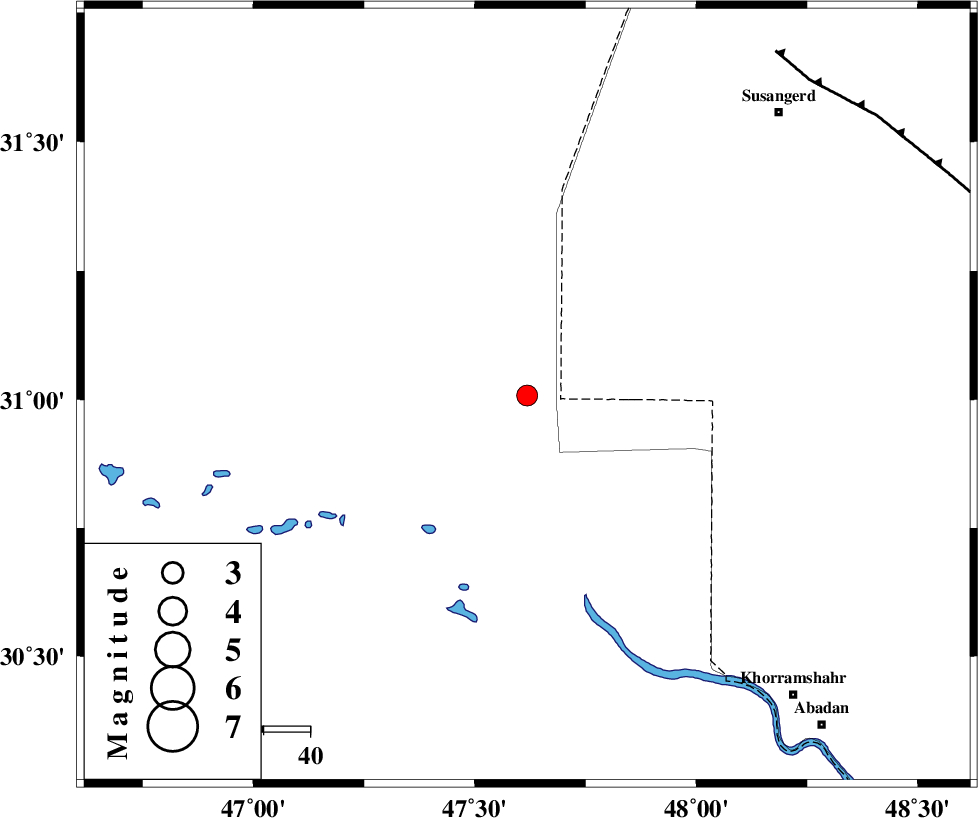

| Location | Lat:31.008 Lon: 47.618 |
| Region | Iraq, 57 km North-West of Al Basrah |
Nearest Cities |
|
| 57 km North West of Al Basrah, Iraq Province | |
| 67 km South West of Hoveizeh, Khoozestan Province | |
| 78 km North West of Polno, Khoozestan Province | |
| 81 km South West of Susangerd, Khoozestan Province | |
| 83 km North West of Darkhovin, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 91 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 3.3 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 133530 | IIEES | ILBA | N | 60.9 | 0.68 | 2018-06-17 01:17:14 | 2018-06-17 05:46:00 | n |
| 133531 | IIEES | ILBA | E | 29.4 | 0.6 | 2018-06-17 01:17:21 | 2018-06-17 05:46:00 | n |
| 133532 | IIEES | KHMZ | E | 12.7 | 0.59 | 2018-06-17 01:17:21 | 2018-06-17 05:46:00 | n |
| 133533 | IIEES | AHRM | N | 21.3 | 0.29 | 2018-06-17 01:17:40 | 2018-06-17 05:46:00 | n |
| 133534 | IIEES | AHRM | E | 22.7 | 0.44 | 2018-06-17 01:17:41 | 2018-06-17 05:46:00 | n |
| 133535 | IIEES | ASAO | E | 4.7 | 0.33 | 2018-06-17 01:17:49 | 2018-06-17 05:46:00 | n |
| 133536 | IIEES | GHVR | N | 4.8 | 0.34 | 2018-06-17 01:17:49 | 2018-06-17 05:46:00 | n |
| 133537 | IIEES | GHVR | E | 6 | 0.48 | 2018-06-17 01:17:49 | 2018-06-17 05:46:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pn | E | 2018-06-17 01:16:16 | 0.09 | y | 319 | 336 | |
| IIEES | KHMZ | Z | Pn | E | 2018-06-17 01:16:23 | -0.14 | y | 375 | 35 | |
| IIEES | AHRM | Z | Pn | E | 2018-06-17 01:16:29 | -0.01 | y | 427 | 123 | |
| IIEES | ASAO | Z | Pn | E | 2018-06-17 01:16:33 | 0.28 | y | 453 | 29 | |
| IIEES | SNGE | Z | Pn | E | 2018-06-17 01:16:32 | -0.23 | y | 454 | 357 | |
| IIEES | GHVR | Z | Pn | E | 2018-06-17 01:16:40 | 0 | y | 514 | 40 |
