Map Title

Magnitude
 2.1
Date & Time (UTC) 2018-07-06 16:21:50.0
Date & Time (Local) 1397/4/15  20:51:50.0

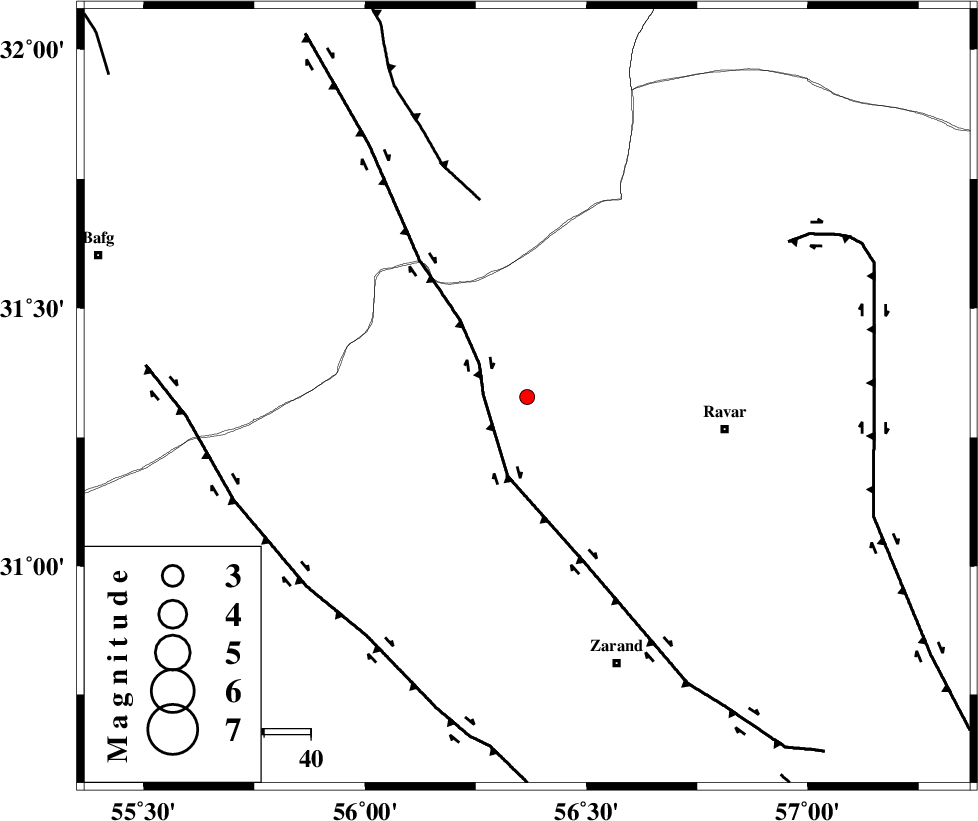

Location Lat:31.328 Lon: 56.366
Region Kerman Province, 43 km -West of Ravar
Nearest Cities
9 km of Jor, Kerman Province
12 km of Kuhbanan, Kerman Province
20 km North of Toghroljerd, Kerman Province
35 km North West of Dasht-e khak, Kerman Province
40 km South East of Basab, Yazd Province
Depth 18 km
Agency
Faults within 150 km:
KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km
JAFARABAD_F (Length: 60 km) , Distance to epicenter: 44 km
DARIVAN_F (Length: 131 km) , Distance to epicenter: 62 km
Number of Phases 5
RMS 0.2
Number of Stations 4
Error in Latitude 4.2 km
Error in Longitude 4.7 km
Error in Depth 9.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
134217IIEESKRBRE 30.40.362018-07-06 16:22:422018-07-07 05:29:00n
134218IIEESKRBRN 34.10.192018-07-06 16:22:432018-07-07 05:29:00n
134219IIEESTABSN 7.10.372018-07-06 16:23:152018-07-07 05:29:00n
134220IIEESBSRNN 8.40.372018-07-06 16:23:152018-07-07 05:29:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESKRBRZ Pg E2018-07-06 16:22:15-0.01y154166
IIEESTABSZ Pn E2018-07-06 16:22:30-0.26y26715
IIEESBSRNZ Pn E2018-07-06 16:22:31-0.05y27174
IIEESBSRNN Sg E2018-07-06 16:23:060.05y27174
IIEESSHROZ Pn E2018-07-06 16:23:020.42y520356
