Magnitude |
3.7 |
| Date & Time (UTC) | 2018-07-05 17:16:51.8 |
| Date & Time (Local) | 1397/4/14 21:46:51.8 |

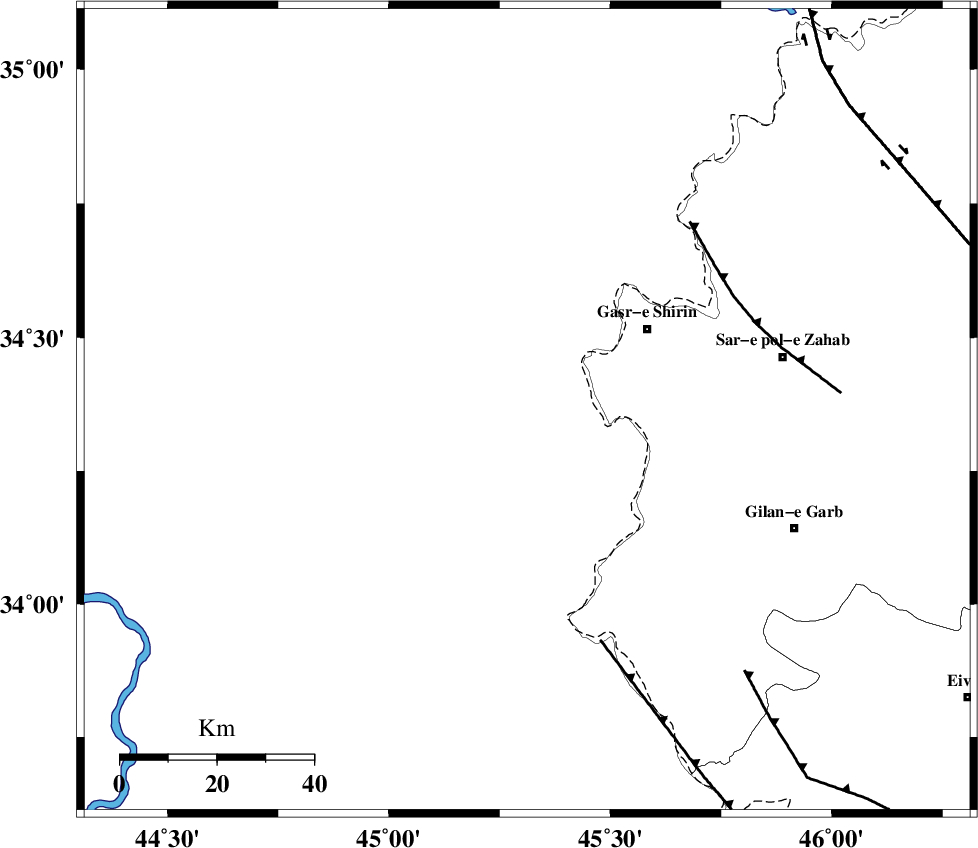

| Location | Lat:34.363 Lon: 45.312 |
| Region | Iraq, 30 km South-West of Qasr-E-Shirin |
Nearest Cities |
|
| 15 km West of Khosravi, Kermanshah Province | |
| 27 km West of Seyyed sohrab, Kermanshah Province | |
| 30 km South West of Qasr-E-Shirin, Kermanshah Province | |
| 38 km South West of Aqabarar, Kermanshah Province | |
| 45 km South West of Qareh belagh, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 49 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 50 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 71 km | |
| Number of Phases | 14 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 8.6 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 134293 | IIEES | ILBA | E | 1482.4 | 0.36 | 2018-07-05 17:17:32 | 2018-07-08 04:12:00 | n |
| 134294 | IIEES | SNGE | E | 451.2 | 0.72 | 2018-07-05 17:17:37 | 2018-07-08 04:12:00 | n |
| 134295 | IIEES | KHMZ | N | 80.9 | 0.84 | 2018-07-05 17:19:06 | 2018-07-08 04:12:00 | n |
| 134296 | IIEES | GIDE | E | 59.4 | 0.79 | 2018-07-05 17:19:27 | 2018-07-08 04:12:00 | n |
| 134297 | IIEES | GHVR | N | 35.2 | 0.59 | 2018-07-05 17:19:41 | 2018-07-08 04:12:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-07-05 17:17:11 | -0.01 | y | 116 | 134 | |
| IIEES | ILBA | E | Sg | E | 2018-07-05 17:17:25 | -0.05 | y | 116 | 134 | |
| IIEES | SNGE | Z | Pg | E | 2018-07-05 17:17:07 | -17.9 | n | 4 | 203 | 66 |
| IIEES | ZNJK | Z | Pn | E | 2018-07-05 17:17:49 | -0.05 | y | 399 | 49 | |
| IIEES | ASAO | Z | Pn | E | 2018-07-05 17:17:53 | -0.26 | y | 434 | 86 | |
| IIEES | KHMZ | Z | Pn | E | 2018-07-05 17:17:54 | 0.28 | y | 435 | 98 | |
| IIEES | GIDE | Z | Pn | E | 2018-07-05 17:18:01 | -0.42 | y | 504 | 54 | |
| IIEES | GIDE | N | Sg | E | 2018-07-05 17:19:12 | -0.04 | y | 504 | 54 | |
| IIEES | THKV | Z | Pn | E | 2018-07-05 17:18:07 | 0.83 | y | 536 | 70 | |
| IIEES | GRMI | Z | Pn | E | 2018-07-05 17:18:07 | -0.05 | y | 545 | 24 | |
| IIEES | GHVR | Z | Pn | E | 2018-07-05 17:18:07 | 0.09 | y | 546 | 87 | |
| IIEES | CHTH | Z | Pn | E | 2018-07-05 17:18:09 | 0.09 | y | 557 | 70 | |
| IIEES | DAMV | Z | Pn | E | 2018-07-05 17:18:17 | -0.14 | y | 624 | 75 | |
| IIEES | NASN | Z | Pn | E | 2018-07-05 17:18:28 | -0.31 | y | 717 | 102 |
