Magnitude |
2.6 |
| Date & Time (UTC) | 2018-07-13 09:37:50.5 |
| Date & Time (Local) | 1397/4/22 14:07:50.5 |

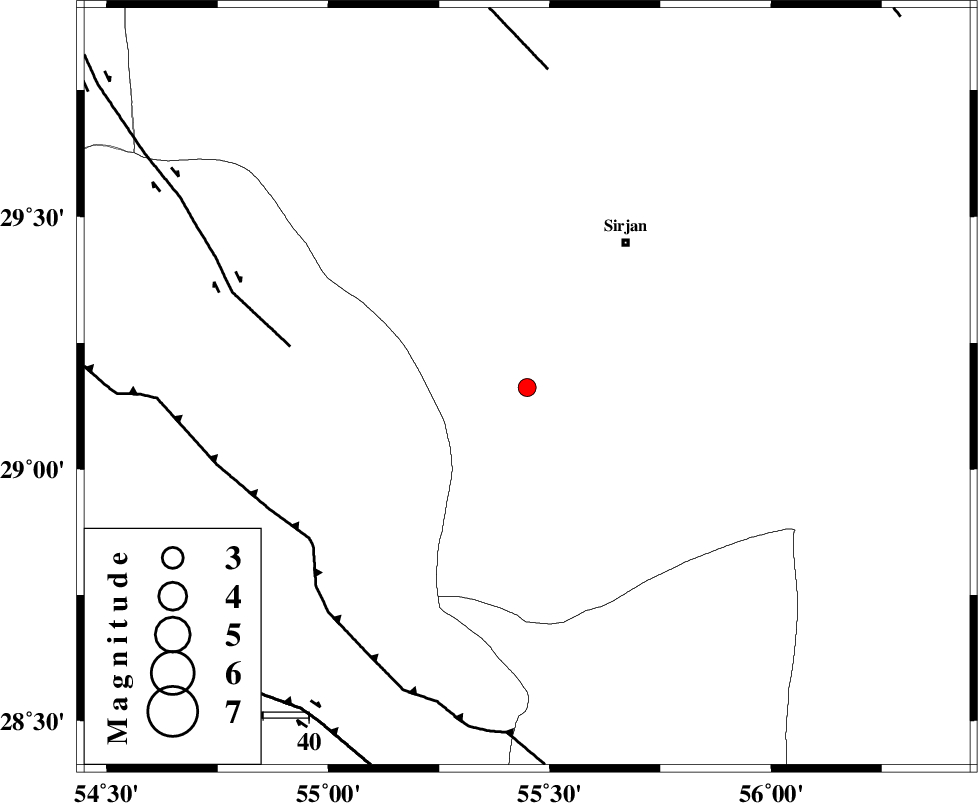

| Location | Lat:29.162 Lon: 55.449 |
| Region | Kerman Province, 38 km South-West of Sirjan |
Nearest Cities |
|
| 36 km South West of Sharifabad, Kerman Province | |
| 36 km South West of Najafabad, Kerman Province | |
| 38 km South West of Sirjan, Kerman Province | |
| 39 km South West of Malekabad, Kerman Province | |
| 45 km South West of Mahmud Abad, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 53 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 58 km | |
| SHAHR_E_BABAK_F2 (Length: 272 km) , Distance to epicenter: 70 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 8.2 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 134548 | IIEES | KRBR | N | 99.8 | 0.52 | 2018-07-13 09:38:41 | 2018-07-15 05:41:00 | n |
| 134549 | IIEES | KRBR | E | 67.5 | 0.42 | 2018-07-13 09:38:48 | 2018-07-15 05:41:00 | n |
| 134550 | IIEES | BNDS | N | 49.5 | 0.51 | 2018-07-13 09:38:54 | 2018-07-15 05:41:00 | n |
| 134551 | IIEES | BNDS | E | 36.6 | 0.57 | 2018-07-13 09:39:00 | 2018-07-15 05:41:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2018-07-13 09:38:16 | 0.03 | y | 156 | 54 | |
| IIEES | KRBR | N | Sg | E | 2018-07-13 09:38:35 | 0.19 | y | 156 | 54 | |
| IIEES | BNDS | Z | Pg | E | 2018-07-13 09:38:24 | 0.08 | y | 208 | 160 | |
| IIEES | BNDS | N | Sg | E | 2018-07-13 09:38:49 | 0.08 | y | 208 | 160 | |
| IIEES | BSRN | Z | Pn | E | 2018-07-13 09:38:56 | -0.28 | y | 470 | 48 | |
| IIEES | ZHSF | Z | Pn | E | 2018-07-13 09:39:02 | -0.61 | y | 519 | 83 | |
| IIEES | TABS | Z | Pn | E | 2018-07-13 09:39:03 | 0.31 | y | 522 | 17 |
