Magnitude |
3 |
| Date & Time (UTC) | 2018-09-14 21:00:37.4 |
| Date & Time (Local) | 1397/6/24 01:30:37.4 |

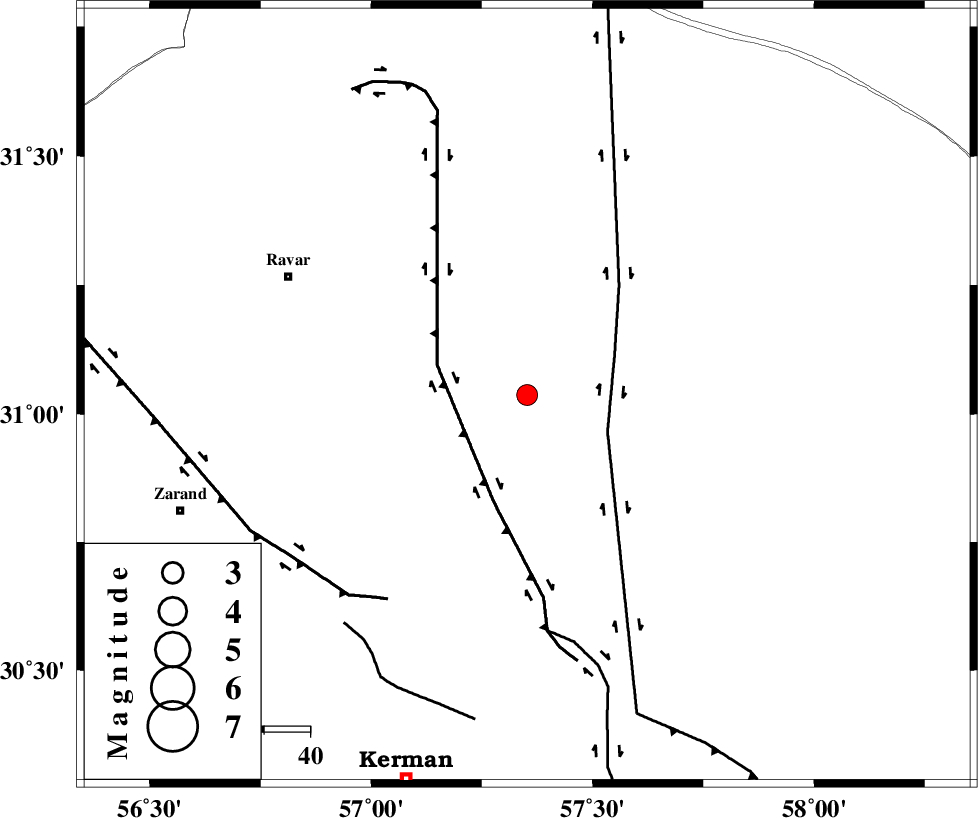

| Location | Lat:31.036 Lon: 57.352 |
| Region | Kerman Province, 57 km South-East of Ravar |
Nearest Cities |
|
| 47 km North East of Harjand, Kerman Province | |
| 47 km North East of Hejdak, Kerman Province | |
| 57 km South East of Ravar, Kerman Province | |
| 58 km North East of Hatkan, Kerman Province | |
| 60 km North of Dehlulu, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 19 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 20 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 51 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 136785 | IIEES | KRBR | E | 361.6 | 0.44 | 2018-09-14 21:01:19 | 2018-09-15 10:51:00 | n |
| 136786 | IIEES | KRBR | N | 302 | 0.25 | 2018-09-14 21:01:21 | 2018-09-15 10:51:00 | n |
| 136787 | IIEES | TABS | N | 56.7 | 0.59 | 2018-09-14 21:02:21 | 2018-09-15 10:51:00 | n |
| 136788 | IIEES | YZKH | E | 30.8 | 0.44 | 2018-09-14 21:02:19 | 2018-09-15 10:51:00 | n |
| 136789 | IIEES | ZHSF | N | 23.4 | 0.49 | 2018-09-14 21:02:20 | 2018-09-15 10:51:00 | n |
| 136790 | IIEES | SHRO | E | 6.8 | 0.48 | 2018-09-14 21:03:32 | 2018-09-15 10:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2018-09-14 21:00:59 | -0.04 | y | 130 | 206 | |
| IIEES | KRBR | N | Sg | E | 2018-09-14 21:01:15 | 0.18 | y | 130 | 206 | |
| IIEES | TABS | Z | Pn | E | 2018-09-14 21:01:21 | 0.02 | y | 291 | 356 | |
| IIEES | YZKH | Z | Pn | E | 2018-09-14 21:01:23 | 0.51 | y | 302 | 301 | |
| IIEES | YZKH | N | Sg | E | 2018-09-14 21:02:02 | -0.16 | y | 302 | 301 | |
| IIEES | ZHSF | Z | Pn | E | 2018-09-14 21:01:30 | -0.09 | y | 365 | 115 | |
| IIEES | SHRT | Z | Pn | E | 2018-09-14 21:01:34 | 0.03 | y | 400 | 43 | |
| IIEES | BNDS | Z | Pn | E | 2018-09-14 21:01:36 | -0.28 | y | 419 | 196 | |
| IIEES | NASN | Z | Pn | E | 2018-09-14 21:01:43 | -0.48 | y | 472 | 296 | |
| IIEES | SHRO | Z | Pn | E | 2018-09-14 21:01:55 | 0.2 | y | 565 | 348 |
