Magnitude |
2.3 |
| Date & Time (UTC) | 2018-09-17 14:49:15.7 |
| Date & Time (Local) | 1397/6/26 19:19:15.7 |

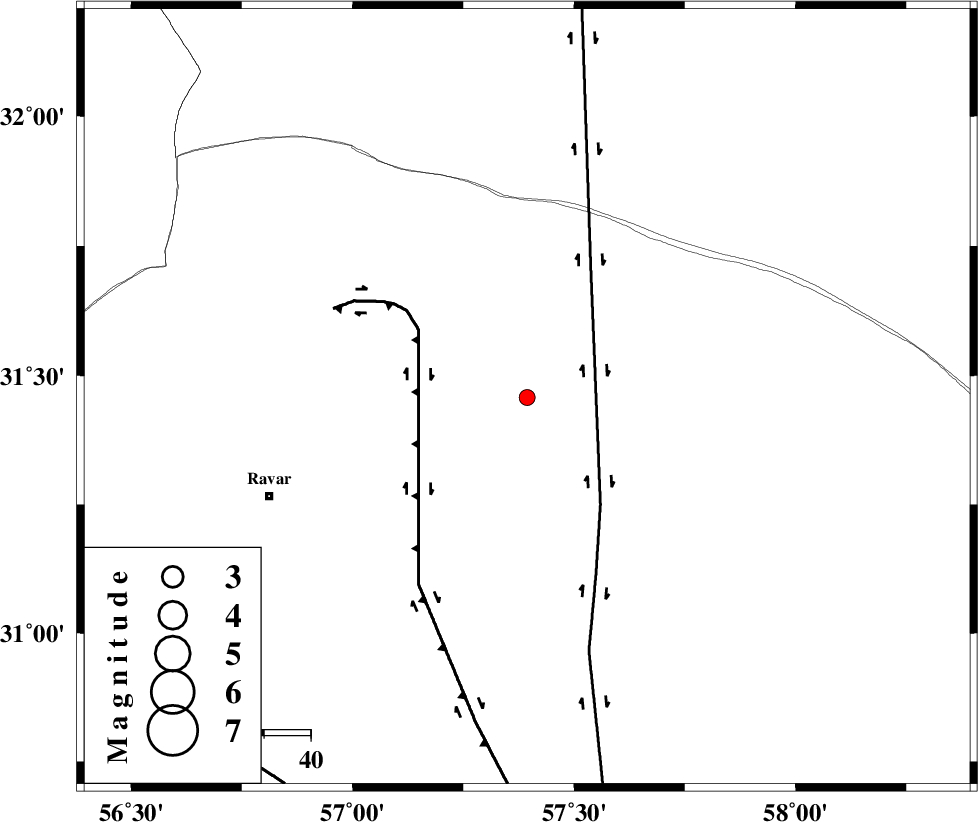

| Location | Lat:31.457 Lon: 57.394 |
| Region | Kerman Province, 59 km North-East of Ravar |
Nearest Cities |
|
| 59 km North East of Dehali, Kerman Province | |
| 59 km North East of Ravar, Kerman Province | |
| 78 km South of Hoz-e qorban, Yazd Province | |
| 87 km North East of Hejdak, Kerman Province | |
| 88 km North East of Ahmadi, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 27 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 28 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 97 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | 0.9 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 136864 | IIEES | KRBR | E | 29 | 0.19 | 2018-09-17 14:50:09 | 2018-09-18 07:58:00 | n |
| 136865 | IIEES | KRBR | N | 34.6 | 0.34 | 2018-09-17 14:50:10 | 2018-09-18 07:58:00 | n |
| 136866 | IIEES | BSRN | N | 38.6 | 0.34 | 2018-09-17 14:50:06 | 2018-09-18 07:58:00 | n |
| 136867 | IIEES | BSRN | E | 34.7 | 0.21 | 2018-09-17 14:50:08 | 2018-09-18 07:58:00 | n |
| 136868 | IIEES | TABS | N | 17.7 | 0.71 | 2018-09-17 14:50:36 | 2018-09-18 07:58:00 | n |
| 136869 | IIEES | YZKH | N | 10 | 0.33 | 2018-09-17 14:50:41 | 2018-09-18 07:58:00 | n |
| 136870 | IIEES | YZKH | E | 6.9 | 0.46 | 2018-09-17 14:50:43 | 2018-09-18 07:58:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BSRN | Z | Pg | E | 2018-09-17 14:49:44 | 0.08 | y | 174 | 71 | |
| IIEES | KRBR | Z | Pg | E | 2018-09-17 14:49:44 | -0.17 | y | 174 | 201 | |
| IIEES | KRBR | N | Sg | E | 2018-09-17 14:50:05 | 0.11 | y | 174 | 201 | |
| IIEES | BSRN | N | Sg | E | 2018-09-17 14:50:05 | -0.03 | y | 174 | 71 | |
| IIEES | TABS | Z | Pn | E | 2018-09-17 14:49:53 | -0.03 | y | 244 | 354 | |
| IIEES | TABS | N | Sg | E | 2018-09-17 14:50:24 | 0.01 | y | 244 | 354 | |
| IIEES | YZKH | Z | Pn | E | 2018-09-17 14:49:58 | 0.03 | y | 284 | 292 |
