Magnitude |
3 |
| Date & Time (UTC) | 2018-09-18 15:49:36.2 |
| Date & Time (Local) | 1397/6/27 20:19:36.2 |

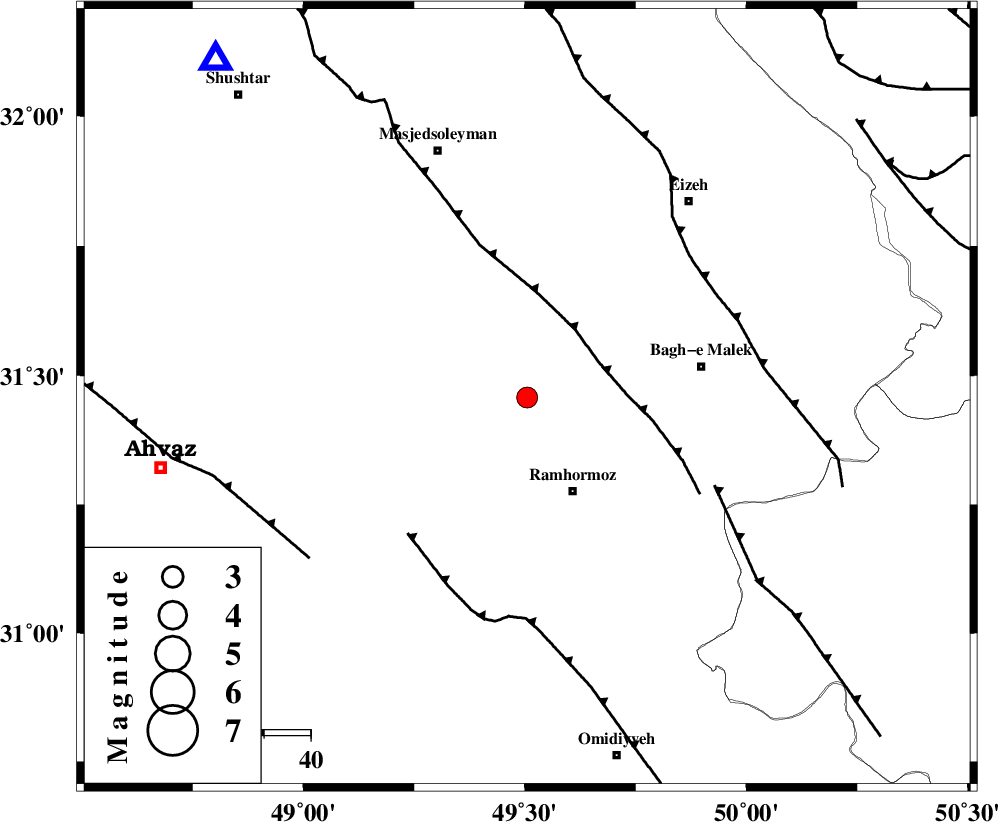

| Location | Lat:31.457 Lon: 49.505 |
| Region | Khoozestan Province, 22 km North-West of Ramhormoz |
Nearest Cities |
|
| 3 km North of Haftgol, Khoozestan Province | |
| 11 km of Jaru, Khoozestan Province | |
| 16 km South East of Gazin, Khoozestan Province | |
| 19 km North West of Midavood-e sofla, Khoozestan Province | |
| 22 km North of Marbacheh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 17 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 39 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 44 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | 4.6 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 136950 | IIEES | KHMZ | E | 41.7 | 0.46 | 2018-09-18 15:50:51 | 2018-09-22 11:32:00 | n |
| 136951 | IIEES | ASAO | E | 20.9 | 0.5 | 2018-09-18 15:51:18 | 2018-09-22 11:32:00 | n |
| 136952 | IIEES | GHVR | E | 20.6 | 0.61 | 2018-09-18 15:51:24 | 2018-09-22 11:32:00 | n |
| 136953 | IIEES | ILBA | N | 63.7 | 0.5 | 2018-09-18 15:51:44 | 2018-09-22 11:32:00 | n |
| 136954 | IIEES | ILBA | E | 42.1 | 0.61 | 2018-09-18 15:51:49 | 2018-09-22 11:32:00 | n |
| 136955 | IIEES | SNGE | E | 8.8 | 0.42 | 2018-09-18 15:51:28 | 2018-09-22 11:32:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-09-18 15:50:16 | 0.59 | y | 257 | 10 | |
| IIEES | AHRM | Z | Pn | E | 2018-09-18 15:50:25 | -0.02 | y | 335 | 149 | |
| IIEES | NASN | Z | Pn | E | 2018-09-18 15:50:27 | 0.39 | y | 345 | 64 | |
| IIEES | ASAO | Z | Pn | E | 2018-09-18 15:50:26 | -0.59 | y | 346 | 8 | |
| IIEES | GHVR | Z | Pn | E | 2018-09-18 15:50:30 | 0.24 | y | 373 | 25 | |
| IIEES | ILBA | Z | Pn | E | 2018-09-18 15:50:32 | -0.01 | y | 392 | 309 | |
| IIEES | SNGE | Z | Pn | E | 2018-09-18 15:50:40 | 0.1 | y | 451 | 334 | |
| IIEES | YZKH | Z | Pn | E | 2018-09-18 15:50:44 | -0.26 | y | 492 | 77 | |
| IIEES | DAMV | Z | Pn | E | 2018-09-18 15:50:47 | -0.75 | y | 516 | 26 |
