Magnitude |
2.6 |
| Date & Time (UTC) | 2018-10-06 22:37:35.9 |
| Date & Time (Local) | 1397/7/15 02:07:35.9 |

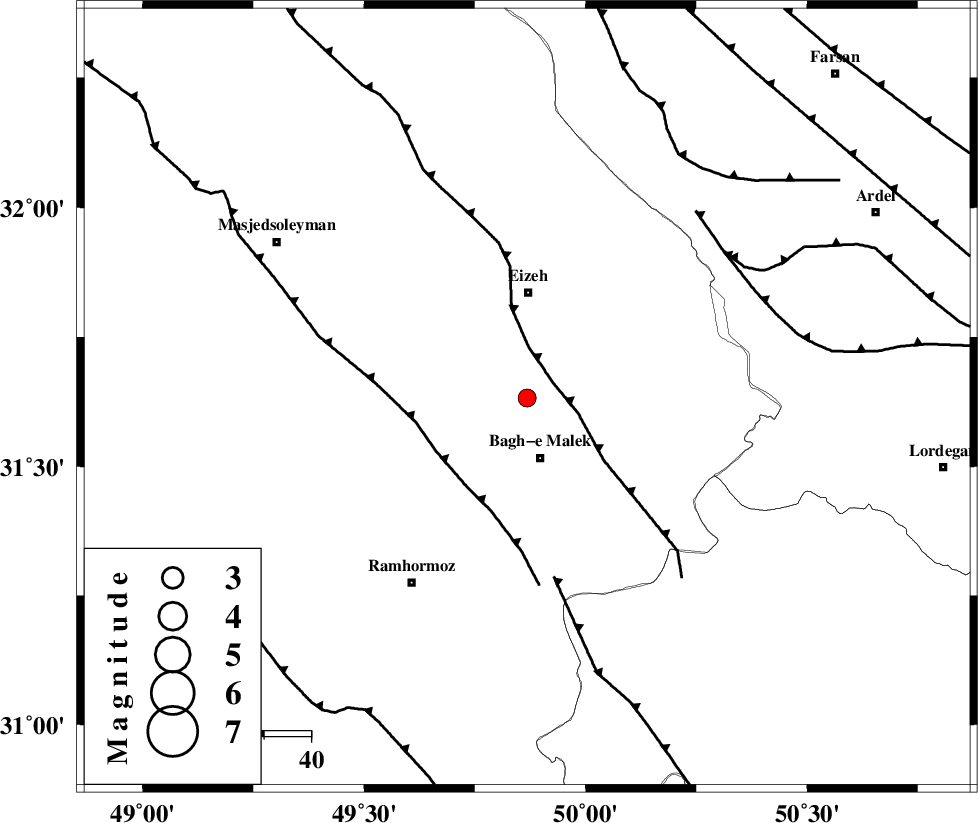

| Location | Lat:31.633 Lon: 49.868 |
| Region | Khoozestan Province, 13 km North of Bagh Malek |
Nearest Cities |
|
| 2 km North of Ghaleh tal, Khoozestan Province | |
| 13 km North of Bagh Malek, Khoozestan Province | |
| 15 km North West of Abolabbas, Khoozestan Province | |
| 19 km South of Chenarestan, Khoozestan Province | |
| 23 km South of Izeh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 6 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 23 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 39 km | |
| Number of Phases | 8 |
| RMS | 0.6 |
| Number of Stations | 8 |
| Error in Latitude | 5.4 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 137554 | IIEES | KHMZ | E | 26.7 | 0.45 | 2018-10-06 22:38:48 | 2018-10-07 06:03:00 | n |
| 137555 | IIEES | AHRM | N | 9.4 | 0.44 | 2018-10-06 22:39:21 | 2018-10-07 06:03:00 | n |
| 137556 | IIEES | GHVR | N | 7 | 0.47 | 2018-10-06 22:39:30 | 2018-10-07 06:03:00 | n |
| 137557 | IIEES | ILBA | E | 12.4 | 0.74 | 2018-10-06 22:39:48 | 2018-10-07 06:03:00 | n |
| 137558 | IIEES | ILBA | N | 13.9 | 0.74 | 2018-10-06 22:39:48 | 2018-10-07 06:03:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-10-06 22:38:13 | 0.7 | y | 234 | 2 | |
| IIEES | NASN | Z | Pn | E | 2018-10-06 22:38:21 | -0.14 | y | 306 | 64 | |
| IIEES | ASAO | Z | Pn | E | 2018-10-06 22:38:24 | 0.54 | y | 324 | 3 | |
| IIEES | AHRM | Z | Pn | E | 2018-10-06 22:38:25 | 0.68 | y | 336 | 155 | |
| IIEES | GHVR | Z | Pn | E | 2018-10-06 22:38:25 | -0.71 | y | 341 | 22 | |
| IIEES | ILBA | Z | Pn | E | 2018-10-06 22:38:33 | -0.36 | y | 408 | 304 | |
| IIEES | SNGE | Z | Pn | E | 2018-10-06 22:38:39 | -0.35 | y | 450 | 329 | |
| IIEES | GHIR | Z | Pn | E | 2018-10-06 22:38:42 | -0.7 | y | 478 | 140 |
