Magnitude |
3.6 |
| Date & Time (UTC) | 2018-10-13 19:20:55.5 |
| Date & Time (Local) | 1397/7/21 22:50:55.5 |

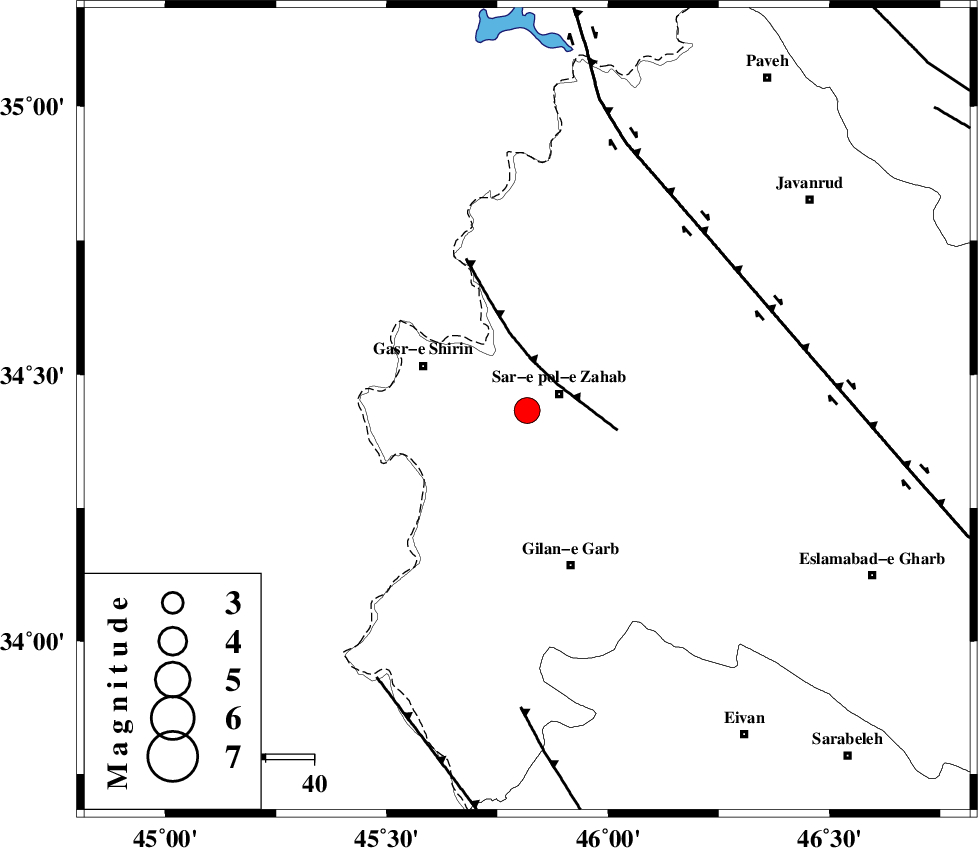

| Location | Lat:34.433 Lon: 45.817 |
| Region | Kermanshah Province, 7 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 7 km of Qareh belagh, Kermanshah Province | |
| 7 km of Sar-e pol-e zahab, Kermanshah Province | |
| 10 km North West of Tarkveys, Kermanshah Province | |
| 14 km North of Chub baghan, Kermanshah Province | |
| 15 km South of Mirmiru, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 8 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 52 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 62 km | |
| Number of Phases | 15 |
| RMS | 0.6 |
| Number of Stations | 12 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 137736 | IIEES | ILBA | N | 1831.5 | 0.24 | 2018-10-13 19:21:25 | 2018-10-14 07:14:00 | n |
| 137737 | IIEES | ILBA | E | 1695.4 | 0.28 | 2018-10-13 19:21:27 | 2018-10-14 07:14:00 | n |
| 137738 | IIEES | SRSL | E | 458.1 | 0.55 | 2018-10-13 19:21:56 | 2018-10-14 07:14:00 | n |
| 137739 | IIEES | SRSL | N | 923 | 0.71 | 2018-10-13 19:21:56 | 2018-10-14 07:14:00 | n |
| 137740 | IIEES | GHVR | E | 30.8 | 0.52 | 2018-10-13 19:23:29 | 2018-10-14 07:14:00 | n |
| 137741 | IIEES | GHVR | N | 36.5 | 0.81 | 2018-10-13 19:23:37 | 2018-10-14 07:14:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-10-13 19:21:11 | -0.29 | y | 96.6 | 158 | |
| IIEES | ILBA | N | Sg | E | 2018-10-13 19:21:23 | -0.09 | y | 96.6 | 158 | |
| IIEES | SNGE | Z | Pg | E | 2018-10-13 19:21:21 | -0.47 | y | 158 | 62 | |
| IIEES | SNGE | N | Sg | E | 2018-10-13 19:21:41 | 0.19 | y | 158 | 62 | |
| IIEES | SRSL | Z | Pg | E | 2018-10-13 19:21:28 | -0.39 | y | 200 | 350 | |
| IIEES | SRSL | N | Sg | E | 2018-10-13 19:21:52 | -0.3 | y | 200 | 350 | |
| IIEES | ZNJK | Z | Pn | E | 2018-10-13 19:21:47 | -0.39 | y | 360 | 46 | |
| IIEES | ASAO | Z | Pn | E | 2018-10-13 19:21:52 | 0.92 | y | 387 | 87 | |
| IIEES | KHMZ | Z | Pn | E | 2018-10-13 19:21:51 | -0.07 | y | 390 | 100 | |
| IIEES | GIDE | Z | Pn | E | 2018-10-13 19:22:00 | -0.57 | y | 462 | 52 | |
| IIEES | THKV | Z | Pn | E | 2018-10-13 19:22:03 | -0.15 | y | 490 | 69 | |
| IIEES | GHVR | Z | Pn | E | 2018-10-13 19:22:05 | 0.59 | y | 499 | 88 | |
| IIEES | CHTH | Z | Pn | E | 2018-10-13 19:22:06 | -0.17 | y | 511 | 70 | |
| IIEES | GRMI | Z | Pn | E | 2018-10-13 19:22:08 | 0.2 | y | 520 | 20 | |
| IIEES | MAKU | Z | Pn | E | 2018-10-13 19:22:14 | 1.84 | y | 555 | 350 |
