Magnitude |
3.3 |
| Date & Time (UTC) | 2018-10-13 21:03:43.4 |
| Date & Time (Local) | 1397/7/22 00:33:43.4 |

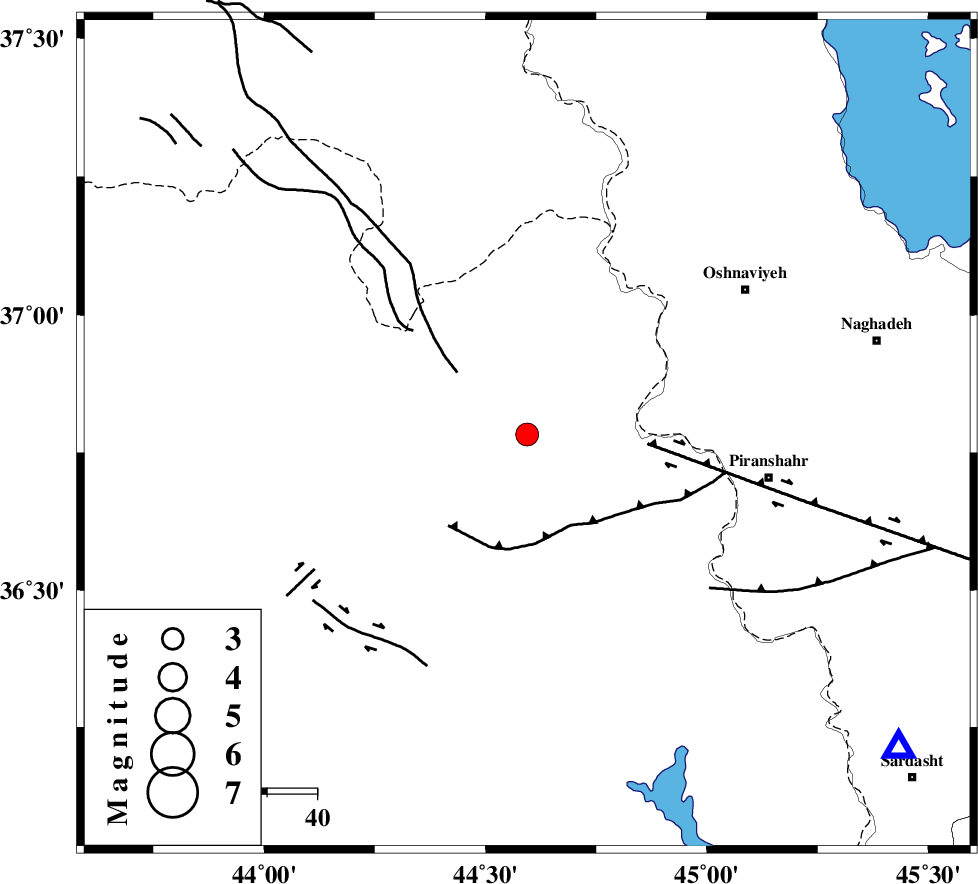

| Location | Lat:36.783 Lon: 44.594 |
| Region | Iraq, 49 km -West of Piranshahr |
Nearest Cities |
|
| 45 km West of Silveh, Azarbaijan Gharbi Province | |
| 49 km North West of Piranshahr, Azarbaijan Gharbi Province | |
| 53 km South West of Oshnaviyeh, Azarbaijan Gharbi Province | |
| 53 km South West of Nalus, Azarbaijan Gharbi Province | |
| 57 km North West of Chiyaneh, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 37 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 143 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | 2.6 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 137746 | IIEES | SRSL | E | 1566.9 | 0.54 | 2018-10-13 21:04:16 | 2018-10-14 07:14:00 | n |
| 137747 | IIEES | SRSL | N | 998.4 | 0.38 | 2018-10-13 21:04:16 | 2018-10-14 07:14:00 | n |
| 137748 | IIEES | SNGE | N | 30.7 | 0.41 | 2018-10-13 21:05:19 | 2018-10-14 07:14:00 | n |
| 137749 | IIEES | SNGE | E | 39.4 | 0.52 | 2018-10-13 21:05:21 | 2018-10-14 07:14:00 | n |
| 137750 | IIEES | ILBA | E | 90.6 | 0.52 | 2018-10-13 21:05:35 | 2018-10-14 07:14:00 | n |
| 137751 | IIEES | ILBA | N | 64.3 | 0.52 | 2018-10-13 21:05:37 | 2018-10-14 07:14:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SRSL | Z | Pg | E | 2018-10-13 21:03:59 | -0.32 | y | 98.4 | 130 | |
| IIEES | SRSL | N | Sg | E | 2018-10-13 21:04:12 | 0.08 | y | 98.4 | 130 | |
| IIEES | MAKU | Z | Pn | E | 2018-10-13 21:04:26 | 0.02 | y | 286 | 2 | |
| IIEES | SNGE | Z | Pn | E | 2018-10-13 21:04:30 | 0.17 | y | 311 | 126 | |
| IIEES | SNGE | N | Sg | E | 2018-10-13 21:05:10 | 0 | y | 311 | 126 | |
| IIEES | ZNJK | Z | Pn | E | 2018-10-13 21:04:36 | -0.08 | y | 366 | 91 | |
| IIEES | GRMI | Z | Pn | E | 2018-10-13 21:04:36 | -0.03 | y | 367 | 51 | |
| IIEES | ILBA | Z | Pn | E | 2018-10-13 21:04:38 | 0.02 | y | 380 | 157 | |
| IIEES | ASAO | Z | Pn | E | 2018-10-13 21:05:00 | 0.38 | y | 551 | 115 | |
| IIEES | KHMZ | Z | Pn | E | 2018-10-13 21:05:04 | -0.17 | y | 594 | 123 |
