Magnitude |
3.5 |
| Date & Time (UTC) | 2018-10-16 11:18:29.2 |
| Date & Time (Local) | 1397/7/24 14:48:29.2 |

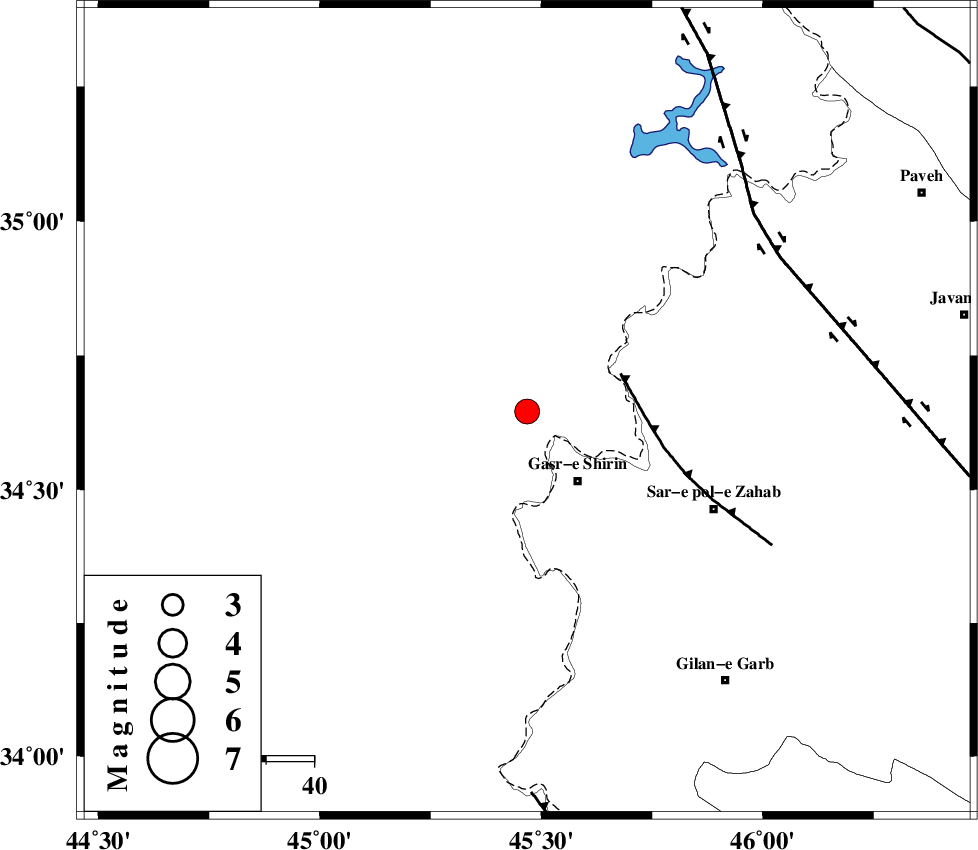

| Location | Lat:34.646 Lon: 45.468 |
| Region | Iraq, 18 km North-West of Qasr-E-Shirin |
Nearest Cities |
|
| 18 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 21 km North West of Aqabarar, Kermanshah Province | |
| 25 km North West of Seyyed sohrab, Kermanshah Province | |
| 26 km South West of Tappeh rash, Kermanshah Province | |
| 27 km North of Khosravi, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 21 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 61 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 79 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | 3.7 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 137841 | IIEES | ILBA | E | 856.4 | 0.27 | 2018-10-16 11:19:12 | 2018-10-16 11:58:00 | n |
| 137842 | IIEES | ILBA | N | 740.9 | 0.38 | 2018-10-16 11:19:14 | 2018-10-16 11:58:00 | n |
| 137843 | IIEES | SRSL | E | 1458.1 | 0.37 | 2018-10-16 11:19:21 | 2018-10-16 11:58:00 | n |
| 137844 | IIEES | SNGE | E | 263.1 | 0.36 | 2018-10-16 11:19:24 | 2018-10-16 11:58:00 | n |
| 137845 | IIEES | KHMZ | N | 37.7 | 0.86 | 2018-10-16 11:20:45 | 2018-10-16 11:58:00 | n |
| 137846 | IIEES | GIDE | N | 48.7 | 0.34 | 2018-10-16 11:20:56 | 2018-10-16 11:58:00 | n |
| 137847 | IIEES | GIDE | E | 39.2 | 0.67 | 2018-10-16 11:20:59 | 2018-10-16 11:58:00 | n |
| 137848 | IIEES | GHVR | E | 16.8 | 0.58 | 2018-10-16 11:21:14 | 2018-10-16 11:58:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-10-16 11:18:51 | -0.1 | y | 132 | 149 | |
| IIEES | SRSL | Z | Pg | E | 2018-10-16 11:18:58 | 0.15 | y | 174 | 359 | |
| IIEES | SRSL | N | Sg | E | 2018-10-16 11:19:18 | -0.25 | y | 174 | 359 | |
| IIEES | SNGE | Z | Pg | E | 2018-10-16 11:18:57 | -0.87 | y | 179 | 73 | |
| IIEES | SNGE | N | Sg | E | 2018-10-16 11:19:20 | 0.21 | y | 179 | 73 | |
| IIEES | ZNJK | Z | Pn | E | 2018-10-16 11:19:22 | 0.15 | y | 368 | 51 | |
| IIEES | ASAO | Z | Pn | E | 2018-10-16 11:19:28 | -0.59 | y | 418 | 90 | |
| IIEES | KHMZ | Z | Pn | E | 2018-10-16 11:19:30 | 0.34 | y | 426 | 102 | |
| IIEES | GIDE | Z | Pn | E | 2018-10-16 11:19:36 | 0.77 | y | 474 | 57 | |
| IIEES | GRMI | Z | Pn | E | 2018-10-16 11:19:40 | 0.14 | y | 510 | 24 | |
| IIEES | GHVR | Z | Pn | E | 2018-10-16 11:19:42 | -0.09 | y | 530 | 90 | |
| IIEES | CHTH | Z | Pn | E | 2018-10-16 11:19:43 | 0.59 | y | 533 | 73 |
