Magnitude |
3 |
| Date & Time (UTC) | 2018-10-20 23:50:42.6 |
| Date & Time (Local) | 1397/7/29 03:20:42.6 |

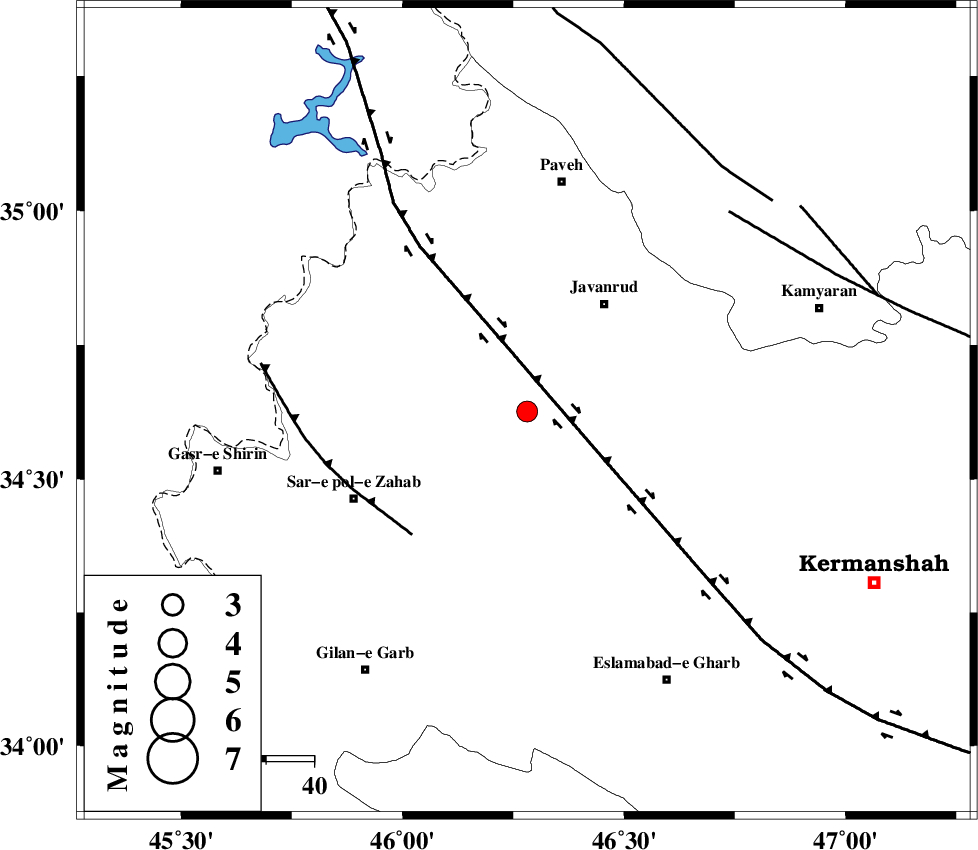

| Location | Lat:34.626 Lon: 46.281 |
| Region | Kermanshah Province, 27 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Mirabad, Kermanshah Province | |
| 15 km North of Zavleh olia, Kermanshah Province | |
| 15 km East of Qolqoleh, Kermanshah Province | |
| 19 km West of Dolatabad, Kermanshah Province | |
| 21 km South West of Sarukhan, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 13 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 35 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | 2.1 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 137916 | IIEES | SNGE | N | 307.5 | 0.35 | 2018-10-20 23:51:19 | 2018-10-21 09:25:00 | n |
| 137917 | IIEES | ILBA | E | 522.9 | 0.25 | 2018-10-20 23:51:24 | 2018-10-21 09:25:00 | n |
| 137918 | IIEES | ILBA | N | 543.5 | 0.35 | 2018-10-20 23:51:24 | 2018-10-21 09:25:00 | n |
| 137919 | IIEES | ASAO | N | 22.7 | 0.72 | 2018-10-20 23:52:32 | 2018-10-21 09:25:00 | n |
| 137920 | IIEES | KHMZ | E | 28.4 | 0.6 | 2018-10-20 23:52:38 | 2018-10-21 09:25:00 | n |
| 137921 | IIEES | KHMZ | N | 22.9 | 0.7 | 2018-10-20 23:52:41 | 2018-10-21 09:25:00 | n |
| 137922 | IIEES | GHVR | E | 13.1 | 0.62 | 2018-10-20 23:53:08 | 2018-10-21 09:25:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2018-10-20 23:51:01 | -0.42 | y | 110 | 62 | |
| IIEES | SNGE | N | Sg | E | 2018-10-20 23:51:16 | 0.16 | y | 110 | 62 | |
| IIEES | ILBA | Z | Pg | E | 2018-10-20 23:51:02 | 0.06 | y | 111 | 184 | |
| IIEES | ILBA | N | Sg | E | 2018-10-20 23:51:16 | -0.03 | y | 111 | 184 | |
| IIEES | ZNJK | Z | Pn | E | 2018-10-20 23:51:30 | 0.13 | y | 314 | 43 | |
| IIEES | ASAO | Z | Pn | E | 2018-10-20 23:51:34 | 0.27 | y | 344 | 90 | |
| IIEES | KHMZ | Z | Pn | E | 2018-10-20 23:51:35 | 0.04 | y | 353 | 105 | |
| IIEES | GIDE | Z | Pn | E | 2018-10-20 23:51:42 | -0.22 | y | 415 | 51 | |
| IIEES | GHVR | Z | Pn | E | 2018-10-20 23:51:47 | -0.2 | y | 456 | 91 | |
| IIEES | GRMI | Z | Pn | E | 2018-10-20 23:51:52 | 0.36 | y | 486 | 17 | |
| IIEES | MAKU | Z | Pn | E | 2018-10-20 23:51:58 | -0.16 | y | 544 | 345 |
