Magnitude |
2.8 |
| Date & Time (UTC) | 2018-10-28 23:29:20.5 |
| Date & Time (Local) | 1397/8/7 02:59:20.5 |

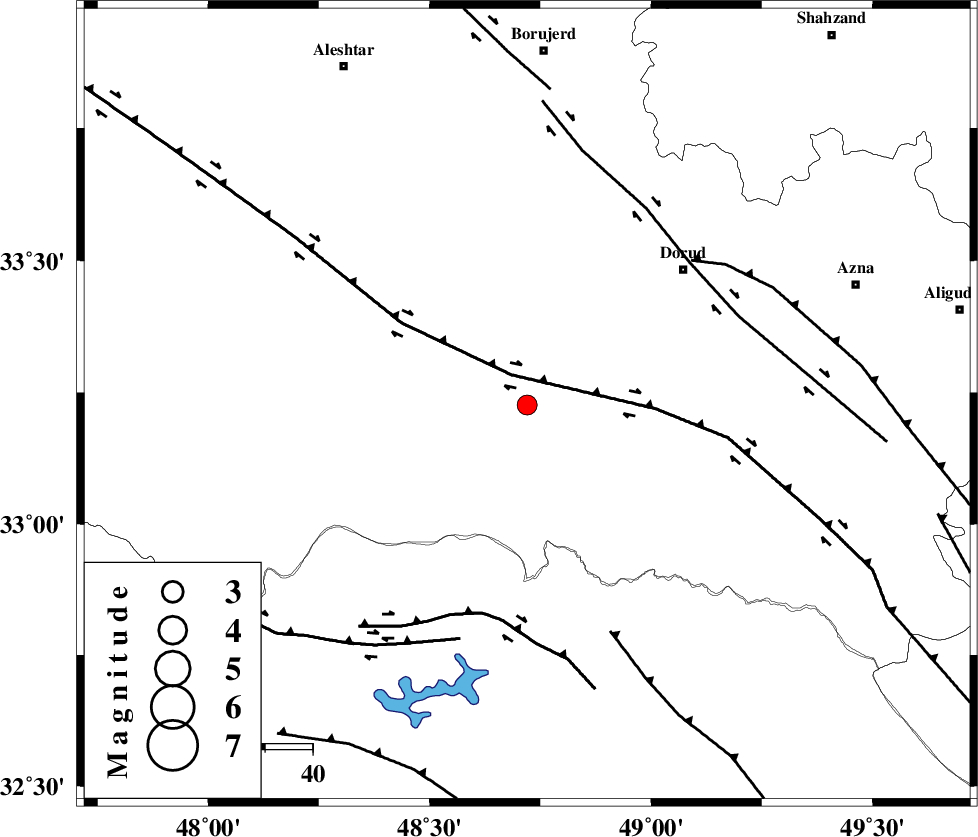

| Location | Lat:33.226 Lon: 48.72 |
| Region | Lorestan Province, 43 km South-West of Dorud |
Nearest Cities |
|
| 10 km North of Chamsangar, Lorestan Province | |
| 20 km South of Emanabad, Lorestan Province | |
| 23 km West of Sartang barzeh, Lorestan Province | |
| 28 km North West of Bargsar, Lorestan Province | |
| 31 km South of Zagheh, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 7 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 45 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 45 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 4.4 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 138119 | IIEES | KHMZ | E | 153.8 | 0.57 | 2018-10-28 23:30:08 | 2018-10-29 11:52:00 | n |
| 138120 | IIEES | ASAO | E | 69.2 | 0.49 | 2018-10-28 23:30:22 | 2018-10-29 11:52:00 | n |
| 138121 | IIEES | ASAO | N | 80.6 | 0.55 | 2018-10-28 23:30:23 | 2018-10-29 11:52:00 | n |
| 138122 | IIEES | ILBA | N | 63.9 | 0.54 | 2018-10-28 23:30:37 | 2018-10-29 11:52:00 | n |
| 138123 | IIEES | ILBA | E | 107.4 | 0.42 | 2018-10-28 23:30:39 | 2018-10-29 11:52:00 | n |
| 138124 | IIEES | SNGE | N | 40.6 | 0.36 | 2018-10-28 23:30:36 | 2018-10-29 11:52:00 | n |
| 138125 | IIEES | SNGE | E | 42.3 | 0.56 | 2018-10-28 23:30:36 | 2018-10-29 11:52:00 | n |
| 138126 | IIEES | GHVR | E | 44 | 0.41 | 2018-10-28 23:30:48 | 2018-10-29 11:52:00 | n |
| 138127 | IIEES | GHVR | N | 45 | 0.53 | 2018-10-28 23:30:52 | 2018-10-29 11:52:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2018-10-28 23:29:41 | -0.62 | y | 129 | 63 | |
| IIEES | ASAO | Z | Pg | E | 2018-10-28 23:29:51 | -0.07 | y | 190 | 39 | |
| IIEES | ASAO | E | Sg | E | 2018-10-28 23:30:15 | 0.43 | y | 190 | 39 | |
| IIEES | ILBA | Z | Pn | E | 2018-10-28 23:29:57 | 0.24 | y | 238 | 281 | |
| IIEES | SNGE | Z | Pn | E | 2018-10-28 23:29:58 | 0.03 | y | 243 | 329 | |
| IIEES | SNGE | N | Sg | E | 2018-10-28 23:30:29 | -0.15 | y | 243 | 329 | |
| IIEES | GHVR | Z | Pn | E | 2018-10-28 23:30:01 | 0 | y | 272 | 59 | |
| IIEES | CHTH | Z | Pn | E | 2018-10-28 23:30:14 | 0.01 | y | 370 | 36 | |
| IIEES | ZNJK | Z | Pn | E | 2018-10-28 23:30:15 | -0.17 | y | 382 | 360 | |
| IIEES | NASN | Z | Pn | E | 2018-10-28 23:30:16 | 0.25 | y | 385 | 96 | |
| IIEES | DAMV | Z | Pn | E | 2018-10-28 23:30:18 | 0.09 | y | 401 | 47 |
