Magnitude |
3.6 |
| Date & Time (UTC) | 2018-11-11 13:49:19.3 |
| Date & Time (Local) | 1397/8/20 17:19:19.3 |

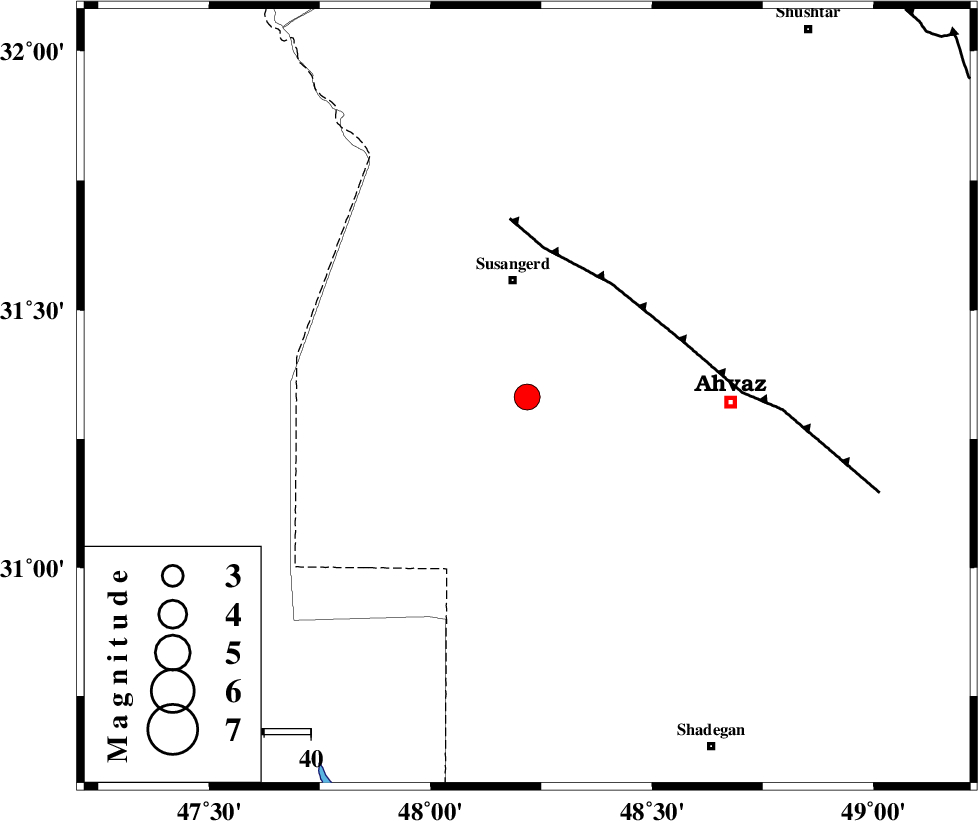

| Location | Lat:31.331 Lon: 48.218 |
| Region | Khoozestan Province, 25 km South of Susangerd |
Nearest Cities |
|
| 20 km South East of Hoveizeh, Khoozestan Province | |
| 23 km South of Jalaliyeh, Khoozestan Province | |
| 25 km South of Susangerd, Khoozestan Province | |
| 26 km South West of Hamidiyeh, Khoozestan Province | |
| 28 km South West of Dehkade, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 30 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 98 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 116 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | 4.7 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 138332 | IIEES | ILBA | E | 250.5 | 0.43 | 2018-11-11 13:50:57 | 2018-11-12 09:26:00 | n |
| 138333 | IIEES | ILBA | N | 271.8 | 0.74 | 2018-11-11 13:51:02 | 2018-11-12 09:26:00 | n |
| 138334 | IIEES | AHRM | E | 60 | 0.4 | 2018-11-11 13:51:27 | 2018-11-12 09:26:00 | n |
| 138335 | IIEES | AHRM | N | 64.3 | 0.66 | 2018-11-11 13:51:28 | 2018-11-12 09:26:00 | n |
| 138336 | IIEES | SNGE | N | 53.6 | 0.4 | 2018-11-11 13:51:07 | 2018-11-12 09:26:00 | n |
| 138337 | IIEES | GHVR | E | 39.5 | 0.38 | 2018-11-11 13:51:36 | 2018-11-12 09:26:00 | n |
| 138338 | IIEES | NASN | E | 39.2 | 0.44 | 2018-11-11 13:51:15 | 2018-11-12 09:26:00 | n |
| 138339 | IIEES | SRSL | E | 17.3 | 0.43 | 2018-11-11 13:51:46 | 2018-11-12 09:26:00 | n |
| 138340 | IIEES | SRSL | N | 21.9 | 0.31 | 2018-11-11 13:51:49 | 2018-11-12 09:26:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-11-11 13:50:06 | 0.5 | y | 313 | 31 | |
| IIEES | ILBA | Z | Pn | E | 2018-11-11 13:50:06 | -0.31 | y | 317 | 324 | |
| IIEES | ASAO | Z | Pn | E | 2018-11-11 13:50:16 | 0.57 | y | 395 | 25 | |
| IIEES | AHRM | Z | Pn | E | 2018-11-11 13:50:17 | 0.47 | y | 403 | 132 | |
| IIEES | SNGE | Z | Pn | E | 2018-11-11 13:50:20 | 0.45 | y | 425 | 349 | |
| IIEES | GHVR | Z | Pn | E | 2018-11-11 13:50:22 | -0.11 | y | 450 | 38 | |
| IIEES | NASN | Z | Pn | E | 2018-11-11 13:50:24 | -0.35 | y | 463 | 68 | |
| IIEES | GHIR | Z | Pn | E | 2018-11-11 13:50:37 | -0.33 | y | 571 | 125 | |
| IIEES | CHTH | Z | Pn | E | 2018-11-11 13:50:38 | -0.44 | y | 575 | 27 | |
| IIEES | DAMV | Z | Pn | E | 2018-11-11 13:50:40 | -0.5 | y | 591 | 35 | |
| IIEES | SRSL | Z | Pn | E | 2018-11-11 13:50:41 | -0.25 | y | 600 | 335 | |
| IIEES | YZKH | Z | Pn | E | 2018-11-11 13:50:43 | -0.28 | y | 614 | 77 |
