Magnitude |
2.8 |
| Date & Time (UTC) | 2018-11-20 02:56:51.7 |
| Date & Time (Local) | 1397/8/29 06:26:51.7 |

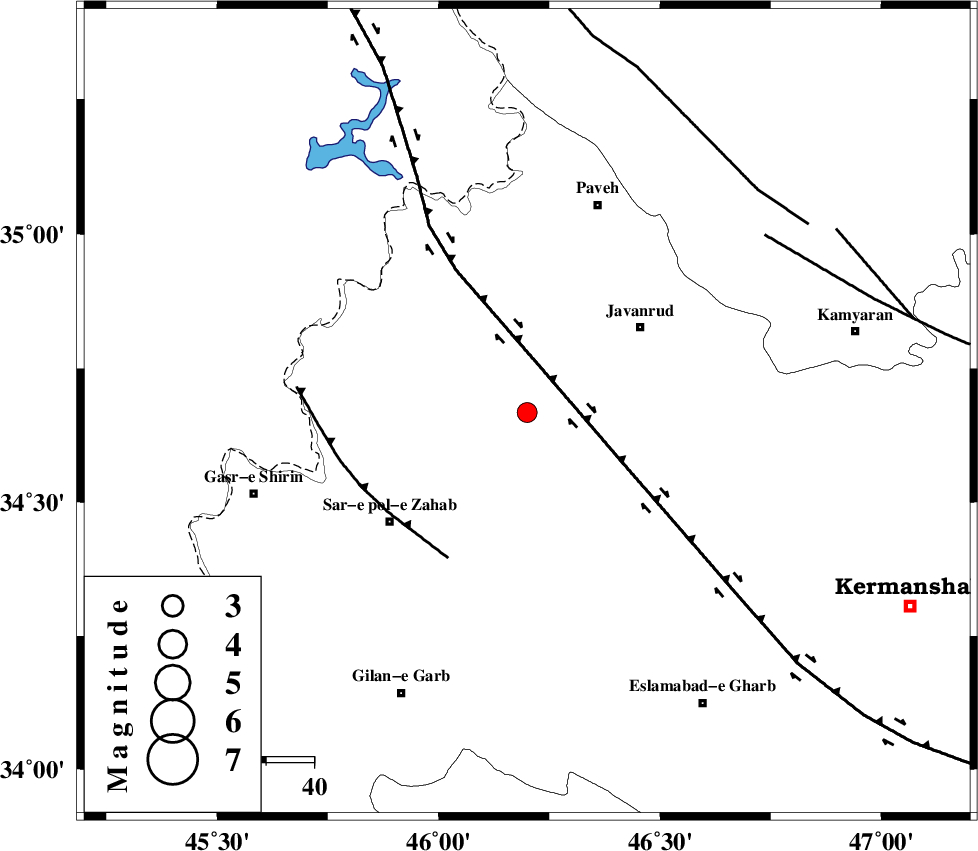

| Location | Lat:34.668 Lon: 46.2 |
| Region | Kermanshah Province, 29 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Qolqoleh, Kermanshah Province | |
| 10 km West of Mirabad, Kermanshah Province | |
| 21 km South of Shervineh, Kermanshah Province | |
| 22 km North West of Zavleh olia, Kermanshah Province | |
| 25 km West of Dolatabad, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 10 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 34 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 61 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 2.6 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 138516 | IIEES | ILBA | E | 209.8 | 0.49 | 2018-11-20 02:57:33 | 2018-11-20 10:04:00 | n |
| 138517 | IIEES | ILBA | N | 200.8 | 0.49 | 2018-11-20 02:57:33 | 2018-11-20 10:04:00 | n |
| 138518 | IIEES | SRSL | E | 84.4 | 0.72 | 2018-11-20 02:57:54 | 2018-11-20 10:04:00 | n |
| 138519 | IIEES | SRSL | N | 137.4 | 0.28 | 2018-11-20 02:57:55 | 2018-11-20 10:04:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2018-11-20 02:57:11 | -0.08 | y | 115 | 65 | |
| IIEES | SNGE | N | Sg | E | 2018-11-20 02:57:26 | -0.27 | y | 115 | 65 | |
| IIEES | ILBA | Z | Pg | E | 2018-11-20 02:57:11 | -0.26 | y | 116 | 180 | |
| IIEES | SRSL | Z | Pg | E | 2018-11-20 02:57:23 | -0.37 | y | 185 | 338 | |
| IIEES | SRSL | N | Sg | E | 2018-11-20 02:57:47 | 0.25 | y | 185 | 338 | |
| IIEES | ASAO | Z | Pn | E | 2018-11-20 02:57:44 | 0.38 | y | 351 | 91 | |
| IIEES | KHMZ | Z | Pn | E | 2018-11-20 02:57:45 | 0.49 | y | 362 | 105 |
