Magnitude |
3.9 |
| Date & Time (UTC) | 2018-12-04 09:32:55.9 |
| Date & Time (Local) | 1397/9/13 13:02:55.9 |

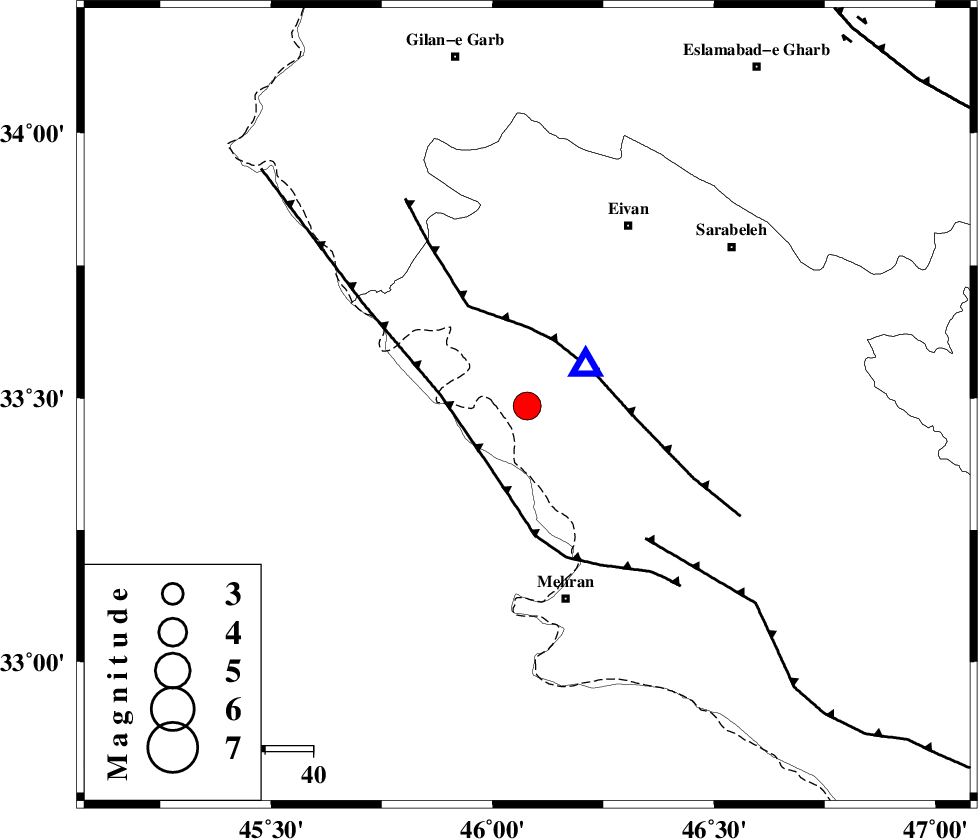

| Location | Lat:33.485 Lon: 46.078 |
| Region | Ilam Province, 41 km North of Mehran |
Nearest Cities |
|
| 10 km North West of Salehabad, Ilam Province | |
| 29 km South West of Chavar, Ilam Province | |
| 37 km North West of Mehr, Ilam Province | |
| 37 km South West of Ilam, Ilam Province | |
| 37 km North West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 15 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 18 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 37 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | 9.6 km |
| Error in Longitude | 9 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 138979 | IIEES | ILBA | N | 43556 | 0.25 | 2018-12-04 09:33:03 | 2018-12-04 10:44:00 | n |
| 138980 | IIEES | ILBA | E | 82649.7 | 0.36 | 2018-12-04 09:33:03 | 2018-12-04 10:44:00 | n |
| 138981 | IIEES | SNGE | N | 504.5 | 0.46 | 2018-12-04 09:34:01 | 2018-12-04 10:44:00 | n |
| 138982 | IIEES | SNGE | E | 572.9 | 0.61 | 2018-12-04 09:34:02 | 2018-12-04 10:44:00 | n |
| 138983 | IIEES | SRSL | N | 407.9 | 0.49 | 2018-12-04 09:34:20 | 2018-12-04 10:44:00 | n |
| 138984 | IIEES | SRSL | E | 278.3 | 0.37 | 2018-12-04 09:34:29 | 2018-12-04 10:44:00 | n |
| 138985 | IIEES | GHVR | E | 77.3 | 0.46 | 2018-12-04 09:35:00 | 2018-12-04 10:44:00 | n |
| 138986 | IIEES | GHVR | N | 51.1 | 0.66 | 2018-12-04 09:35:00 | 2018-12-04 10:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-12-04 09:32:59 | 0 | y | 19.6 | 38 | |
| IIEES | SNGE | Z | Pn | E | 2018-12-04 09:33:30 | 0.06 | y | 213 | 33 | |
| IIEES | SRSL | Z | Pn | E | 2018-12-04 09:33:42 | 0.07 | y | 308 | 349 | |
| IIEES | KHMZ | Z | Pn | E | 2018-12-04 09:33:49 | -0.14 | y | 362 | 84 | |
| IIEES | ASAO | Z | Pn | E | 2018-12-04 09:33:52 | 0.27 | y | 383 | 71 | |
| IIEES | ZNJK | Z | Pn | E | 2018-12-04 09:33:57 | 0.11 | y | 426 | 33 | |
| IIEES | GHVR | Z | Pn | E | 2018-12-04 09:34:03 | -1.41 | n | 4 | 490 | 76 |
| IIEES | CHTH | Z | Pn | E | 2018-12-04 09:34:10 | -0.29 | y | 535 | 58 | |
| IIEES | DAMV | Z | Pn | E | 2018-12-04 09:34:17 | 0.1 | y | 591 | 65 | |
| IIEES | GRMI | Z | Pn | E | 2018-12-04 09:34:20 | -0.33 | y | 613 | 15 |
