Magnitude |
3.7 |
| Date & Time (UTC) | 2018-12-04 20:23:58.0 |
| Date & Time (Local) | 1397/9/13 23:53:58.0 |

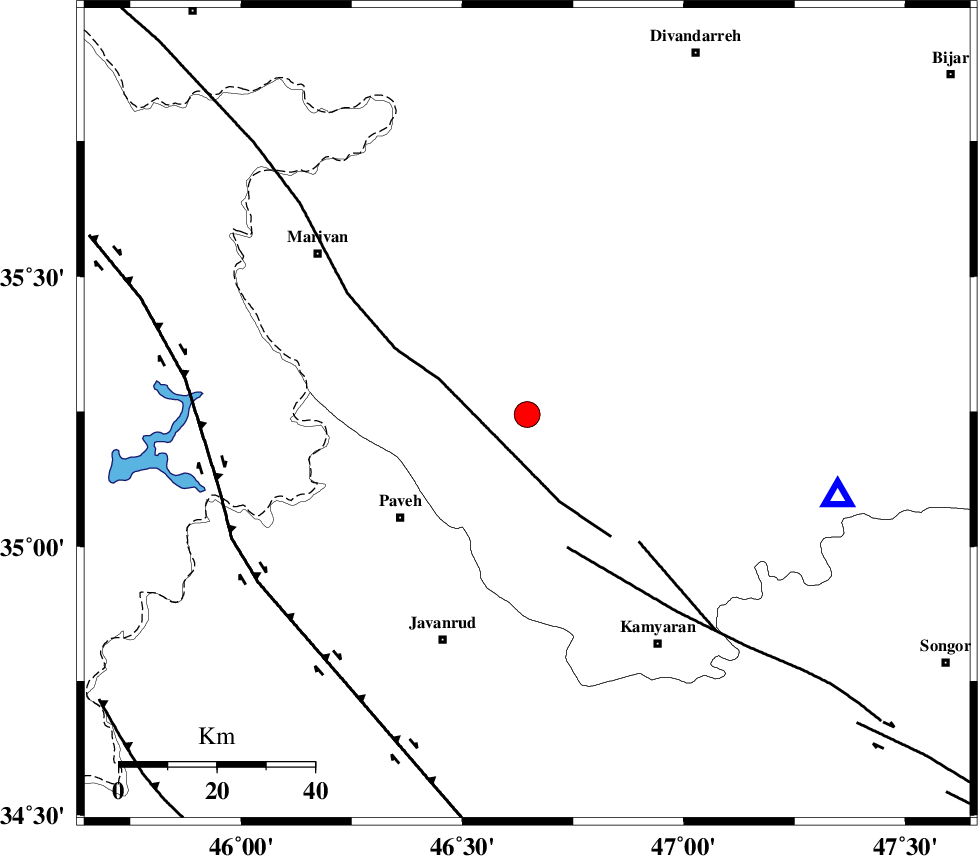

| Location | Lat:35.245 Lon: 46.646 |
| Region | Kurdistan Province, 33 km -West of Sanandaj |
Nearest Cities |
|
| 1 km of Avihang, Kurdistan Province | |
| 3 km North of Bisaran, Kurdistan Province | |
| 12 km North of Baygalan, Kurdistan Province | |
| 13 km East of Nagol, Kurdistan Province | |
| 15 km North West of Turivar, Kurdistan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 19 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 29 km | |
| MORVARID_F (Length: 24 km) , Distance to epicenter: 35 km | |
| Number of Phases | 18 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | 2.4 km |
| Error in Longitude | 3 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 139020 | IIEES | SNGE | N | 3537.9 | 0.58 | 2018-12-04 20:24:22 | 2018-12-05 10:00:00 | n |
| 139021 | IIEES | SNGE | E | 3263.1 | 0.31 | 2018-12-04 20:24:23 | 2018-12-05 10:00:00 | n |
| 139022 | IIEES | SRSL | N | 913.1 | 0.46 | 2018-12-04 20:24:51 | 2018-12-05 10:00:00 | n |
| 139023 | IIEES | SRSL | E | 738.1 | 0.66 | 2018-12-04 20:24:55 | 2018-12-05 10:00:00 | n |
| 139024 | IIEES | ILBA | E | 1705.5 | 0.58 | 2018-12-04 20:24:59 | 2018-12-05 10:00:00 | n |
| 139025 | IIEES | ILBA | N | 1384.7 | 0.47 | 2018-12-04 20:25:06 | 2018-12-05 10:00:00 | n |
| 139026 | IIEES | KHMZ | E | 113.5 | 0.62 | 2018-12-04 20:25:46 | 2018-12-05 10:00:00 | n |
| 139027 | IIEES | KHMZ | N | 126.7 | 0.37 | 2018-12-04 20:25:47 | 2018-12-05 10:00:00 | n |
| 139028 | IIEES | GIDE | N | 159.2 | 0.64 | 2018-12-04 20:25:52 | 2018-12-05 10:00:00 | n |
| 139029 | IIEES | GIDE | E | 153.7 | 0.73 | 2018-12-04 20:25:57 | 2018-12-05 10:00:00 | n |
| 139030 | IIEES | GHVR | N | 65.7 | 0.75 | 2018-12-04 20:26:10 | 2018-12-05 10:00:00 | n |
| 139031 | IIEES | GHVR | E | 96 | 0.54 | 2018-12-04 20:26:13 | 2018-12-05 10:00:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2018-12-04 20:24:09 | -0.37 | y | 66.1 | 105 | |
| IIEES | SNGE | N | Sg | E | 2018-12-04 20:24:17 | -0.54 | y | 66.1 | 105 | |
| IIEES | SRSL | Z | Pg | E | 2018-12-04 20:24:24 | -0.53 | y | 153 | 315 | |
| IIEES | SRSL | N | Sg | E | 2018-12-04 20:24:43 | -0.19 | y | 153 | 315 | |
| IIEES | ILBA | Z | Pg | E | 2018-12-04 20:24:29 | 0.11 | y | 184 | 193 | |
| IIEES | ILBA | N | Sg | E | 2018-12-04 20:24:52 | -0.03 | y | 184 | 193 | |
| IIEES | ZNJK | Z | Pn | E | 2018-12-04 20:24:36 | -0.11 | y | 243 | 49 | |
| IIEES | ASAO | Z | Pn | E | 2018-12-04 20:24:48 | 2.15 | n | 4 | 318 | 103 |
| IIEES | KHMZ | Z | Pn | E | 2018-12-04 20:24:50 | 0.7 | y | 347 | 118 | |
| IIEES | GIDE | Z | Pn | E | 2018-12-04 20:24:50 | 0.13 | y | 348 | 57 | |
| IIEES | THKV | Z | Pn | E | 2018-12-04 20:24:55 | 0.47 | y | 391 | 78 | |
| IIEES | GRMI | Z | Pn | E | 2018-12-04 20:24:58 | 0.73 | y | 411 | 15 | |
| IIEES | GHVR | Z | Pn | E | 2018-12-04 20:25:00 | 0.23 | y | 429 | 100 | |
| IIEES | DAMV | Z | Pn | E | 2018-12-04 20:25:06 | -0.4 | y | 485 | 83 | |
| IIEES | MAKU | Z | Pn | E | 2018-12-04 20:25:07 | 0.21 | y | 488 | 340 | |
| IIEES | NASN | Z | Pn | E | 2018-12-04 20:25:25 | 0.44 | y | 630 | 114 | |
| IIEES | YZKH | Z | Pn | E | 2018-12-04 20:25:45 | -0.62 | y | 800 | 111 | |
| IIEES | AHRM | Z | Pn | E | 2018-12-04 20:25:49 | -0.15 | y | 832 | 147 |
