Magnitude |
2.9 |
| Date & Time (UTC) | 2018-12-13 03:43:46.2 |
| Date & Time (Local) | 1397/9/22 07:13:46.2 |
| Location | Lat:30.768 Lon: 56.79 |
| Region | Kerman Province, 22 km -East of Zarand |
Nearest Cities |
|
| 5 km North of Khankuk, Kerman Province | |
| 9 km of Hatkan, Kerman Province | |
| 14 km North East of Bahaabad, Kerman Province | |
| 18 km North West of Hejdak, Kerman Province | |
| 21 km North West of Chatrud, Kerman Province | |
| Depth | 14 km |
| Agency | |

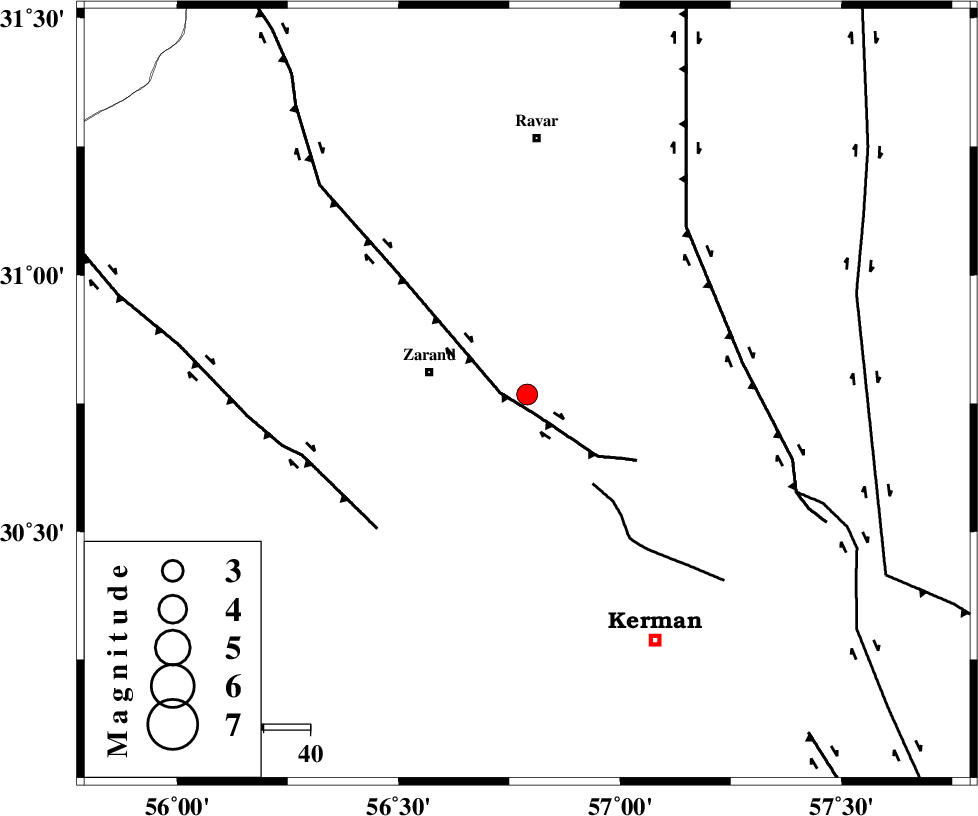

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 5 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 24 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 44 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 139376 | IIEES | KRBR | N | 350.4 | 0.23 | 2018-12-13 03:44:12 | 2018-12-17 07:22:00 | n |
| 139377 | IIEES | KRBR | E | 426.1 | 0.17 | 2018-12-13 03:44:13 | 2018-12-17 07:22:00 | n |
| 139378 | IIEES | BSRN | N | 38.6 | 0.58 | 2018-12-13 03:45:06 | 2018-12-17 07:22:00 | n |
| 139379 | IIEES | BSRN | E | 40.2 | 0.58 | 2018-12-13 03:45:09 | 2018-12-17 07:22:00 | n |
| 139380 | IIEES | YZKH | E | 69.8 | 0.39 | 2018-12-13 03:45:08 | 2018-12-17 07:22:00 | n |
| 139381 | IIEES | YZKH | N | 51 | 0.34 | 2018-12-13 03:45:09 | 2018-12-17 07:22:00 | n |
| 139382 | IIEES | TABS | N | 38 | 0.36 | 2018-12-13 03:45:24 | 2018-12-17 07:22:00 | n |
| 139383 | IIEES | NASN | E | 16.5 | 0.49 | 2018-12-13 03:45:56 | 2018-12-17 07:22:00 | n |
| 139384 | IIEES | NASN | N | 8.8 | 0.74 | 2018-12-13 03:46:00 | 2018-12-17 07:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2018-12-13 03:44:01 | -0.22 | y | 87.2 | 182 | |
| IIEES | BSRN | Z | Pn | E | 2018-12-13 03:44:26 | 0.26 | y | 259 | 59 | |
| IIEES | BSRN | N | Sg | E | 2018-12-13 03:44:59 | -0.24 | y | 259 | 59 | |
| IIEES | YZKH | Z | Pn | E | 2018-12-13 03:44:28 | 0.4 | y | 275 | 311 | |
| IIEES | YZKH | N | Sg | E | 2018-12-13 03:45:03 | -0.37 | y | 275 | 311 | |
| IIEES | TABS | Z | Pn | E | 2018-12-13 03:44:33 | 0.09 | y | 321 | 5 | |
| IIEES | NASN | Z | Pn | E | 2018-12-13 03:44:48 | 0.14 | y | 439 | 302 |
