Magnitude |
3.1 |
| Date & Time (UTC) | 2018-12-19 20:50:32.9 |
| Date & Time (Local) | 1397/9/29 00:20:32.9 |

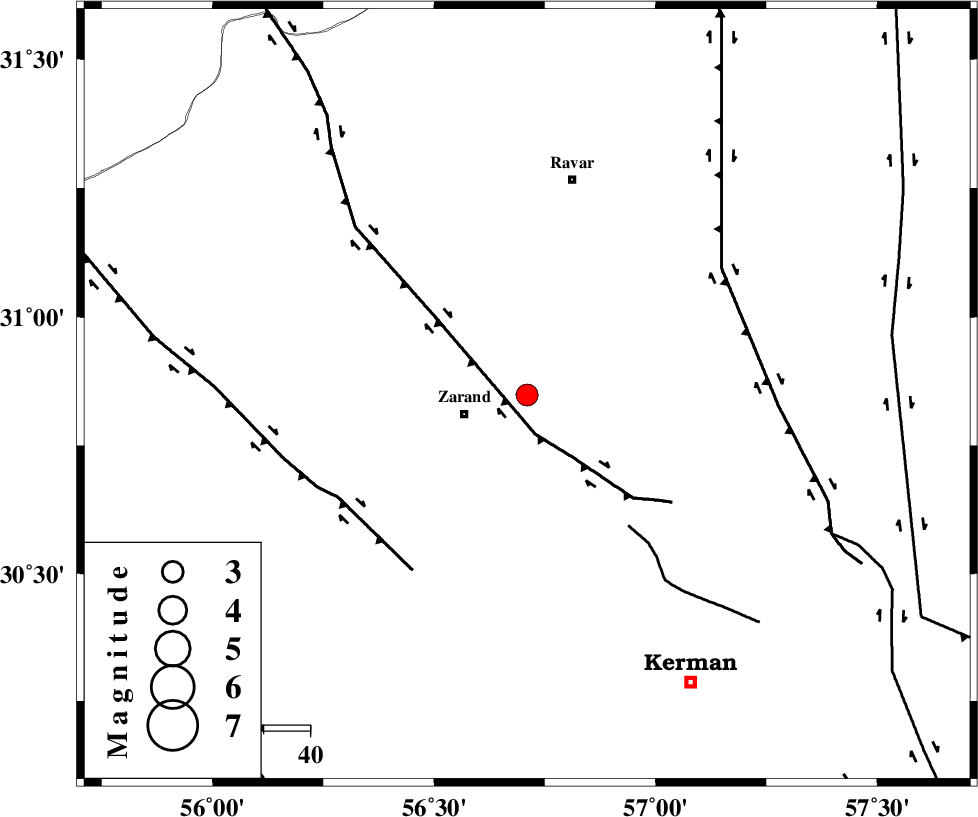

| Location | Lat:30.848 Lon: 56.71 |
| Region | Kerman Province, 14 km -East of Zarand |
Nearest Cities |
|
| 7 km North of Hatkan, Kerman Province | |
| 14 km North of Bahaabad, Kerman Province | |
| 14 km North East of Zarand, Kerman Province | |
| 16 km North of Khankuk, Kerman Province | |
| 17 km North East of Mohammadabad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 36 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 45 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 3 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 139516 | IIEES | BSRN | N | 67.8 | 0.46 | 2018-12-19 20:51:51 | 2018-12-22 09:58:00 | n |
| 139517 | IIEES | BSRN | E | 66.6 | 0.33 | 2018-12-19 20:51:55 | 2018-12-22 09:58:00 | n |
| 139518 | IIEES | YZKH | N | 118.2 | 0.25 | 2018-12-19 20:51:53 | 2018-12-22 09:58:00 | n |
| 139519 | IIEES | YZKH | E | 97.9 | 0.29 | 2018-12-19 20:51:54 | 2018-12-22 09:58:00 | n |
| 139520 | IIEES | TABS | N | 41.1 | 0.44 | 2018-12-19 20:52:12 | 2018-12-22 09:58:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2018-12-19 20:50:49 | -0.1 | y | 96.1 | 177 | |
| IIEES | BSRN | Z | Pn | E | 2018-12-19 20:51:13 | -0.13 | y | 261 | 61 | |
| IIEES | BSRN | N | S | E | 2018-12-19 20:51:42 | -0.17 | y | 261 | 61 | |
| IIEES | YZKH | Z | Pn | E | 2018-12-19 20:51:14 | 0.4 | y | 264 | 311 | |
| IIEES | YZKH | N | Sg | E | 2018-12-19 20:51:47 | -0.27 | y | 264 | 311 | |
| IIEES | TABS | Z | Pn | E | 2018-12-19 20:51:19 | 0.03 | y | 313 | 7 | |
| IIEES | ZHSF | Z | Pn | E | 2018-12-19 20:51:32 | 0 | y | 415 | 108 | |
| IIEES | NASN | Z | Pn | E | 2018-12-19 20:51:34 | -0.04 | y | 428 | 301 | |
| IIEES | SHRT | Z | Pn | E | 2018-12-19 20:51:37 | 0.38 | y | 458 | 46 |
