Magnitude |
2.7 |
| Date & Time (UTC) | 2019-01-11 11:31:43.3 |
| Date & Time (Local) | 1397/10/21 15:01:43.3 |

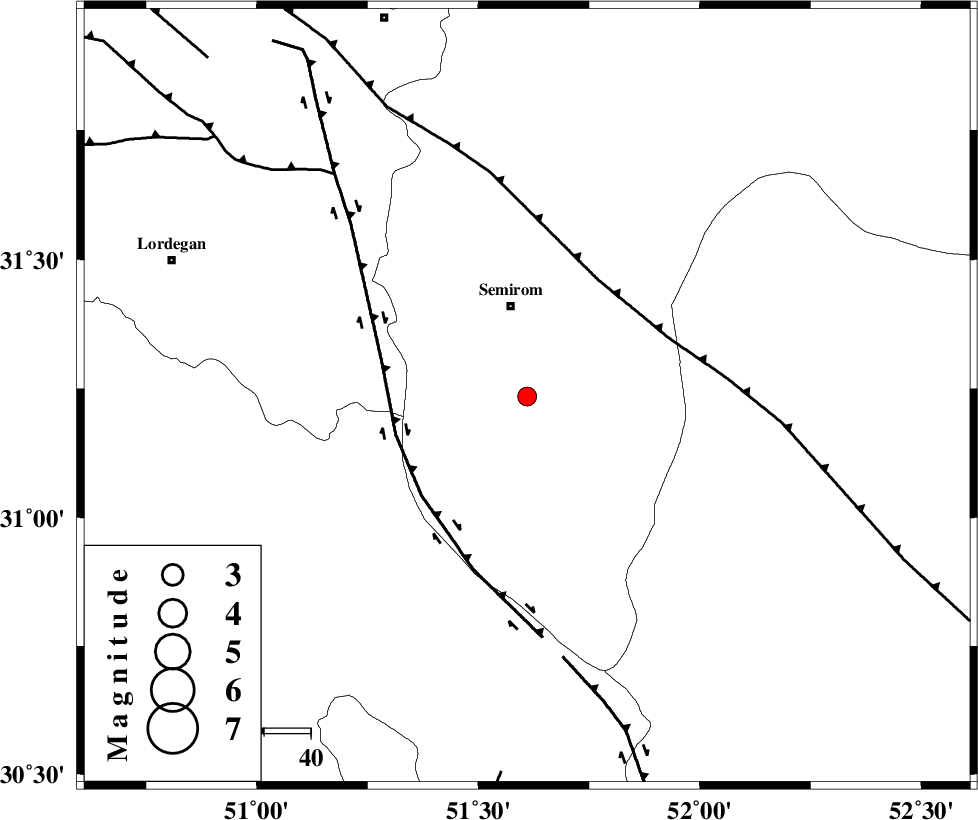

| Location | Lat:31.235 Lon: 51.61 |
| Region | Esfahan Province, 20 km South of Semirom |
Nearest Cities |
|
| 12 km North West of Hanae, Esfahan Province | |
| 19 km North of Kameh, Esfahan Province | |
| 20 km South of Semirom, Esfahan Province | |
| 30 km East of Malkhalifeh, Chaharmahal Bakhtiari Province | |
| 34 km North East of Meymand, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 29 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 29 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 57 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 140096 | IIEES | NASN | E | 42.5 | 0.77 | 2019-01-11 11:32:55 | 2019-01-12 12:11:00 | n |
| 140097 | IIEES | YZKH | N | 14.7 | 0.63 | 2019-01-11 11:33:12 | 2019-01-12 12:11:00 | n |
| 140098 | IIEES | YZKH | E | 21.3 | 0.56 | 2019-01-11 11:33:18 | 2019-01-12 12:11:00 | n |
| 140099 | IIEES | KHMZ | N | 19.5 | 0.57 | 2019-01-11 11:33:26 | 2019-01-12 12:11:00 | n |
| 140100 | IIEES | KHMZ | E | 19 | 0.57 | 2019-01-11 11:33:26 | 2019-01-12 12:11:00 | n |
| 140101 | IIEES | GHIR | N | 18.1 | 0.62 | 2019-01-11 11:33:24 | 2019-01-12 12:11:00 | n |
| 140102 | IIEES | ASAO | E | 15.9 | 0.6 | 2019-01-11 11:33:54 | 2019-01-12 12:11:00 | n |
| 140103 | IIEES | ASAO | N | 12.7 | 0.65 | 2019-01-11 11:33:58 | 2019-01-12 12:11:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | NASN | Z | Pn | E | 2019-01-11 11:32:17 | 0.29 | y | 207 | 33 | |
| IIEES | YZKH | Z | Pn | E | 2019-01-11 11:32:29 | -0.27 | y | 310 | 65 | |
| IIEES | KHMZ | Z | Pn | E | 2019-01-11 11:32:30 | -0.12 | y | 318 | 331 | |
| IIEES | GHIR | Z | Pn | E | 2019-01-11 11:32:34 | 0.07 | y | 353 | 157 | |
| IIEES | ASAO | Z | Pn | E | 2019-01-11 11:32:40 | 0.02 | y | 396 | 338 |
