Magnitude |
2.7 |
| Date & Time (UTC) | 2019-01-22 20:48:07.9 |
| Date & Time (Local) | 1397/11/3 00:18:07.9 |
| Location | Lat:31.394 Lon: 57.643 |
| Region | Kerman Province, 80 km North-East of Ravar |
Nearest Cities |
|
| 80 km North East of Ravar, Kerman Province | |
| 81 km North East of Dehali, Kerman Province | |
| 87 km South East of Hoz-e qorban, Yazd Province | |
| 95 km North East of Hejdak, Kerman Province | |
| 95 km North East of Harjand, Kerman Province | |
| Depth | 15 km |
| Agency | |

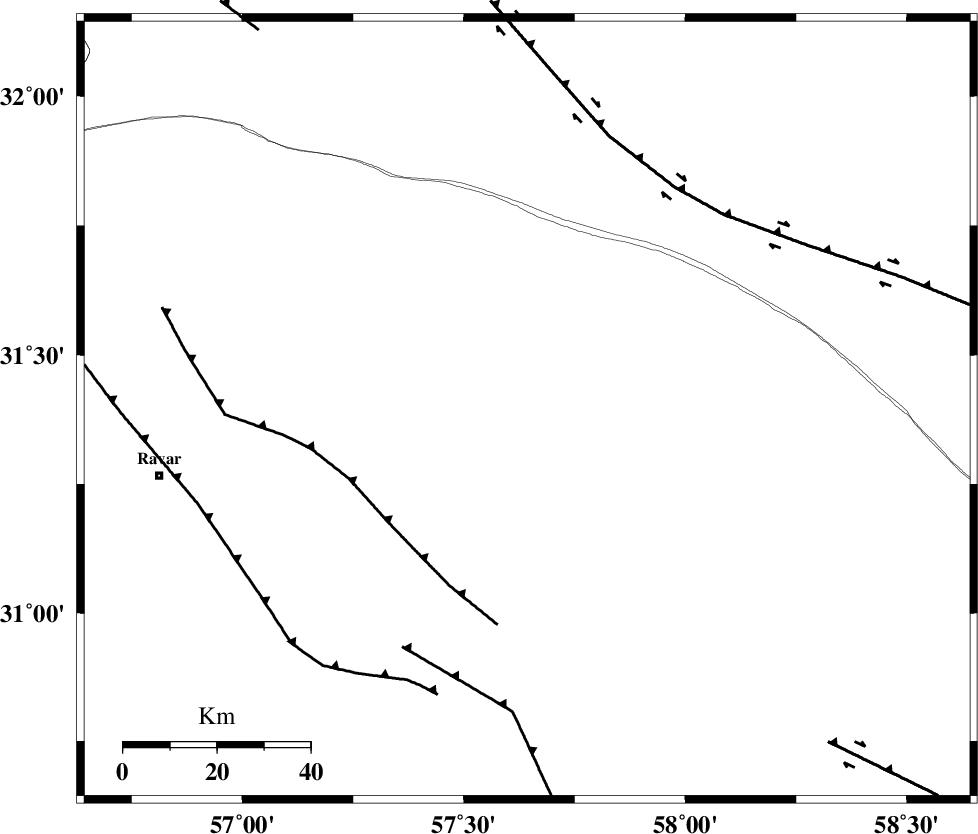

Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 18 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 51 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 94 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | 2.6 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 140473 | IIEES | BSRN | N | 73.7 | 0.21 | 2019-01-22 20:48:55 | 2019-01-23 08:39:00 | n |
| 140474 | IIEES | BSRN | E | 114.9 | 0.18 | 2019-01-22 20:48:56 | 2019-01-23 08:39:00 | n |
| 140475 | IIEES | KRBR | E | 127.2 | 0.13 | 2019-01-22 20:49:00 | 2019-01-23 08:39:00 | n |
| 140476 | IIEES | KRBR | N | 67.8 | 0.21 | 2019-01-22 20:49:01 | 2019-01-23 08:39:00 | n |
| 140477 | IIEES | TABS | N | 36.9 | 0.21 | 2019-01-22 20:49:20 | 2019-01-23 08:39:00 | n |
| 140478 | IIEES | YZKH | E | 16 | 0.37 | 2019-01-22 20:49:34 | 2019-01-23 08:39:00 | n |
| 140479 | IIEES | YZKH | N | 19.4 | 0.37 | 2019-01-22 20:49:35 | 2019-01-23 08:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BSRN | Z | Pg | E | 2019-01-22 20:48:33 | 0.07 | y | 154 | 65 | |
| IIEES | BSRN | N | Sg | E | 2019-01-22 20:48:52 | -0.04 | y | 154 | 65 | |
| IIEES | KRBR | Z | Pg | E | 2019-01-22 20:48:37 | -0.06 | y | 178 | 209 | |
| IIEES | KRBR | N | Sg | E | 2019-01-22 20:48:58 | 0.03 | y | 178 | 209 | |
| IIEES | TABS | Z | Pn | E | 2019-01-22 20:48:47 | -0.02 | y | 255 | 349 | |
| IIEES | YZKH | Z | Pn | E | 2019-01-22 20:48:54 | 0.01 | y | 309 | 292 | |
| IIEES | SHRT | Z | Pn | E | 2019-01-22 20:48:59 | 0.01 | y | 352 | 44 |
