Magnitude |
3.5 |
| Date & Time (UTC) | 2019-01-23 05:04:04.1 |
| Date & Time (Local) | 1397/11/3 08:34:04.1 |

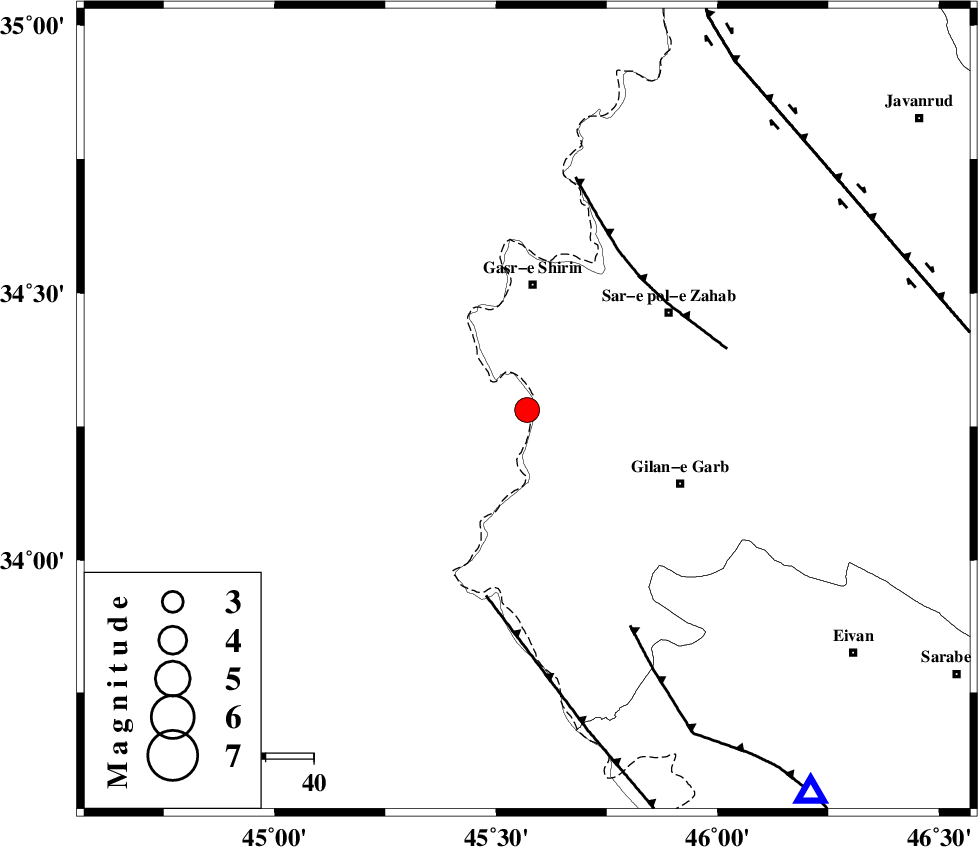

| Location | Lat:34.281 Lon: 45.57 |
| Region | Iraq, 26 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 16 km South of Khosravi, Kermanshah Province | |
| 18 km South of Seyyed sohrab, Kermanshah Province | |
| 26 km South of Qasr-E-Shirin, Kermanshah Province | |
| 27 km West of Chub baghan, Kermanshah Province | |
| 30 km South West of Qareh belagh, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 36 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 40 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 50 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | 2.8 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 140481 | IIEES | ILBA | N | 859.7 | 0.39 | 2019-01-23 05:04:39 | 2019-01-23 08:39:00 | n |
| 140482 | IIEES | SRSL | N | 986.7 | 0.35 | 2019-01-23 05:05:07 | 2019-01-23 08:39:00 | n |
| 140483 | IIEES | SRSL | E | 604.2 | 0.62 | 2019-01-23 05:05:12 | 2019-01-23 08:39:00 | n |
| 140484 | IIEES | GIDE | E | 29.8 | 0.76 | 2019-01-23 05:06:32 | 2019-01-23 08:39:00 | n |
| 140485 | IIEES | GIDE | N | 25.4 | 0.67 | 2019-01-23 05:06:36 | 2019-01-23 08:39:00 | n |
| 140486 | IIEES | GHVR | N | 16 | 0.67 | 2019-01-23 05:06:39 | 2019-01-23 08:39:00 | n |
| 140487 | IIEES | GHVR | E | 23.1 | 0.58 | 2019-01-23 05:06:49 | 2019-01-23 08:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2019-01-23 05:04:20 | -0.02 | y | 93.7 | 141 | |
| IIEES | SRSL | Z | Pn | E | 2019-01-23 05:04:38 | 0.07 | y | 215 | 357 | |
| IIEES | SRSL | N | Sg | E | 2019-01-23 05:05:05 | 0.02 | y | 215 | 357 | |
| IIEES | ZNJK | Z | Pn | E | 2019-01-23 05:04:59 | -0.33 | y | 388 | 46 | |
| IIEES | KHMZ | Z | Pn | E | 2019-01-23 05:05:02 | 0.01 | y | 410 | 97 | |
| IIEES | ASAO | Z | Pn | E | 2019-01-23 05:05:03 | 0.22 | y | 411 | 85 | |
| IIEES | GIDE | Z | Pn | E | 2019-01-23 05:05:13 | 0.32 | y | 490 | 52 | |
| IIEES | GHVR | Z | Pn | E | 2019-01-23 05:05:16 | -0.16 | y | 522 | 86 | |
| IIEES | GRMI | Z | Pn | E | 2019-01-23 05:05:19 | -0.17 | y | 544 | 22 |
