Magnitude |
4.5 |
| Date & Time (UTC) | 2019-01-22 23:50:26.0 |
| Date & Time (Local) | 1397/11/3 03:20:26.0 |

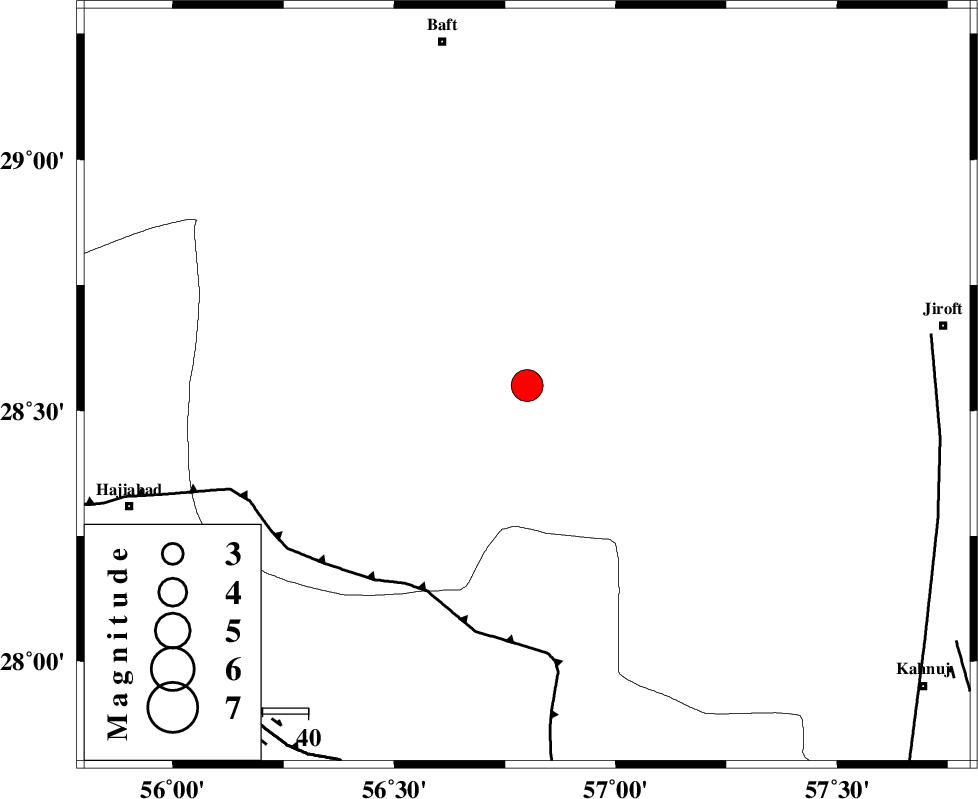

| Location | Lat:28.55 Lon: 56.8 |
| Region | Kerman Province, 78 km South-East of Baft |
Nearest Cities |
|
| 24 km North of Sarkhan, Kerman Province | |
| 33 km South West of Dolatabad, Kerman Province | |
| 42 km North East of Shahmaran, Kerman Province | |
| 45 km North East of Arzuieeh, Kerman Province | |
| 49 km South East of Kashkueyeh, Kerman Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 51 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 90 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 93 km | |
| Number of Phases | 22 |
| RMS | 0.6 |
| Number of Stations | 15 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 140856 | IIEES SC | BNDS | Z | 2800 | 1 | 2019-01-22 23:51:09 | 2019-01-29 09:04:00 | n |
| 140857 | IIEES SC | KRBR | Z | 1200 | 1 | 2019-01-22 23:51:20 | 2019-01-29 09:04:00 | n |
| 140858 | IIEES SC | BSRN | Z | 170 | 1 | 2019-01-22 23:52:40 | 2019-01-29 09:04:00 | n |
| 140859 | IIEES SC | YZKH | Z | 61 | 1 | 2019-01-22 23:53:18 | 2019-01-29 09:04:00 | n |
| 140860 | IIEES SC | SRVN | Z | 22 | 1 | 2019-01-22 23:52:48 | 2019-01-29 09:04:00 | n |
| 140861 | IIEES SC | SRVN | Z | 17 | 0.76 | 2019-01-22 23:51:45 | 2019-01-29 09:04:00 | n |
| 140862 | IIEES SC | TABS | Z | 68 | 1 | 2019-01-22 23:53:29 | 2019-01-29 09:04:00 | n |
| 140863 | IIEES SC | TABS | Z | 43 | 0.76 | 2019-01-22 23:52:14 | 2019-01-29 09:04:00 | n |
| 140864 | IIEES SC | SHRT | Z | 24 | 1 | 2019-01-22 23:53:49 | 2019-01-29 09:04:00 | n |
| 140865 | IIEES SC | SHRT | Z | 19 | 0.93 | 2019-01-22 23:51:57 | 2019-01-29 09:04:00 | n |
| 140866 | IIEES SC | TBJM | Z | 13 | 1 | 2019-01-22 23:54:38 | 2019-01-29 09:04:00 | n |
| 140867 | IIEES SC | TBJM | Z | 12 | 1.09 | 2019-01-22 23:52:18 | 2019-01-29 09:04:00 | n |
| 140868 | IIEES SC | SHRO | Z | 11 | 1 | 2019-01-22 23:53:22 | 2019-01-29 09:04:00 | n |
| 140869 | IIEES SC | SHRO | Z | 7.4 | 1.18 | 2019-01-22 23:52:31 | 2019-01-29 09:04:00 | n |
| 140870 | IIEES SC | KHMZ | Z | 14 | 1 | 2019-01-22 23:53:51 | 2019-01-29 09:04:00 | n |
| 140871 | IIEES SC | KHMZ | Z | 7.5 | 0.65 | 2019-01-22 23:52:34 | 2019-01-29 09:04:00 | n |
| 140872 | IIEES SC | SBZV | Z | 11 | 1 | 2019-01-22 23:54:34 | 2019-01-29 09:04:00 | n |
| 140873 | IIEES SC | SBZV | Z | 6.4 | 0.99 | 2019-01-22 23:52:37 | 2019-01-29 09:04:00 | n |
| 140874 | IIEES SC | AKL | Z | 6.8 | 0.94 | 2019-01-22 23:52:35 | 2019-01-29 09:04:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | TABS | Z | IVmB_BB | 2019-01-22 23:52:44 | y | 1 | 567 | 3 | ||
| IIEES SC | BNDS | E | IS | I | 2019-01-22 23:51:08 | 0.4 | y | 144 | 206 | |
| IIEES SC | BNDS | Z | IP | I | 2019-01-22 23:50:49 | -0.3 | y | 144 | 206 | |
| IIEES SC | KRBR | Z | IP | I | 2019-01-22 23:50:52 | -0.5 | y | 155 | 359 | |
| IIEES SC | UOSS | Z | IP | I | 2019-01-22 23:51:28 | 3.8 | n | 4 | 400 | 188 |
| IIEES SC | ZHSF | N | IS | I | 2019-01-22 23:52:05 | -4 | n | 4 | 400 | 73 |
| IIEES SC | ZHSF | Z | IP | I | 2019-01-22 23:51:22 | -2.6 | n | 4 | 400 | 73 |
| IIEES SC | BSRN | Z | IP | I | 2019-01-22 23:51:28 | -0.9 | y | 444 | 31 | |
| IIEES SC | YZKH | Z | IP | I | 2019-01-22 23:51:34 | 1.1 | y | 478 | 334 | |
| IIEES SC | SRVN | Z | IP | I | 2019-01-22 23:51:44 | -0.2 | y | 567 | 103 | |
| IIEES SC | TABS | Z | IP | I | 2019-01-22 23:51:46 | 1.7 | y | 567 | 3 | |
| IIEES SC | KLNJ | E | IS | I | 2019-01-22 23:52:45 | -1.2 | y | 578 | 298 | |
| IIEES SC | KLNJ | Z | IP | I | 2019-01-22 23:51:50 | 4.6 | n | 4 | 578 | 298 |
| IIEES SC | SHRT | Z | IP | I | 2019-01-22 23:51:56 | 0.6 | y | 656 | 31 | |
| IIEES SC | TBJM | Z | IP | I | 2019-01-22 23:52:17 | 1.1 | y | 811 | 24 | |
| IIEES SC | SHRO | Z | IP | I | 2019-01-22 23:52:18 | 1.2 | y | 834 | 355 | |
| IIEES SC | KHMZ | E | IS | I | 2019-01-22 23:53:51 | 0 | y | 867 | 311 | |
| IIEES SC | KHMZ | Z | IP | I | 2019-01-22 23:52:22 | -0.1 | y | 867 | 311 | |
| IIEES SC | SBZV | Z | IP | I | 2019-01-22 23:52:24 | 1.4 | y | 878 | 5 | |
| IIEES SC | AKL | Z | IP | I | 2019-01-22 23:52:29 | 1.2 | y | 911 | 12 | |
| IIEES SC | RAYN | Z | IP | I | 2019-01-22 23:53:04 | -6.8 | n | 4 | 1256 | 244 |
| IIEES SC | SHRO | Z | IVmB_BB | 2019-01-22 23:53:11 | y | 1 | 834 | 355 |
