Magnitude |
4.8 |
| Date & Time (UTC) | 2019-02-09 21:26:22.7 |
| Date & Time (Local) | 1397/11/21 00:56:22.7 |

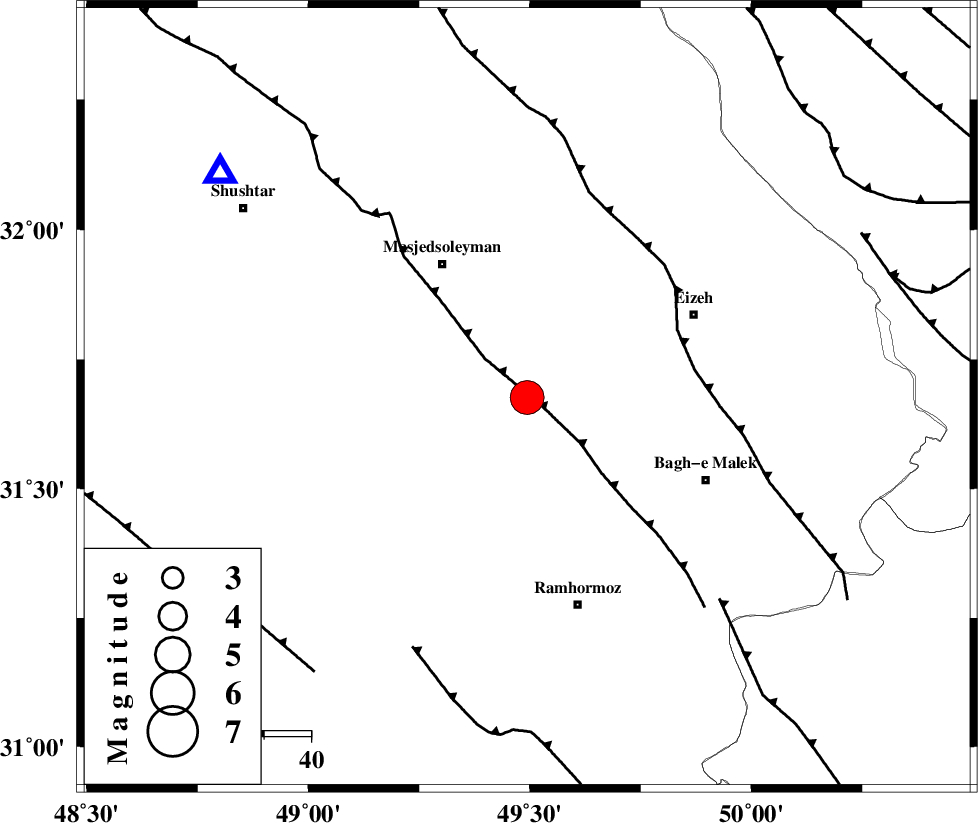

| Location | Lat:31.676 Lon: 49.494 |
| Region | Khoozestan Province, 34 km South-East of Masjed Soleyman |
Nearest Cities |
|
| 15 km North of Jaru, Khoozestan Province | |
| 17 km North East of Gazin, Khoozestan Province | |
| 26 km North of Haftgol, Khoozestan Province | |
| 30 km South West of Chenarestan, Khoozestan Province | |
| 33 km North West of Midavood-e sofla, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 3 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 35 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 59 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 15 |
| Error in Latitude | 5 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 141112 | IIEES | KHMZ | E | 9068 | 0.56 | 2019-02-09 21:27:31 | 2019-02-12 08:34:00 | n |
| 141113 | IIEES | KHMZ | N | 4326.6 | 0.49 | 2019-02-09 21:27:31 | 2019-02-12 08:34:00 | n |
| 141114 | IIEES | ASAO | N | 2189.5 | 0.69 | 2019-02-09 21:27:59 | 2019-02-12 08:34:00 | n |
| 141115 | IIEES | ASAO | E | 2657.1 | 0.41 | 2019-02-09 21:28:07 | 2019-02-12 08:34:00 | n |
| 141116 | IIEES | GHVR | E | 2147.1 | 0.6 | 2019-02-09 21:28:11 | 2019-02-12 08:34:00 | n |
| 141117 | IIEES | GHVR | N | 2129.1 | 0.34 | 2019-02-09 21:28:19 | 2019-02-12 08:34:00 | n |
| 141118 | IIEES | SNGE | N | 1510.8 | 0.3 | 2019-02-09 21:28:11 | 2019-02-12 08:34:00 | n |
| 141119 | IIEES | SNGE | E | 1256 | 0.53 | 2019-02-09 21:28:34 | 2019-02-12 08:34:00 | n |
| 141120 | IIEES | THKV | E | 436.6 | 0.44 | 2019-02-09 21:28:45 | 2019-02-12 08:34:00 | n |
| 141121 | IIEES | THKV | N | 517.7 | 0.7 | 2019-02-09 21:28:54 | 2019-02-12 08:34:00 | n |
| 141122 | IIEES | DAMV | N | 926.5 | 0.85 | 2019-02-09 21:28:49 | 2019-02-12 08:34:00 | n |
| 141123 | IIEES | DAMV | E | 512.3 | 0.63 | 2019-02-09 21:28:52 | 2019-02-12 08:34:00 | n |
| 141124 | IIEES | GIDE | N | 299.9 | 0.6 | 2019-02-09 21:29:22 | 2019-02-12 08:34:00 | n |
| 141125 | IIEES | GIDE | E | 364.4 | 0.5 | 2019-02-09 21:29:27 | 2019-02-12 08:34:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | EPn | E | 2019-02-09 21:26:59 | 0.44 | y | 233 | 11 | |
| IIEES | ASAO | Z | EPn | E | 2019-02-09 21:27:11 | 0.52 | y | 322 | 9 | |
| IIEES | NASN | Z | EPn | E | 2019-02-09 21:27:12 | -0.18 | y | 336 | 67 | |
| IIEES | GHVR | Z | EPn | E | 2019-02-09 21:27:14 | 0.98 | y | 351 | 27 | |
| IIEES | AHRM | Z | EPn | E | 2019-02-09 21:27:15 | 0.53 | y | 357 | 150 | |
| IIEES | ILBA | Z | EPn | E | 2019-02-09 21:27:16 | -0.39 | y | 376 | 306 | |
| IIEES | SNGE | Z | EPn | E | 2019-02-09 21:27:23 | -0.19 | y | 428 | 333 | |
| IIEES | THKV | Z | EPn | E | 2019-02-09 21:27:31 | 0.13 | y | 487 | 15 | |
| IIEES | YZKH | Z | EPn | E | 2019-02-09 21:27:30 | -0.74 | y | 488 | 79 | |
| IIEES | CHTH | Z | EPn | E | 2019-02-09 21:27:31 | -0.38 | y | 493 | 17 | |
| IIEES | DAMV | Z | EPn | E | 2019-02-09 21:27:31 | -0.45 | y | 495 | 27 | |
| IIEES | GHIR | Z | EPn | E | 2019-02-09 21:27:31 | -1.49 | n | 4 | 505 | 137 |
| IIEES | GIDE | Z | EPn | E | 2019-02-09 21:27:42 | -0.33 | y | 583 | 4 | |
| IIEES | SRSL | Z | EPn | E | 2019-02-09 21:27:48 | -0.19 | y | 628 | 324 | |
| IIEES | TABS | Z | EPn | E | 2019-02-09 21:28:02 | -0.74 | y | 748 | 71 | |
| IIEES | ZHSF | Z | EPn | E | 2019-02-09 21:28:47 | -0.18 | y | 1105 | 99 |
