Magnitude |
3.3 |
| Date & Time (UTC) | 2019-02-16 22:50:18.7 |
| Date & Time (Local) | 1397/11/28 02:20:18.7 |

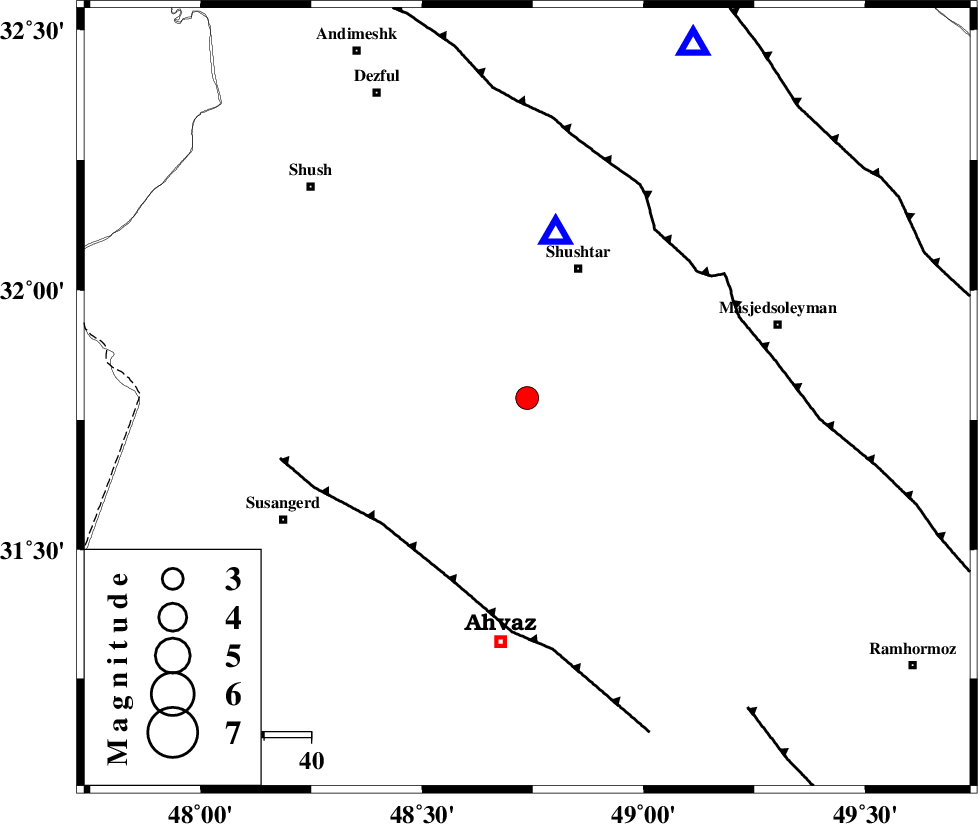

| Location | Lat:31.792 Lon: 48.737 |
| Region | Khoozestan Province, 30 km South-West of Shushtar |
Nearest Cities |
|
| 15 km West of Arabhasan, Khoozestan Province | |
| 20 km South West of Mehdiabad, Khoozestan Province | |
| 25 km South of Sardarabad, Khoozestan Province | |
| 27 km North West of Mollasani, Khoozestan Province | |
| 29 km North West of Talieh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 41 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 45 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 81 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | 3.9 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 141175 | IIEES | KHMZ | N | 99.6 | 0.52 | 2019-02-16 22:51:34 | 2019-02-17 06:53:00 | n |
| 141176 | IIEES | KHMZ | E | 159.9 | 0.62 | 2019-02-16 22:51:36 | 2019-02-17 06:53:00 | n |
| 141177 | IIEES | ILBA | N | 174.4 | 0.54 | 2019-02-16 22:51:51 | 2019-02-17 06:53:00 | n |
| 141178 | IIEES | ILBA | E | 179.5 | 0.66 | 2019-02-16 22:51:58 | 2019-02-17 06:53:00 | n |
| 141179 | IIEES | ASAO | N | 49.5 | 0.5 | 2019-02-16 22:52:02 | 2019-02-17 06:53:00 | n |
| 141180 | IIEES | ASAO | E | 44.4 | 0.62 | 2019-02-16 22:52:06 | 2019-02-17 06:53:00 | n |
| 141181 | IIEES | GHVR | E | 56.7 | 0.5 | 2019-02-16 22:52:17 | 2019-02-17 06:53:00 | n |
| 141182 | IIEES | GHVR | N | 34 | 0.58 | 2019-02-16 22:52:26 | 2019-02-17 06:53:00 | n |
| 141183 | IIEES | AHRM | N | 27.8 | 0.37 | 2019-02-16 22:52:27 | 2019-02-17 06:53:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | EPn | E | 2019-02-16 22:50:57 | 0.36 | y | 245 | 28 | |
| IIEES | ILBA | Z | EPn | E | 2019-02-16 22:51:05 | 0.09 | y | 312 | 311 | |
| IIEES | ASAO | Z | EPn | E | 2019-02-16 22:51:07 | 0.06 | y | 328 | 21 | |
| IIEES | GHVR | Z | EPn | E | 2019-02-16 22:51:13 | 0.25 | y | 379 | 37 | |
| IIEES | SNGE | Z | EPn | E | 2019-02-16 22:51:15 | 0.27 | y | 388 | 341 | |
| IIEES | NASN | Z | EPn | E | 2019-02-16 22:51:16 | 0.39 | y | 399 | 73 | |
| IIEES | AHRM | Z | EPn | E | 2019-02-16 22:51:16 | 0.05 | y | 407 | 142 | |
| IIEES | THKV | Z | EPn | E | 2019-02-16 22:51:28 | -0.3 | y | 498 | 23 | |
| IIEES | CHTH | Z | EPn | E | 2019-02-16 22:51:29 | -0.47 | y | 507 | 25 | |
| IIEES | DAMV | Z | EPn | E | 2019-02-16 22:51:31 | -0.19 | y | 521 | 34 | |
| IIEES | YZKH | Z | EPn | E | 2019-02-16 22:51:35 | -0.61 | y | 557 | 82 | |
| IIEES | SRSL | Z | EPn | E | 2019-02-16 22:51:37 | -0.48 | y | 577 | 329 |
