Magnitude |
3.2 |
| Date & Time (UTC) | 2019-04-26 04:30:19.2 |
| Date & Time (Local) | 1398/2/6 09:00:19.2 |

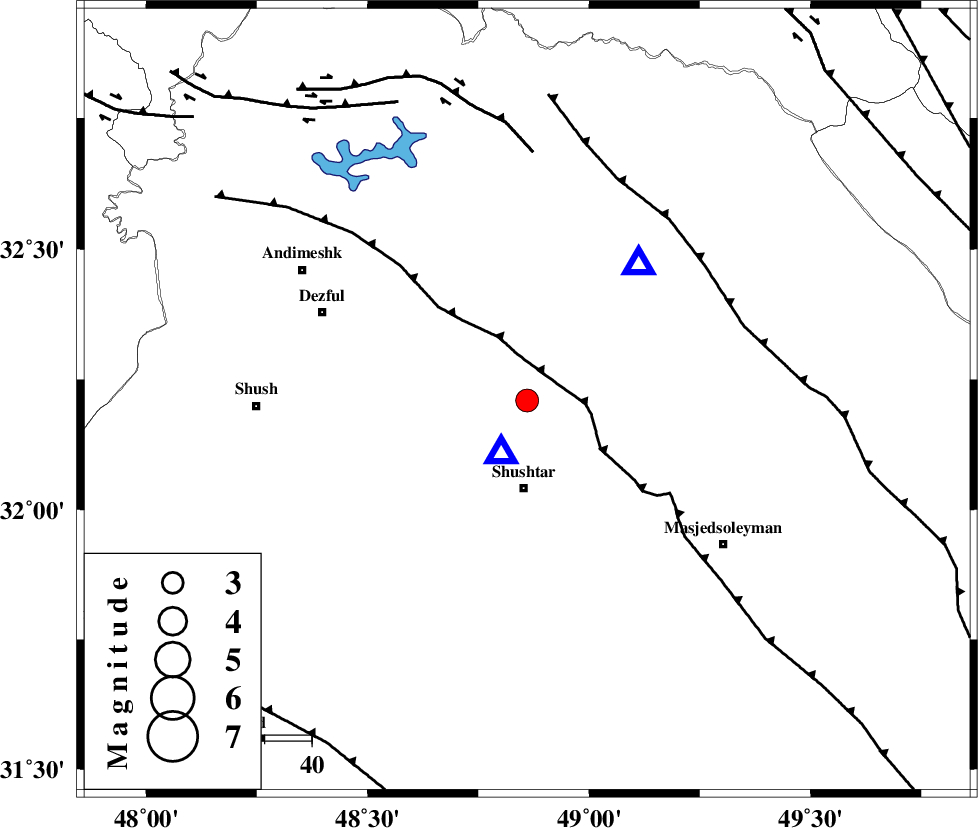

| Location | Lat:32.21 Lon: 48.86 |
| Region | Khoozestan Province, 19 km North of Shushtar |
Nearest Cities |
|
| 1 km North of Samaleh, Khoozestan Province | |
| 6 km of Gatvand, Khoozestan Province | |
| 19 km North of Shushtar, Khoozestan Province | |
| 21 km North West of Haft shahidan, Khoozestan Province | |
| 23 km North of Sardarabad, Khoozestan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 7 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 47 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 53 km | |
| Number of Phases | 23 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 142172 | IIEES SC | GTMR | Z | 5900 | 1 | 2019-04-26 04:30:32 | 2019-04-26 02:44:00 | n |
| 142173 | IIEES SC | ASAO | Z | 120 | 1 | 2019-04-26 04:32:00 | 2019-04-26 02:44:00 | n |
| 142174 | IIEES SC | KLNJ | Z | 110 | 1 | 2019-04-26 04:32:01 | 2019-04-26 02:44:00 | n |
| 142175 | IIEES SC | SNGE | Z | 60 | 1 | 2019-04-26 04:32:01 | 2019-04-26 02:44:00 | n |
| 142176 | IIEES SC | NASN | Z | 31 | 1 | 2019-04-26 04:31:16 | 2019-04-26 02:44:00 | n |
| 142177 | IIEES SC | CHTH | Z | 23 | 1 | 2019-04-26 04:31:42 | 2019-04-26 02:44:00 | n |
| 142178 | IIEES SC | DAMV | Z | 25 | 1 | 2019-04-26 04:31:46 | 2019-04-26 02:44:00 | n |
| 142179 | IIEES SC | ZNJK | Z | 11 | 1 | 2019-04-26 04:33:24 | 2019-04-26 02:44:00 | n |
| 142180 | IIEES SC | YZKH | Z | 14 | 1 | 2019-04-26 04:31:36 | 2019-04-26 02:44:00 | n |
| 142181 | IIEES SC | SRSL | Z | 51 | 1 | 2019-04-26 04:32:35 | 2019-04-26 02:44:00 | n |
| 142182 | IIEES SC | GLO | Z | 31 | 1 | 2019-04-26 04:31:53 | 2019-04-26 02:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | GTMR | N | IS | I | 2019-04-26 04:30:31 | -0.1 | y | 33 | 39 | |
| IIEES SC | GTMR | Z | IP | I | 2019-04-26 04:30:26 | 0 | y | 33 | 39 | |
| IIEES SC | ASAO | Z | IP | I | 2019-04-26 04:31:03 | 0.4 | y | 278 | 23 | |
| IIEES SC | KLNJ | Z | IP | I | 2019-04-26 04:31:04 | -0.1 | y | 289 | 117 | |
| IIEES SC | SNGE | Z | IP | I | 2019-04-26 04:31:11 | 0.1 | y | 344 | 336 | |
| IIEES SC | NASN | Z | IP | I | 2019-04-26 04:31:15 | 0.5 | y | 378 | 80 | |
| IIEES SC | CHTH | Z | IP | I | 2019-04-26 04:31:25 | -0.2 | y | 455 | 27 | |
| IIEES SC | DAMV | Z | IP | I | 2019-04-26 04:31:26 | -0.8 | y | 478 | 37 | |
| IIEES SC | ZNJK | Z | IP | I | 2019-04-26 04:31:29 | -0.4 | y | 500 | 358 | |
| IIEES SC | YZKH | Z | IP | I | 2019-04-26 04:31:34 | -0.5 | y | 544 | 88 | |
| IIEES SC | SRSL | Z | IP | I | 2019-04-26 04:31:35 | 0.1 | y | 544 | 325 | |
| IIEES SC | GLO | Z | IP | I | 2019-04-26 04:31:50 | 0.5 | y | 656 | 44 | |
| IIEES SC | GTMR | 430 | 2019-04-26 04:30:32 | y | 33 | 39 | ||||
| IIEES SC | ASAO | 431 | 2019-04-26 04:31:49 | y | 278 | 23 | ||||
| IIEES SC | KLNJ | 432 | 2019-04-26 04:32:02 | y | 289 | 117 | ||||
| IIEES SC | SNGE | 432 | 2019-04-26 04:32:07 | y | 344 | 336 | ||||
| IIEES SC | NASN | 432 | 2019-04-26 04:32:13 | y | 378 | 80 | ||||
| IIEES SC | CHTH | 432 | 2019-04-26 04:32:00 | y | 455 | 27 | ||||
| IIEES SC | DAMV | 432 | 2019-04-26 04:32:56 | y | 478 | 37 | ||||
| IIEES SC | ZNJK | 432 | 2019-04-26 04:32:23 | y | 500 | 358 | ||||
| IIEES SC | YZKH | 433 | 2019-04-26 04:33:09 | y | 544 | 88 | ||||
| IIEES SC | SRSL | 432 | 2019-04-26 04:32:34 | y | 544 | 325 | ||||
| IIEES SC | GLO | 433 | 2019-04-26 04:33:31 | y | 656 | 44 |
