Magnitude |
3.7 |
| Date & Time (UTC) | 2019-06-10 08:21:57.5 |
| Date & Time (Local) | 1398/3/20 12:51:57.5 |

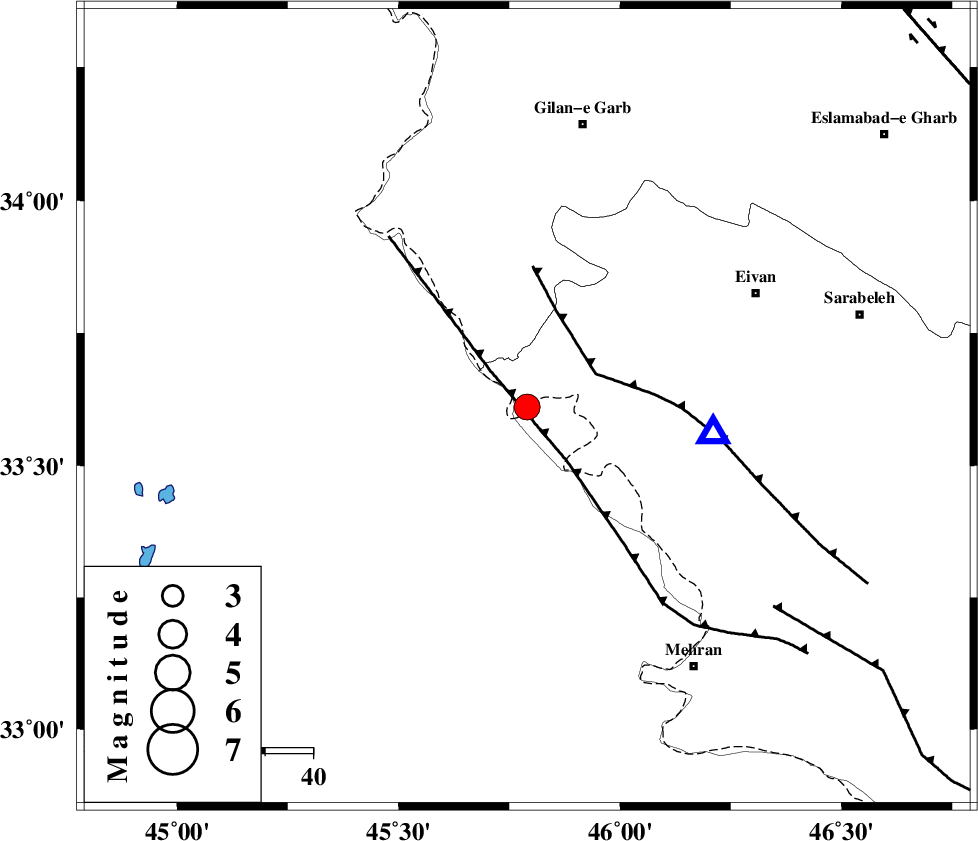

| Location | Lat:33.61 Lon: 45.79 |
| Region | Ilam Province, 60 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 33 km South East of Sumar, Kermanshah Province | |
| 40 km North West of Salehabad, Ilam Province | |
| 45 km West of Chavar, Ilam Province | |
| 49 km South West of Teran, Ilam Province | |
| 49 km South West of Nian, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 11 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 16 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 66 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 5 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 142992 | IIEES SC | ILBA | Z | 1500 | 1 | 2019-06-10 08:22:24 | 2019-06-11 12:17:00 | n |
| 142993 | IIEES SC | KGS1 | Z | 3300 | 1 | 2019-06-10 08:22:40 | 2019-06-11 12:17:00 | n |
| 142994 | IIEES SC | SNGE | Z | 480 | 1 | 2019-06-10 08:23:02 | 2019-06-11 12:17:00 | n |
| 142995 | IIEES SC | GTMR | Z | 100 | 1 | 2019-06-10 08:23:55 | 2019-06-11 12:17:00 | n |
| 142996 | IIEES SC | KHMZ | Z | 49 | 1 | 2019-06-10 08:24:14 | 2019-06-11 12:17:00 | n |
| 142997 | IIEES SC | ASAO | Z | 67 | 1 | 2019-06-10 08:24:01 | 2019-06-11 12:17:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | ILBA | Z | IP | I | 2019-06-10 08:22:04 | 0 | y | 33 | 87 | |
| IIEES SC | KGS1 | Z | IP | I | 2019-06-10 08:22:14 | 0 | y | 100 | 349 | |
| IIEES SC | SNGE | Z | IP | I | 2019-06-10 08:22:32 | -0.1 | y | 222 | 41 | |
| IIEES SC | GTMR | Z | IP | I | 2019-06-10 08:22:46 | -0.1 | y | 333 | 112 | |
| IIEES SC | KHMZ | Z | IP | I | 2019-06-10 08:22:53 | 0 | y | 389 | 88 | |
| IIEES SC | ASAO | Z | IP | I | 2019-06-10 08:22:56 | 1.3 | y | 400 | 75 | |
| IIEES SC | ILBA | 822 | 2019-06-10 08:22:25 | y | 33 | 87 | ||||
| IIEES SC | KGS1 | 822 | 2019-06-10 08:22:41 | y | 100 | 349 | ||||
| IIEES SC | SNGE | 823 | 2019-06-10 08:23:07 | y | 222 | 41 | ||||
| IIEES SC | GTMR | 823 | 2019-06-10 08:23:49 | y | 333 | 112 | ||||
| IIEES SC | KHMZ | 824 | 2019-06-10 08:24:03 | y | 389 | 88 | ||||
| IIEES SC | ASAO | 824 | 2019-06-10 08:24:10 | y | 400 | 75 |
