Magnitude |
3.9 |
| Date & Time (UTC) | 2019-06-12 00:45:58.1 |
| Date & Time (Local) | 1398/3/22 05:15:58.1 |

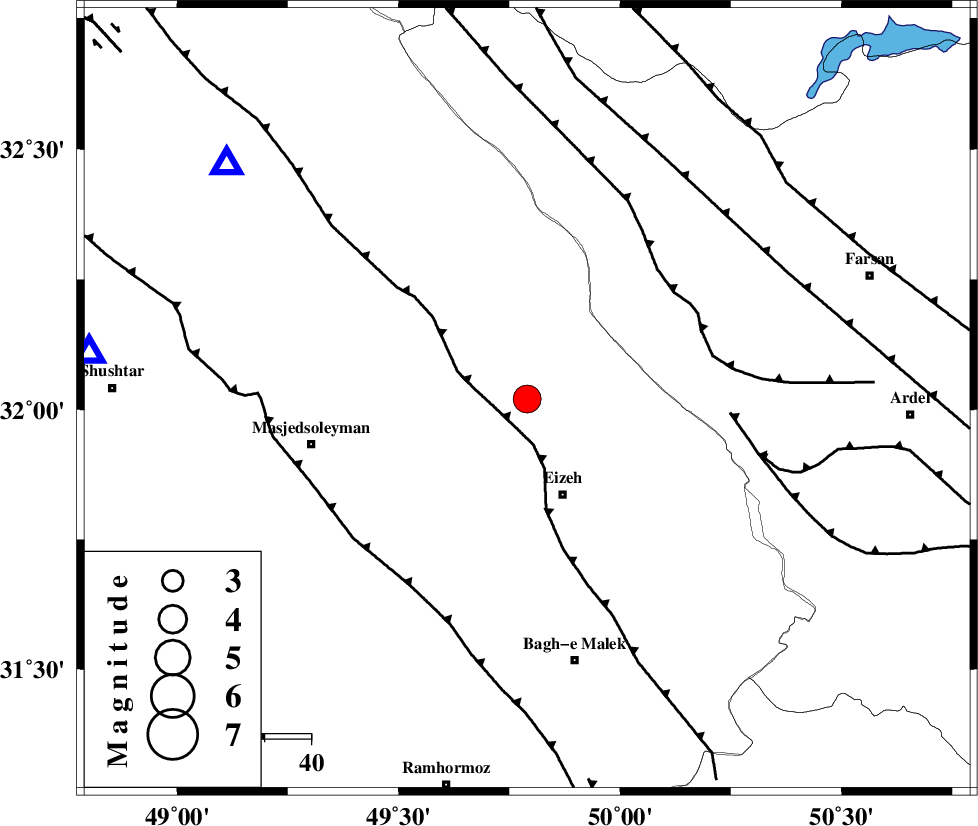

| Location | Lat:32.02 Lon: 49.79 |
| Region | Khoozestan Province, 22 km North of Izeh |
Nearest Cities |
|
| 4 km North of Torshak, Khoozestan Province | |
| 17 km North of Rasvand, Khoozestan Province | |
| 22 km North of Izeh, Khoozestan Province | |
| 26 km North of Chenarestan, Khoozestan Province | |
| 37 km South East of Paabshalal, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 6 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 39 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 43 km | |
| Number of Phases | 35 |
| RMS | 0.6 |
| Number of Stations | 19 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 143004 | IIEES SC | GTMR | Z | 6400 | 1 | 2019-06-12 00:46:33 | 2019-06-12 12:01:00 | n |
| 143005 | IIEES SC | KHMZ | Z | 2200 | 1 | 2019-06-12 00:46:56 | 2019-06-12 12:01:00 | n |
| 143006 | IIEES SC | KLNJ | Z | 790 | 1 | 2019-06-12 00:47:06 | 2019-06-12 12:01:00 | n |
| 143007 | IIEES SC | ASAO | Z | 780 | 1 | 2019-06-12 00:47:25 | 2019-06-12 12:01:00 | n |
| 143008 | IIEES SC | BSR2 | Z | 550 | 1 | 2019-06-12 00:47:14 | 2019-06-12 12:01:00 | n |
| 143009 | IIEES SC | GHVR | Z | 740 | 1 | 2019-06-12 00:47:44 | 2019-06-12 12:01:00 | n |
| 143010 | IIEES SC | ILBA | Z | 260 | 1 | 2019-06-12 00:47:37 | 2019-06-12 12:01:00 | n |
| 143011 | IIEES SC | SNGE | Z | 200 | 1 | 2019-06-12 00:47:44 | 2019-06-12 12:01:00 | n |
| 143012 | IIEES SC | THKV | Z | 200 | 1 | 2019-06-12 00:48:26 | 2019-06-12 12:01:00 | n |
| 143013 | IIEES SC | DAMV | Z | 200 | 1 | 2019-06-12 00:48:23 | 2019-06-12 12:01:00 | n |
| 143014 | IIEES SC | CHTH | Z | 140 | 1 | 2019-06-12 00:48:21 | 2019-06-12 12:01:00 | n |
| 143015 | IIEES SC | YZKH | Z | 96 | 1 | 2019-06-12 00:48:37 | 2019-06-12 12:01:00 | n |
| 143016 | IIEES SC | SRSL | Z | 120 | 1 | 2019-06-12 00:48:27 | 2019-06-12 12:01:00 | n |
| 143017 | IIEES SC | SRSL | Z | 32 | 0.72 | 2019-06-12 00:47:51 | 2019-06-12 12:01:00 | n |
| 143018 | IIEES SC | TABS | Z | 43 | 1 | 2019-06-12 00:49:38 | 2019-06-12 12:01:00 | n |
| 143019 | IIEES SC | TABS | Z | 13 | 0.91 | 2019-06-12 00:48:01 | 2019-06-12 12:01:00 | n |
| 143020 | IIEES SC | SHRO | Z | 23 | 1 | 2019-06-12 00:47:36 | 2019-06-12 12:01:00 | n |
| 143021 | IIEES SC | SHRO | Z | 20 | 0.82 | 2019-06-12 00:47:36 | 2019-06-12 12:01:00 | n |
| 143022 | IIEES SC | SBZV | Z | 13 | 1 | 2019-06-12 00:48:30 | 2019-06-12 12:01:00 | n |
| 143023 | IIEES SC | SBZV | Z | 8.4 | 0.9 | 2019-06-12 00:48:17 | 2019-06-12 12:01:00 | n |
| 143024 | IIEES SC | SHRT | Z | 9.5 | 1 | 2019-06-12 00:49:15 | 2019-06-12 12:01:00 | n |
| 143025 | IIEES SC | SHRT | Z | 3.8 | 1.24 | 2019-06-12 00:48:19 | 2019-06-12 12:01:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | GTMR | N | IS | I | 2019-06-12 00:46:23 | 0.7 | y | 77 | 308 | |
| IIEES SC | GTMR | Z | IP | I | 2019-06-12 00:46:11 | -1 | y | 77 | 308 | |
| IIEES SC | KHMZ | N | IS | I | 2019-06-12 00:46:54 | 1.1 | y | 189 | 5 | |
| IIEES SC | KHMZ | Z | IP | I | 2019-06-12 00:46:29 | 0.4 | y | 189 | 5 | |
| IIEES SC | KLNJ | Z | IP | I | 2019-06-12 00:46:31 | -0.1 | y | 200 | 123 | |
| IIEES SC | ASAO | Z | IP | I | 2019-06-12 00:46:42 | 0.6 | y | 278 | 4 | |
| IIEES SC | BSR2 | Z | IP | I | 2019-06-12 00:46:41 | 0.2 | y | 278 | 227 | |
| IIEES SC | GHVR | Z | IP | I | 2019-06-12 00:46:45 | 1.2 | y | 300 | 26 | |
| IIEES SC | ILBA | Z | IP | I | 2019-06-12 00:46:52 | -1.4 | y | 378 | 298 | |
| IIEES SC | SNGE | Z | IP | I | 2019-06-12 00:46:56 | -1.1 | y | 411 | 326 | |
| IIEES SC | THKV | Z | IP | I | 2019-06-12 00:47:02 | 0.6 | y | 444 | 13 | |
| IIEES SC | DAMV | Z | IP | I | 2019-06-12 00:47:01 | -0.6 | y | 444 | 27 | |
| IIEES SC | CHTH | Z | IP | I | 2019-06-12 00:47:01 | -0.3 | y | 444 | 16 | |
| IIEES SC | YZKH | Z | IP | I | 2019-06-12 00:47:03 | 0.3 | y | 455 | 85 | |
| IIEES SC | SRSL | Z | IP | I | 2019-06-12 00:47:22 | 0 | y | 611 | 319 | |
| IIEES SC | TABS | Z | IP | I | 2019-06-12 00:47:33 | -0.8 | y | 711 | 75 | |
| IIEES SC | SHRO | Z | IP | I | 2019-06-12 00:47:35 | -0.5 | y | 722 | 52 | |
| IIEES SC | SBZV | Z | IP | I | 2019-06-12 00:47:53 | -0.8 | y | 867 | 56 | |
| IIEES SC | SHRT | Z | IP | I | 2019-06-12 00:48:11 | 0.6 | y | 1000 | 80 | |
| IIEES SC | GTMR | 046 | 2019-06-12 00:46:26 | y | 77 | 308 | ||||
| IIEES SC | KHMZ | 047 | 2019-06-12 00:47:01 | y | 189 | 5 | ||||
| IIEES SC | KLNJ | 047 | 2019-06-12 00:47:11 | y | 200 | 123 | ||||
| IIEES SC | ASAO | 047 | 2019-06-12 00:47:26 | y | 278 | 4 | ||||
| IIEES SC | BSR2 | 047 | 2019-06-12 00:47:34 | y | 278 | 227 | ||||
| IIEES SC | GHVR | 047 | 2019-06-12 00:47:13 | y | 300 | 26 | ||||
| IIEES SC | ILBA | 047 | 2019-06-12 00:47:26 | y | 378 | 298 | ||||
| IIEES SC | SNGE | 047 | 2019-06-12 00:47:56 | y | 411 | 326 | ||||
| IIEES SC | THKV | 048 | 2019-06-12 00:48:17 | y | 444 | 13 | ||||
| IIEES SC | DAMV | 048 | 2019-06-12 00:48:26 | y | 444 | 27 | ||||
| IIEES SC | CHTH | 048 | 2019-06-12 00:48:22 | y | 444 | 16 | ||||
| IIEES SC | YZKH | 048 | 2019-06-12 00:48:19 | y | 455 | 85 | ||||
| IIEES SC | SRSL | 048 | 2019-06-12 00:48:27 | y | 611 | 319 | ||||
| IIEES SC | TABS | 049 | 2019-06-12 00:49:41 | y | 711 | 75 | ||||
| IIEES SC | SHRO | 049 | 2019-06-12 00:49:14 | y | 722 | 52 | ||||
| IIEES SC | SBZV | 049 | 2019-06-12 00:49:45 | y | 867 | 56 |
