Magnitude |
3.8 |
| Date & Time (UTC) | 2019-06-14 04:21:02.9 |
| Date & Time (Local) | 1398/3/24 08:51:02.9 |

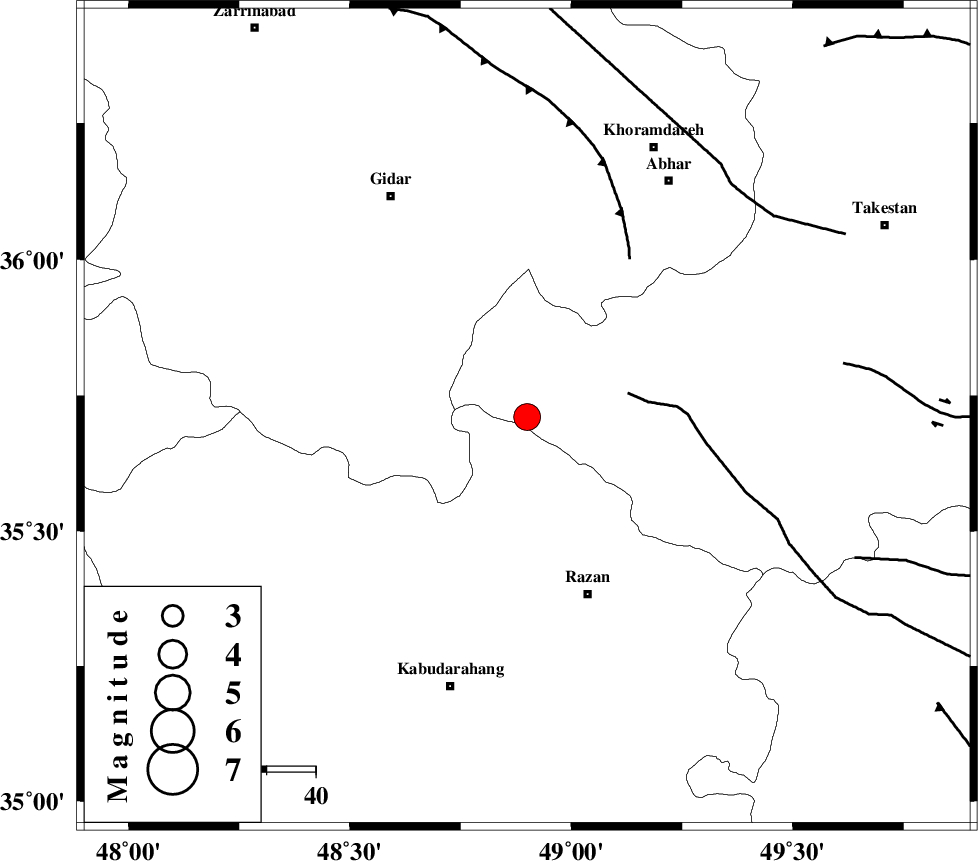

| Location | Lat:35.71 Lon: 48.9 |
| Region | Ghazvin Province, 38 km North-West of Razan |
Nearest Cities |
|
| 20 km North East of Kahla, Zanjan Province | |
| 23 km North East of Khorandeh, Hamedan Province | |
| 31 km North of Damag, Hamedan Province | |
| 33 km North East of Babanazar, Hamedan Province | |
| 33 km North West of Avaj, Ghazvin Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 21 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 38 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 63 km | |
| Number of Phases | 32 |
| RMS | 0.8 |
| Number of Stations | 16 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 143092 | IIEES SC | SNGE | Z | 990 | 1 | 2019-06-14 04:21:28 | 2019-06-16 08:50:00 | n |
| 143093 | IIEES SC | GIDE | Z | 5800 | 1 | 2019-06-14 04:21:55 | 2019-06-16 08:50:00 | n |
| 143094 | IIEES SC | ASAO | Z | 500 | 1 | 2019-06-14 04:21:50 | 2019-06-16 08:50:00 | n |
| 143095 | IIEES SC | CHTH | Z | 670 | 1 | 2019-06-14 04:22:03 | 2019-06-16 08:50:00 | n |
| 143096 | IIEES SC | KHMZ | Z | 1100 | 1 | 2019-06-14 04:22:13 | 2019-06-16 08:50:00 | n |
| 143097 | IIEES SC | GHVR | Z | 350 | 1 | 2019-06-14 04:22:30 | 2019-06-16 08:50:00 | n |
| 143098 | IIEES SC | DAMV | Z | 220 | 1 | 2019-06-14 04:22:27 | 2019-06-16 08:50:00 | n |
| 143099 | IIEES SC | MAHB | Z | 120 | 1 | 2019-06-14 04:22:41 | 2019-06-16 08:50:00 | n |
| 143100 | IIEES SC | SRSL | Z | 140 | 1 | 2019-06-14 04:22:43 | 2019-06-16 08:50:00 | n |
| 143101 | IIEES SC | KGS1 | Z | 140 | 1 | 2019-06-14 04:22:12 | 2019-06-16 08:50:00 | n |
| 143102 | IIEES SC | ILBA | Z | 84 | 1 | 2019-06-14 04:22:43 | 2019-06-16 08:50:00 | n |
| 143103 | IIEES SC | AZR | Z | 240 | 1 | 2019-06-14 04:22:51 | 2019-06-16 08:50:00 | n |
| 143104 | IIEES SC | GTMR | Z | 200 | 1 | 2019-06-14 04:22:58 | 2019-06-16 08:50:00 | n |
| 143105 | IIEES SC | GLO | Z | 120 | 1 | 2019-06-14 04:23:22 | 2019-06-16 08:50:00 | n |
| 143106 | IIEES SC | YZKH | Z | 17 | 1 | 2019-06-14 04:24:33 | 2019-06-16 08:50:00 | n |
| 143107 | IIEES SC | TABS | Z | 23 | 1 | 2019-06-14 04:25:10 | 2019-06-16 08:50:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | SNGE | Z | IP | I | 2019-06-14 04:21:27 | -1.3 | y | 155 | 244 | |
| IIEES SC | GIDE | Z | IP | I | 2019-06-14 04:21:29 | -0.6 | y | 166 | 34 | |
| IIEES SC | ASAO | Z | IP | I | 2019-06-14 04:21:29 | -0.6 | y | 166 | 142 | |
| IIEES SC | CHTH | Z | IP | I | 2019-06-14 04:21:35 | -0.7 | y | 200 | 84 | |
| IIEES SC | KHMZ | Z | IP | I | 2019-06-14 04:21:40 | -0.2 | y | 244 | 156 | |
| IIEES SC | GHVR | Z | IP | I | 2019-06-14 04:21:42 | 0.2 | y | 255 | 123 | |
| IIEES SC | DAMV | Z | IP | I | 2019-06-14 04:21:47 | 1.2 | y | 278 | 92 | |
| IIEES SC | MAHB | Z | IP | I | 2019-06-14 04:21:49 | 0.2 | y | 311 | 292 | |
| IIEES SC | SRSL | Z | IP | I | 2019-06-14 04:21:51 | 1 | y | 322 | 280 | |
| IIEES SC | KGS1 | Z | IP | I | 2019-06-14 04:21:54 | 1.9 | y | 333 | 246 | |
| IIEES SC | ILBA | Z | IP | I | 2019-06-14 04:21:52 | -0.4 | y | 333 | 227 | |
| IIEES SC | AZR | N | IP | I | 2019-06-14 04:21:53 | -0.4 | y | 344 | 310 | |
| IIEES SC | GTMR | Z | IP | I | 2019-06-14 04:21:55 | -0.1 | y | 355 | 177 | |
| IIEES SC | GLO | Z | IP | I | 2019-06-14 04:22:08 | 0.9 | y | 455 | 79 | |
| IIEES SC | YZKH | Z | IP | I | 2019-06-14 04:22:30 | -0.7 | y | 644 | 125 | |
| IIEES SC | TABS | Z | IP | I | 2019-06-14 04:22:48 | -0.9 | y | 789 | 107 | |
| IIEES SC | SNGE | 421 | 2019-06-14 04:21:47 | y | 155 | 244 | ||||
| IIEES SC | GIDE | 421 | 2019-06-14 04:21:59 | y | 166 | 34 | ||||
| IIEES SC | ASAO | 421 | 2019-06-14 04:21:50 | y | 166 | 142 | ||||
| IIEES SC | CHTH | 422 | 2019-06-14 04:22:03 | y | 200 | 84 | ||||
| IIEES SC | KHMZ | 422 | 2019-06-14 04:22:13 | y | 244 | 156 | ||||
| IIEES SC | GHVR | 422 | 2019-06-14 04:22:34 | y | 255 | 123 | ||||
| IIEES SC | DAMV | 422 | 2019-06-14 04:22:59 | y | 278 | 92 | ||||
| IIEES SC | MAHB | 422 | 2019-06-14 04:22:40 | y | 311 | 292 | ||||
| IIEES SC | SRSL | 422 | 2019-06-14 04:22:41 | y | 322 | 280 | ||||
| IIEES SC | KGS1 | 422 | 2019-06-14 04:22:52 | y | 333 | 246 | ||||
| IIEES SC | ILBA | 423 | 2019-06-14 04:23:10 | y | 333 | 227 | ||||
| IIEES SC | AZR | 422 | 2019-06-14 04:22:55 | y | 344 | 310 | ||||
| IIEES SC | GTMR | 422 | 2019-06-14 04:22:49 | y | 355 | 177 | ||||
| IIEES SC | GLO | 423 | 2019-06-14 04:23:32 | y | 455 | 79 | ||||
| IIEES SC | YZKH | 424 | 2019-06-14 04:24:38 | y | 644 | 125 | ||||
| IIEES SC | TABS | 425 | 2019-06-14 04:25:12 | y | 789 | 107 |
