Magnitude |
3.4 |
| Date & Time (UTC) | 2019-06-19 21:50:25.5 |
| Date & Time (Local) | 1398/3/30 02:20:25.5 |
| Location | Lat:30.59 Lon: 51.03 |
| Region | Kohkiluieh va boyerahmad Province, 35 km North-East of Dogonbadan |
Nearest Cities |
|
| 16 km North of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 29 km North West of Basht, Kohkiluieh va boyerahmad Province | |
| 32 km West of Sepidar, Kohkiluieh va boyerahmad Province | |
| 34 km South West of Chitab, Kohkiluieh va boyerahmad Province | |
| 35 km North East of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| Depth | 14 km |
| Agency | |

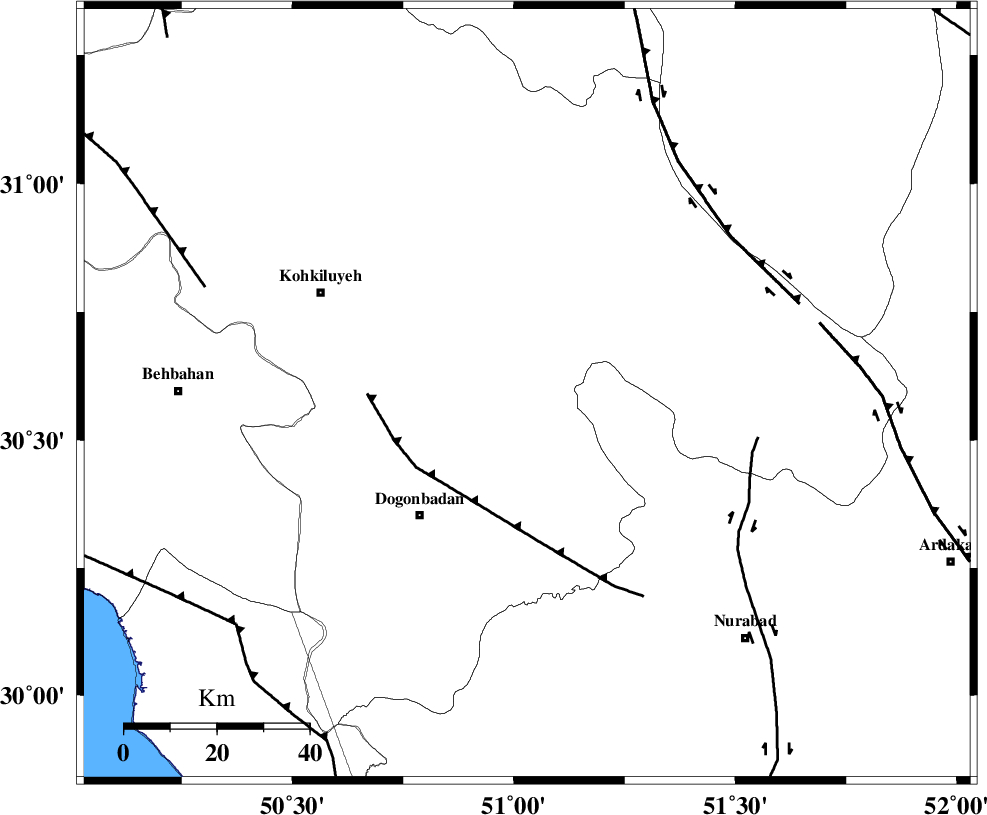

Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 26 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 50 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 56 km | |
| Number of Phases | 13 |
| RMS | 0.8 |
| Number of Stations | 7 |
| Error in Latitude | 6 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 143243 | IIEES SC | KLNJ | Z | 1100 | 1 | 2019-06-19 21:50:53 | 2019-06-22 03:35:00 | n |
| 143244 | IIEES SC | GTMR | Z | 230 | 1 | 2019-06-19 21:51:54 | 2019-06-22 03:35:00 | n |
| 143245 | IIEES SC | GHIR | Z | 32 | 1 | 2019-06-19 21:52:12 | 2019-06-22 03:35:00 | n |
| 143246 | IIEES SC | KHMZ | Z | 36 | 1 | 2019-06-19 21:52:33 | 2019-06-22 03:35:00 | n |
| 143247 | IIEES SC | YZKH | Z | 32 | 1 | 2019-06-19 21:52:36 | 2019-06-22 03:35:00 | n |
| 143248 | IIEES SC | ASAO | Z | 38 | 1 | 2019-06-19 21:53:00 | 2019-06-22 03:35:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KLNJ | Z | IP | I | 2019-06-19 21:50:35 | -2.8 | y | 66 | 49 | |
| IIEES SC | GTMR | N | IS | I | 2019-06-19 21:51:38 | -0.3 | y | 278 | 319 | |
| IIEES SC | GTMR | Z | IP | I | 2019-06-19 21:51:07 | -0.5 | y | 278 | 319 | |
| IIEES SC | GHIR | Z | IP | I | 2019-06-19 21:51:12 | -0.2 | y | 322 | 143 | |
| IIEES SC | KHMZ | Z | IP | I | 2019-06-19 21:51:19 | 1.1 | y | 366 | 344 | |
| IIEES SC | YZKH | Z | IP | I | 2019-06-19 21:51:22 | 0.7 | y | 389 | 60 | |
| IIEES SC | ASAO | Z | IP | I | 2019-06-19 21:51:29 | 0.6 | y | 444 | 348 | |
| IIEES SC | KLNJ | 2150 | 2019-06-19 21:50:50 | y | 66 | 49 | ||||
| IIEES SC | GTMR | 2151 | 2019-06-19 21:51:55 | y | 278 | 319 | ||||
| IIEES SC | GHIR | 2152 | 2019-06-19 21:52:48 | y | 322 | 143 | ||||
| IIEES SC | KHMZ | 2152 | 2019-06-19 21:52:19 | y | 366 | 344 | ||||
| IIEES SC | YZKH | 2152 | 2019-06-19 21:52:26 | y | 389 | 60 | ||||
| IIEES SC | ASAO | 2152 | 2019-06-19 21:52:47 | y | 444 | 348 |
