Magnitude |
3.7 |
| Date & Time (UTC) | 2019-06-22 06:28:11.5 |
| Date & Time (Local) | 1398/4/1 10:58:11.5 |

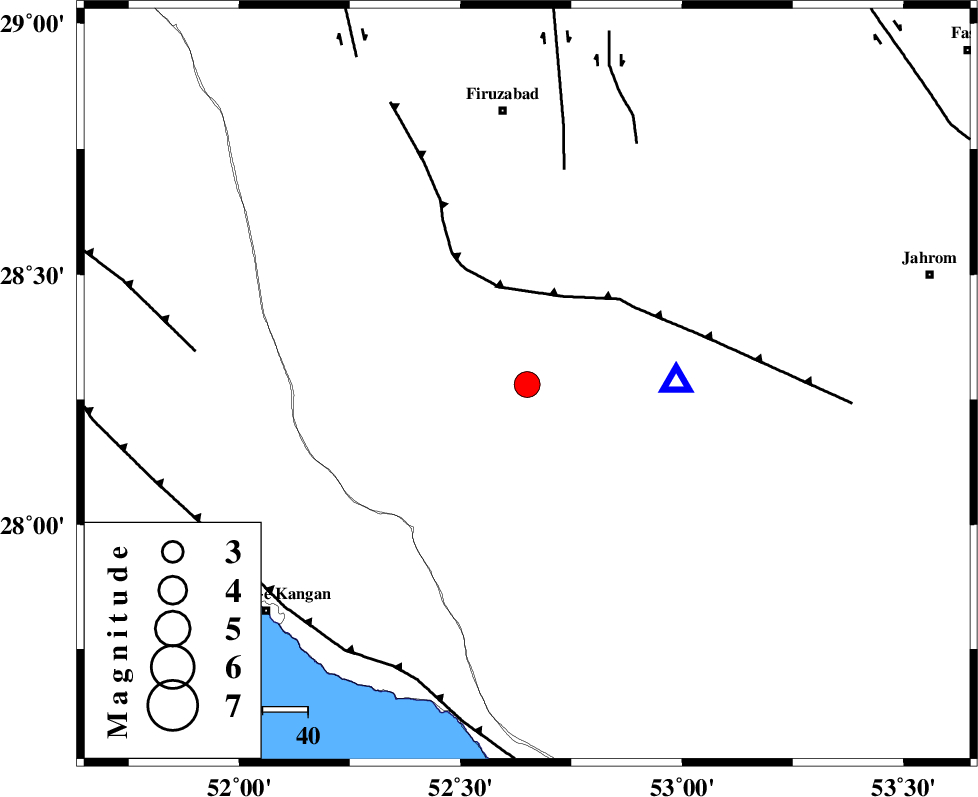

| Location | Lat:28.28 Lon: 52.65 |
| Region | Fars Province, 43 km South-West of Qir va Karzin |
Nearest Cities |
|
| 10 km of Hengam, Fars Province | |
| 32 km North of Garmesht, Fars Province | |
| 38 km North East of Dolatabad, Fars Province | |
| 41 km South East of Dahrom, Fars Province | |
| 43 km South West of Qir va Karzin, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 21 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 48 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 59 km | |
| Number of Phases | 12 |
| RMS | 0.7 |
| Number of Stations | 7 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 97 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 143310 | IIEES SC | GHIR | Z | 1300 | 1 | 2019-06-22 06:28:32 | 2019-06-23 07:51:00 | n |
| 143311 | IIEES SC | KLNJ | Z | 57 | 1 | 2019-06-22 06:30:03 | 2019-06-23 07:51:00 | n |
| 143312 | IIEES SC | YZKH | Z | 11 | 1 | 2019-06-22 06:31:08 | 2019-06-23 07:51:00 | n |
| 143313 | IIEES SC | NASN | Z | 7.8 | 1 | 2019-06-22 06:31:01 | 2019-06-23 07:51:00 | n |
| 143314 | IIEES SC | GTMR | Z | 18 | 1 | 2019-06-22 06:29:53 | 2019-06-23 07:51:00 | n |
| 143315 | IIEES SC | GTMR | Z | 8.1 | 0.94 | 2019-06-22 06:29:59 | 2019-06-23 07:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | GHIR | N | IS | I | 2019-06-22 06:28:23 | 0.2 | y | 33 | 89 | |
| IIEES SC | GHIR | Z | IP | I | 2019-06-22 06:28:17 | -0.2 | y | 33 | 89 | |
| IIEES SC | KLNJ | E | IS | I | 2019-06-22 06:29:34 | -0.2 | y | 322 | 341 | |
| IIEES SC | KLNJ | Z | IP | I | 2019-06-22 06:28:59 | 1.2 | y | 322 | 341 | |
| IIEES SC | YZKH | Z | IP | I | 2019-06-22 06:29:17 | -2.3 | y | 489 | 22 | |
| IIEES SC | NASN | Z | IP | I | 2019-06-22 06:29:22 | 0.7 | y | 500 | 2 | |
| IIEES SC | GTMR | Z | IP | I | 2019-06-22 06:29:29 | -1.1 | y | 578 | 324 | |
| IIEES SC | GHIR | 628 | 2019-06-22 06:28:27 | y | 33 | 89 | ||||
| IIEES SC | KLNJ | 629 | 2019-06-22 06:29:51 | y | 322 | 341 | ||||
| IIEES SC | YZKH | 629 | 2019-06-22 06:29:50 | y | 489 | 22 | ||||
| IIEES SC | NASN | 630 | 2019-06-22 06:30:21 | y | 500 | 2 | ||||
| IIEES SC | GTMR | 631 | 2019-06-22 06:31:04 | y | 578 | 324 |
