Magnitude |
3.2 |
| Date & Time (UTC) | 2019-07-01 09:43:42.6 |
| Date & Time (Local) | 1398/4/10 14:13:42.6 |

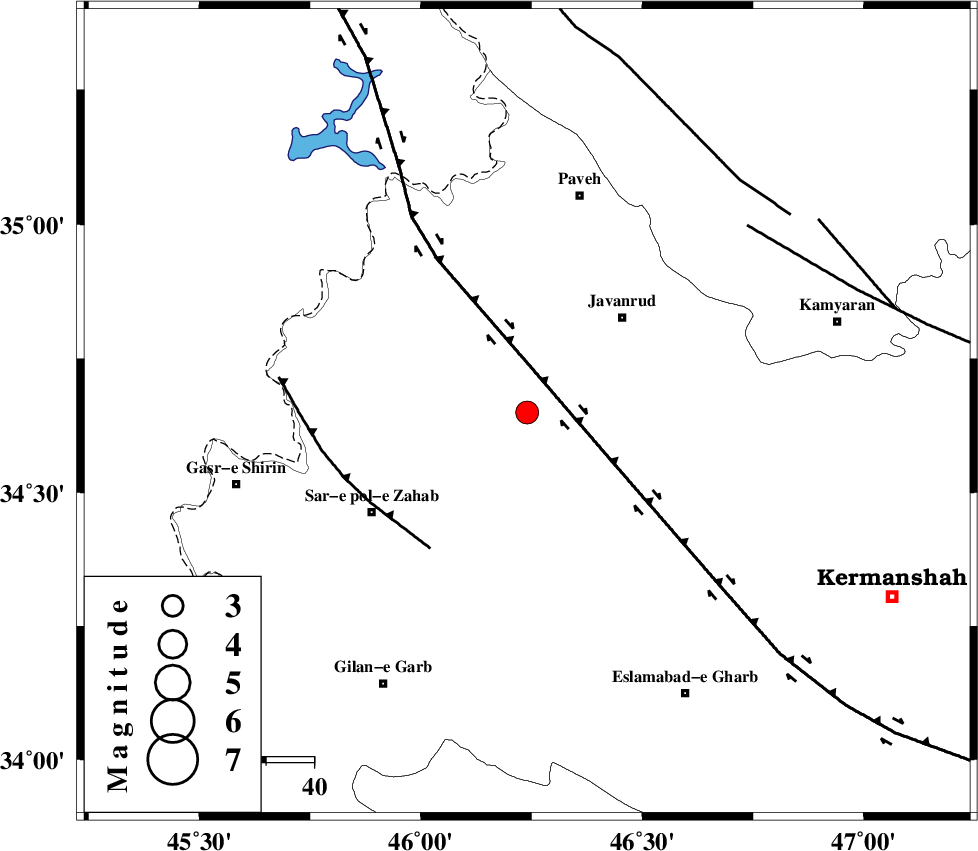

| Location | Lat:34.65 Lon: 46.24 |
| Region | Kermanshah Province, 28 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Mirabad, Kermanshah Province | |
| 11 km of Qolqoleh, Kermanshah Province | |
| 18 km North of Zavleh olia, Kermanshah Province | |
| 21 km West of Dolatabad, Kermanshah Province | |
| 22 km South of Shervineh, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 35 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 60 km | |
| Number of Phases | 14 |
| RMS | 1.1 |
| Number of Stations | 7 |
| Error in Latitude | 0 km |
| Error in Longitude | 0 km |
| Error in Depth | 25 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 143575 | IIEES SC | KGS1 | Z | 1300 | 1 | 2019-07-01 09:44:06 | 2019-07-02 08:18:00 | n |
| 143576 | IIEES SC | SNGE | Z | 270 | 1 | 2019-07-01 09:44:14 | 2019-07-02 08:18:00 | n |
| 143577 | IIEES SC | ILBA | Z | 230 | 1 | 2019-07-01 09:44:23 | 2019-07-02 08:18:00 | n |
| 143578 | IIEES SC | SRSL | Z | 260 | 1 | 2019-07-01 09:44:41 | 2019-07-02 08:18:00 | n |
| 143579 | IIEES SC | MAHB | Z | 180 | 1 | 2019-07-01 09:44:54 | 2019-07-02 08:18:00 | n |
| 143580 | IIEES SC | ASAO | Z | 51 | 1 | 2019-07-01 09:45:33 | 2019-07-02 08:18:00 | n |
| 143581 | IIEES SC | KHMZ | Z | 55 | 1 | 2019-07-01 09:45:31 | 2019-07-02 08:18:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KGS1 | Z | IP | I | 2019-07-01 09:43:54 | 0.5 | y | 66 | 255 | |
| IIEES SC | SNGE | Z | IP | I | 2019-07-01 09:43:59 | -2.5 | y | 111 | 64 | |
| IIEES SC | ILBA | Z | IP | I | 2019-07-01 09:44:01 | -0.7 | y | 111 | 182 | |
| IIEES SC | SRSL | Z | IP | I | 2019-07-01 09:44:12 | -0.7 | y | 189 | 337 | |
| IIEES SC | MAHB | Z | IP | I | 2019-07-01 09:44:20 | 0.3 | y | 244 | 348 | |
| IIEES SC | ASAO | Z | IP | I | 2019-07-01 09:44:36 | 2.2 | y | 344 | 92 | |
| IIEES SC | KHMZ | Z | IP | I | 2019-07-01 09:44:37 | 2.2 | y | 355 | 106 | |
| IIEES SC | KGS1 | 944 | 2019-07-01 09:44:05 | y | 66 | 255 | ||||
| IIEES SC | SNGE | 945 | 2019-07-01 09:45:04 | y | 111 | 64 | ||||
| IIEES SC | ILBA | 944 | 2019-07-01 09:44:23 | y | 111 | 182 | ||||
| IIEES SC | SRSL | 944 | 2019-07-01 09:44:40 | y | 189 | 337 | ||||
| IIEES SC | MAHB | 944 | 2019-07-01 09:44:59 | y | 244 | 348 | ||||
| IIEES SC | ASAO | 945 | 2019-07-01 09:45:34 | y | 344 | 92 | ||||
| IIEES SC | KHMZ | 945 | 2019-07-01 09:45:31 | y | 355 | 106 |
