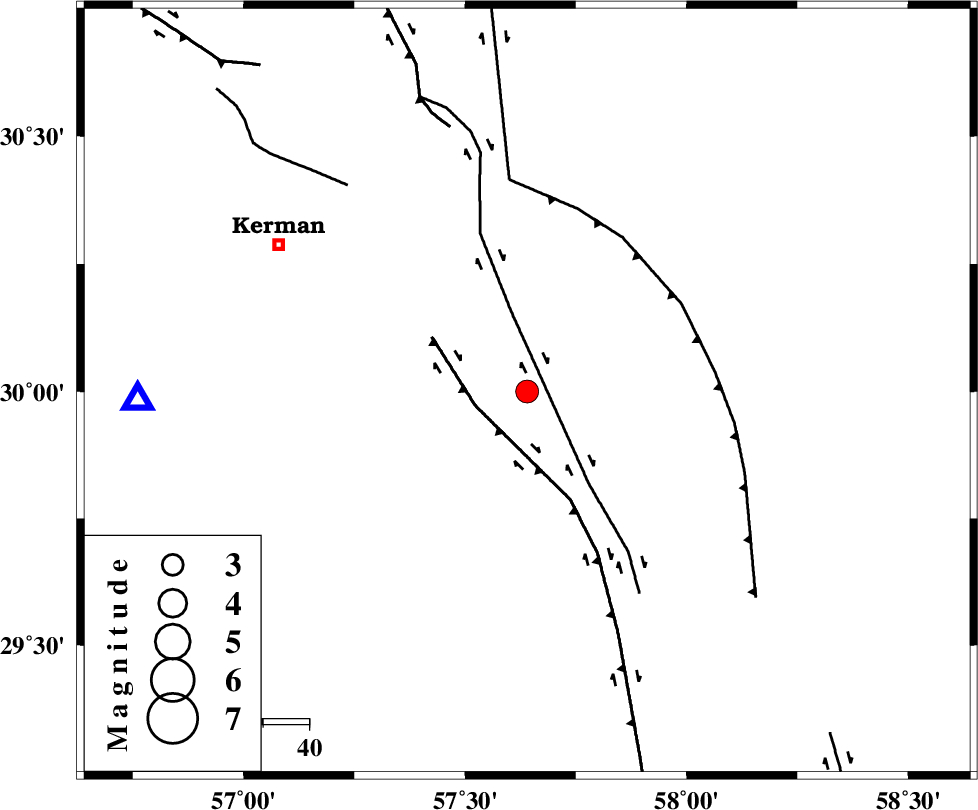

Map Title

Magnitude
 3.2
Date & Time (UTC) 2019-10-12 05:07:10.7
Date & Time (Local) 1398/7/20  08:37:10.7
Location Lat:30 Lon: 57.64
Region Kerman Province, 63 km South-East of Kerman
Nearest Cities
12 km South of Jushan, Kerman Province
20 km North West of Golbaft, Kerman Province
23 km South of Sirch, Kerman Province
34 km East of Mahan, Kerman Province
35 km East of Langar, Kerman Province
Depth 14 km
Agency
Faults within 150 km:
GOWK_F (Length: 152 km) , Distance to epicenter: 12 km
GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 18 km
SHAHDAD_F (Length: 108 km) , Distance to epicenter: 39 km
Number of Phases 7
RMS 0.5
Number of Stations 7
Error in Latitude 2 km
Error in Longitude 0 km
Error in Depth 6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
146566IIEES SCKRBRZ 59012019-10-12 05:07:382019-10-14 08:49:00n
146567IIEES SCBSRNZ 13012019-10-12 05:08:302019-10-14 08:49:00n
146568IIEES SCZHSFZ 5512019-10-12 05:08:382019-10-14 08:49:00n
146569IIEES SCBNDSZ 2712019-10-12 05:08:062019-10-14 08:49:00n
146570IIEES SCYZKHZ 2812019-10-12 05:08:182019-10-14 08:49:00n
146571IIEES SCTABSZ 4612019-10-12 05:09:142019-10-14 08:49:00n
146572IIEES SCSHRTZ 8.612019-10-12 05:08:312019-10-14 08:49:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRZ IP I2019-10-12 05:07:24-0.7y88268
IIEES SCBSRNZ IP I2019-10-12 05:07:50-0.1y25533
IIEES SCZHSFZ IP I2019-10-12 05:07:56-0.1y31198
IIEES SCBNDSZ IP I2019-10-12 05:07:580.3y322206
IIEES SCYZKHZ IP I2019-10-12 05:08:080.5y389312
IIEES SCTABSZ IP I2019-10-12 05:08:101.4y411353
IIEES SCSHRTZ IP I2019-10-12 05:08:16-0.6y47832
