Magnitude |
3.7 |
| Date & Time (UTC) | 2019-11-01 08:09:54.8 |
| Date & Time (Local) | 1398/8/10 11:39:54.8 |

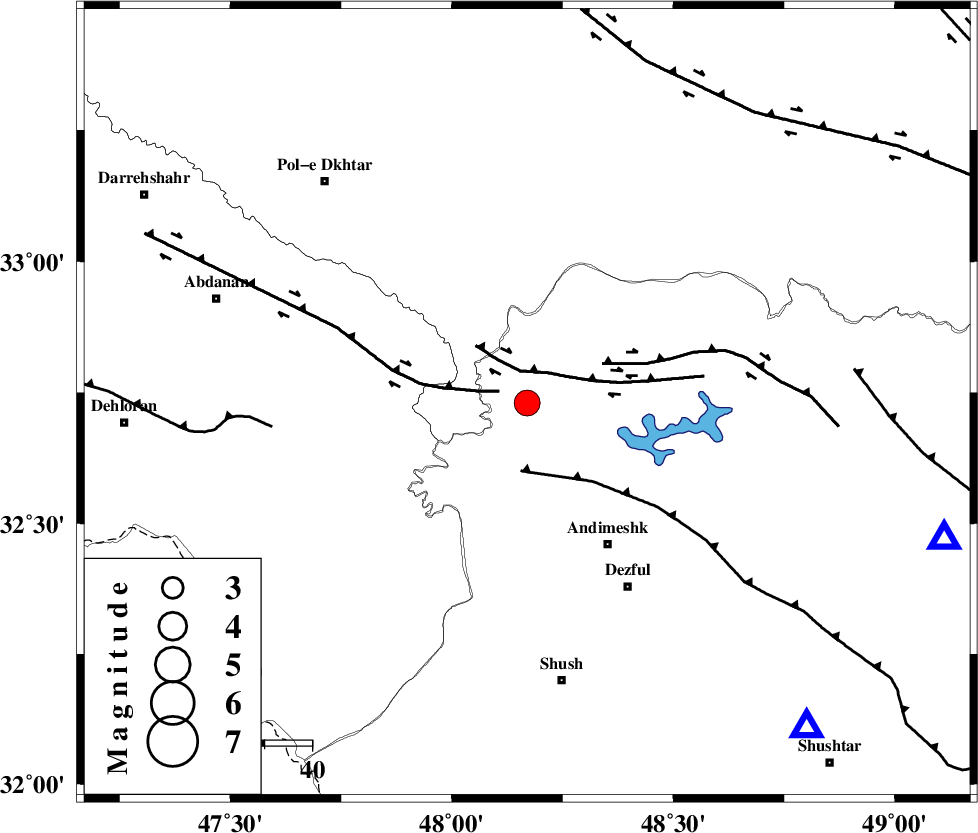

| Location | Lat:32.73 Lon: 48.17 |
| Region | Khoozestan Province, 35 km North-West of Andimeshk |
Nearest Cities |
|
| 7 km of Bidruyeh, Khoozestan Province | |
| 9 km North of Hoseinieh, Khoozestan Province | |
| 16 km West of Sorkhakan, Khoozestan Province | |
| 35 km North West of Andimeshk, Khoozestan Province | |
| 44 km North West of Dezful, Khoozestan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 6 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 7 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 14 km | |
| Number of Phases | 19 |
| RMS | 0.3 |
| Number of Stations | 20 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 147228 | IIEES SC | KHMZ | Z | 1600 | 1 | 2019-11-01 08:10:58 | 2019-11-01 11:56:00 | n |
| 147229 | IIEES SC | KGS1 | Z | 610 | 1 | 2019-11-01 08:11:33 | 2019-11-01 11:56:00 | n |
| 147230 | IIEES SC | GHVR | Z | 430 | 1 | 2019-11-01 08:11:41 | 2019-11-01 11:56:00 | n |
| 147231 | IIEES SC | QABG | Z | 36 | 1 | 2019-11-01 08:11:43 | 2019-11-01 11:56:00 | n |
| 147232 | IIEES SC | KLNJ | Z | 310 | 1 | 2019-11-01 08:11:59 | 2019-11-01 11:56:00 | n |
| 147233 | IIEES SC | THKV | Z | 98 | 1 | 2019-11-01 08:12:17 | 2019-11-01 11:56:00 | n |
| 147234 | IIEES SC | NASN | Z | 120 | 1 | 2019-11-01 08:11:08 | 2019-11-01 11:56:00 | n |
| 147235 | IIEES SC | ZNJK | Z | 52 | 1 | 2019-11-01 08:12:14 | 2019-11-01 11:56:00 | n |
| 147236 | IIEES SC | CHTH | Z | 120 | 1 | 2019-11-01 08:12:06 | 2019-11-01 11:56:00 | n |
| 147237 | IIEES SC | DAMV | Z | 110 | 1 | 2019-11-01 08:12:17 | 2019-11-01 11:56:00 | n |
| 147238 | IIEES SC | MAHB | Z | 76 | 1 | 2019-11-01 08:11:21 | 2019-11-01 11:56:00 | n |
| 147239 | IIEES SC | AZR | Z | 110 | 1 | 2019-11-01 08:13:01 | 2019-11-01 11:56:00 | n |
| 147240 | IIEES SC | YZKH | Z | 39 | 1 | 2019-11-01 08:11:38 | 2019-11-01 11:56:00 | n |
| 147241 | IIEES SC | ANJ | Z | 34 | 1 | 2019-11-01 08:11:24 | 2019-11-01 11:56:00 | n |
| 147242 | IIEES SC | GRMI | Z | 51 | 1 | 2019-11-01 08:11:28 | 2019-11-01 11:56:00 | n |
| 147243 | IIEES SC | SHRO | Z | 19 | 1 | 2019-11-01 08:14:04 | 2019-11-01 11:56:00 | n |
| 147244 | IIEES SC | TABS | Z | 28 | 1 | 2019-11-01 08:14:13 | 2019-11-01 11:56:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KHMZ | N | IS | I | 2019-11-01 08:10:53 | 0.2 | y | 200 | 56 | |
| IIEES SC | KHMZ | Z | IP | I | 2019-11-01 08:10:28 | 0.2 | y | 200 | 56 | |
| IIEES SC | KGS1 | N | IS | I | 2019-11-01 08:11:17 | 0 | y | 311 | 309 | |
| IIEES SC | KGS1 | Z | IP | I | 2019-11-01 08:10:42 | 0.1 | y | 311 | 309 | |
| IIEES SC | GHVR | Z | IP | I | 2019-11-01 08:10:47 | 1.5 | y | 344 | 56 | |
| IIEES SC | QABG | Z | IP | I | 2019-11-01 08:10:47 | 0 | y | 355 | 21 | |
| IIEES SC | KLNJ | Z | IP | I | 2019-11-01 08:10:50 | 0.4 | y | 378 | 120 | |
| IIEES SC | THKV | Z | IP | I | 2019-11-01 08:10:57 | 0 | y | 433 | 35 | |
| IIEES SC | NASN | Z | IP | I | 2019-11-01 08:10:57 | -0.1 | y | 433 | 89 | |
| IIEES SC | ZNJK | Z | IP | I | 2019-11-01 08:10:58 | 0.1 | y | 444 | 6 | |
| IIEES SC | CHTH | Z | IP | I | 2019-11-01 08:10:59 | 0.5 | y | 444 | 38 | |
| IIEES SC | DAMV | Z | IP | I | 2019-11-01 08:11:02 | -0.2 | y | 478 | 47 | |
| IIEES SC | MAHB | Z | IP | I | 2019-11-01 08:11:05 | -0.2 | y | 500 | 333 | |
| IIEES SC | AZR | Z | IP | I | 2019-11-01 08:11:16 | 0.2 | y | 589 | 340 | |
| IIEES SC | YZKH | Z | IP | I | 2019-11-01 08:11:18 | -0.6 | y | 600 | 94 | |
| IIEES SC | ANJ | Z | IP | I | 2019-11-01 08:11:19 | -0.4 | y | 611 | 60 | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-01 08:11:27 | 0 | y | 678 | 358 | |
| IIEES SC | SHRO | Z | IP | I | 2019-11-01 08:11:43 | -0.3 | y | 811 | 63 | |
| IIEES SC | TABS | N | IP | I | 2019-11-01 08:11:46 | -1 | y | 845 | 83 |
