Magnitude |
4.1 |
| Date & Time (UTC) | 2020-01-12 03:01:46.1 |
| Date & Time (Local) | 1398/10/22 06:31:46.1 |

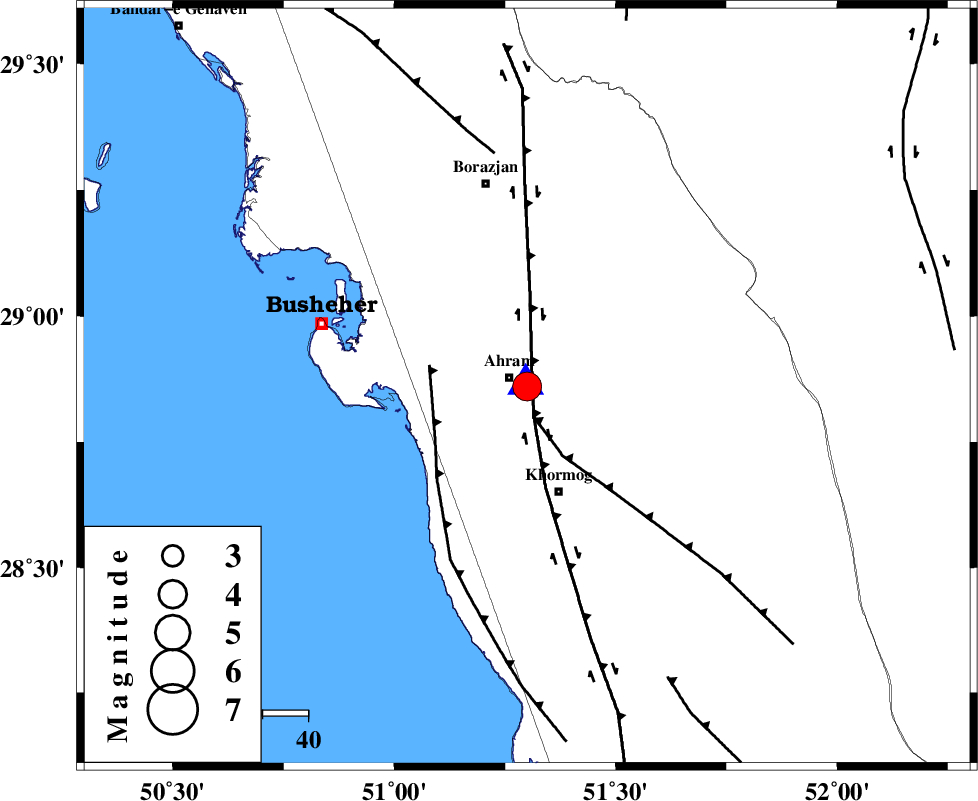

| Location | Lat:28.86 Lon: 51.3 |
| Region | Bushehr Province, 4 km of Ahram |
Nearest Cities |
|
| 4 km of Ahram, Bushehr Province | |
| 9 km of Bazuei, Bushehr Province | |
| 18 km West of Kalameh, Bushehr Province | |
| 24 km North of Khormog, Bushehr Province | |
| 25 km North East of Delvar, Bushehr Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 4 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 7 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 22 km | |
| Number of Phases | 19 |
| RMS | 0.3 |
| Number of Stations | 15 |
| Error in Latitude | 2 km |
| Error in Longitude | 0 km |
| Error in Depth | 1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 150993 | IIEES SC | AHRM | Z | 95000 | 1 | 2020-01-12 03:01:50 | 2020-01-13 11:34:00 | n |
| 150994 | IIEES SC | GTMR | Z | 200 | 1 | 2020-01-12 03:04:28 | 2020-01-13 11:34:00 | n |
| 150995 | IIEES SC | NASN | Z | 92 | 1 | 2020-01-12 03:04:11 | 2020-01-13 11:34:00 | n |
| 150996 | IIEES SC | YZKH | Z | 54 | 1 | 2020-01-12 03:04:30 | 2020-01-13 11:34:00 | n |
| 150997 | IIEES SC | KHMZ | Z | 48 | 1 | 2020-01-12 03:04:30 | 2020-01-13 11:34:00 | n |
| 150998 | IIEES SC | KHMZ | Z | 21 | 0.53 | 2020-01-12 03:03:13 | 2020-01-13 11:34:00 | n |
| 150999 | IIEES SC | ASAO | Z | 59 | 1 | 2020-01-12 03:04:56 | 2020-01-13 11:34:00 | n |
| 151000 | IIEES SC | ASAO | Z | 34 | 0.83 | 2020-01-12 03:03:17 | 2020-01-13 11:34:00 | n |
| 151001 | IIEES SC | DAMV | Z | 3.8 | 1 | 2020-01-12 03:04:34 | 2020-01-13 11:34:00 | n |
| 151002 | IIEES SC | DAMV | Z | 120 | 0.62 | 2020-01-12 03:03:28 | 2020-01-13 11:34:00 | n |
| 151003 | IIEES SC | TABS | Z | 32 | 1 | 2020-01-12 03:05:56 | 2020-01-13 11:34:00 | n |
| 151004 | IIEES SC | TABS | Z | 11 | 0.98 | 2020-01-12 03:03:58 | 2020-01-13 11:34:00 | n |
| 151005 | IIEES SC | CHTH | Z | 19 | 1 | 2020-01-12 03:05:55 | 2020-01-13 11:34:00 | n |
| 151006 | IIEES SC | CHTH | Z | 11 | 0.82 | 2020-01-12 03:03:29 | 2020-01-13 11:34:00 | n |
| 151007 | IIEES SC | GLO | Z | 30 | 1 | 2020-01-12 03:05:02 | 2020-01-13 11:34:00 | n |
| 151008 | IIEES SC | GLO | Z | 47 | 0.73 | 2020-01-12 03:03:46 | 2020-01-13 11:34:00 | n |
| 151009 | IIEES SC | SHRO | Z | 7 | 0.71 | 2020-01-12 03:03:55 | 2020-01-13 11:34:00 | n |
| 151010 | IIEES SC | MAHB | Z | 53 | 0.58 | 2020-01-12 03:04:01 | 2020-01-13 11:34:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | AHRM | Z | IP | I | 2020-01-12 03:01:46 | -1 | y | 0 | 350 | |
| IIEES SC | KLNJ | Z | IP | I | 2020-01-12 03:02:24 | 0.2 | y | 244 | 7 | |
| IIEES SC | LMD1 | Z | IP | I | 2020-01-12 03:02:25 | 0 | y | 244 | 133 | |
| IIEES SC | AMIS | Z | IP | I | 2020-01-12 03:02:40 | 0.6 | y | 366 | 328 | |
| IIEES SC | GTMR | Z | IP | I | 2020-01-12 03:02:50 | -0.2 | y | 455 | 332 | |
| IIEES SC | NASN | Z | IP | I | 2020-01-12 03:02:51 | -0.2 | y | 455 | 18 | |
| IIEES SC | YZKH | Z | IP | I | 2020-01-12 03:02:57 | 0.2 | y | 500 | 39 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-01-12 03:03:03 | 0.1 | y | 556 | 347 | |
| IIEES SC | ASAO | Z | IP | I | 2020-01-12 03:03:14 | 0.2 | y | 644 | 349 | |
| IIEES SC | DAMV | Z | IP | I | 2020-01-12 03:03:27 | -0.8 | y | 756 | 5 | |
| IIEES SC | TABS | Z | IP | I | 2020-01-12 03:03:29 | -0.3 | y | 767 | 46 | |
| IIEES SC | CHTH | Z | IP | I | 2020-01-12 03:03:30 | -1.1 | y | 778 | 359 | |
| IIEES SC | GLO | Z | IP | I | 2020-01-12 03:03:43 | 0.1 | y | 878 | 16 | |
| IIEES SC | SHRO | Z | IP | I | 2020-01-12 03:03:46 | -0.9 | y | 911 | 29 | |
| IIEES SC | MAHB | Z | IP | I | 2020-01-12 03:03:59 | -1.3 | y | 1023 | 329 | |
| IIEES SC | KHMZ | Z | IVmB_BB | 2020-01-12 03:03:54 | y | 1 | 556 | 347 | ||
| IIEES SC | DAMV | Z | IVmB_BB | 2020-01-12 03:03:28 | y | 1 | 756 | 5 | ||
| IIEES SC | GLO | Z | IVmB_BB | 2020-01-12 03:03:46 | y | 1 | 878 | 16 | ||
| IIEES SC | SHRO | Z | IVmB_BB | 2020-01-12 03:04:16 | y | 1 | 911 | 29 |
